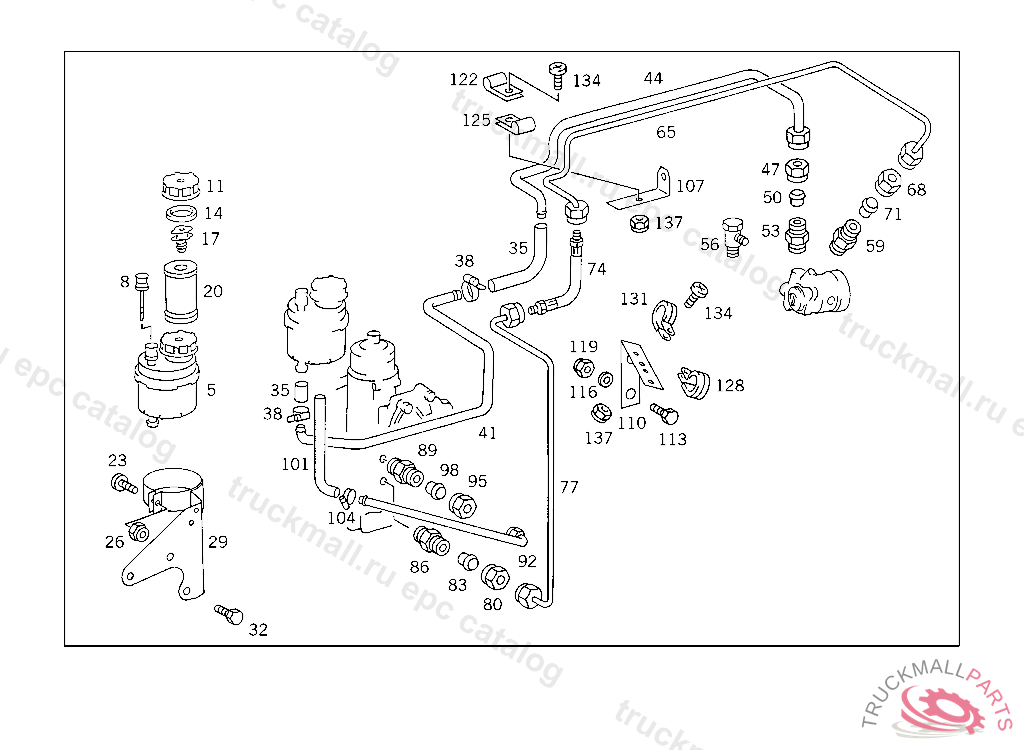

Поз.
Артикул
Описание
5
TANK , Replaced By: A0004666202
5
TANK OIL
8
OIL DIPSTICK , Replaced By: A0004660867
8
OIL DIPSTICK
11
FILLER CAP , Replaced By: A0004661268
11
FILLER CAP
14
SEAL RING
17
BRACKET
20
FILTER
20
FILTER
23
SCREW BRACKET TO CROSS MEMBER M 6X35
26
NUT , Replaced By: N913004006001
26
NUT PUMP TO BRACKET
29
BRACKET OIL TANK,5 593345
29
BRACKET OIL TANK,5 593345
32
SCREW CENTRAL LOCK TO CAB M 10X16
32
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
35
HOSE RETURN, FROM STEERING TO OIL TANK, ORDER BY THE METER
35
HOSE RETURN, FROM STEERING TO OIL TANK, ORDER BY THE METER
38
CLAMP , Replaced By: N000000000667
38
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
41
LINE FROM OIL TANK TO HOSE
41
LINE FROM OIL TANK TO HOSE
44
LINE , Replaced By: A0004291601
44
LINE (SUCTION LINE),FROM HOSE TO OIL PUMP
44
LINE (SUCTION LINE),FROM HOSE TO OIL PUMP
47
UNION NUT LINE CONNECTION, Replaced By: N000000006243
47
NUT LINE CONNECTION
50
GLAND , Replaced By: A0019901267
50
SEAL CONE LINE CONNECTION
53
SCREW-IN FITTING SUCTION LINE TO OIL PUMP
56
ELBOW FITTING SUCTION LINE TO OIL PUMP
59
SCREW-IN FITTING DELIVERY LINE TO PUMP
59
FITTING DELIVERY LINE TO PUMP
65
TUBE FROM HIGH PRESSURE HOSE TO STEERING
68
UNION NUT LINE CONNECTION, Replaced By: N000000006239
68
UNION NUT LINE CONNECTION
71
GLAND , Replaced By: A0019901967
71
SEAL CONE LINE CONNECTION
74
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
74
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
74
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
74
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
74
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
74
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
74
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
74
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
74
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
77
TUBE FROM HIGH PRESSURE HOSE TO STEERING
80
UNION NUT LINE CONNECTION, Replaced By: N000000006239
80
UNION NUT LINE CONNECTION
83
GLAND , Replaced By: A0019901967
83
SEAL CONE LINE CONNECTION
86
SCREW-IN FITTING DELIVERY LINE TO PUMP
86
FITTING DELIVERY LINE TO PUMP
89
SCREW-IN FITTING RETURN, FROM STEERING TO OIL TANK
92
LINE RETURN, FROM STEERING TO OIL TANK
92
LINE RETURN, FROM STEERING TO OIL TANK
95
UNION NUT LINE CONNECTION
98
GLAND LINE CONNECTION
101
HOSE DELIVERY LINE TO STEERING
104
CLAMP HOSE TO FITTING AND TO OIL TANK
104
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
107
BRACKET , Replaced By: A6205244040
107
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
107
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
110
BRACKET DELIVERY AND SUCTION LINES TO FRAME
110
BRACKET DELIVERY AND SUCTION LINES TO FRAME
113
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
113
SCREW , Replaced By: N308676012026
113
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
116
WASHER
119
NUT SUPPORT TO SIDE MEMBER
122
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
122
CLAMP , Replaced By: A6739950001
122
CLAMP DELIVERY AND SUCTION LINES TO STEERING
125
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
128
CLAMP DELIVERY AND SUCTION LINES TO FRAME, Replaced By: N916016022203
128
CLAMP DELIVERY AND SUCTION LINES TO FRAME
131
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
134
SCREW , Replaced By: N000000001422
134
HEXALOBULAR BOLT CLAMP ON BRACKET M6X30
134
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
134
SCREW , Replaced By: N000000001146
134
SCREW CLAMP MOUNTING M 6X16
137
NUT , Replaced By: N913004006001
137
NUT PUMP TO BRACKET
999
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
999
SEAL RING VALVE TO VALVE,K 025179
999
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
WASHER COMPRESSED AIR LINE TO BRACKET
999
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
999
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
999
LINE FROM HIGH PRESSURE HOSE TO STEERING
999
LINE FROM HIGH PRESSURE HOSE TO STEERING
999
LINE FROM PUMP TO HIGH PRESSURE HOSE,K 016079
999
LINE FROM PUMP TO HIGH PRESSURE HOSE,5 499816
999
LINE FROM OIL TANK TO HOSE, Replaced By: A0004291601
999
BRACKET , Replaced By: A6564660040
999
PROTECTIVE CAP
