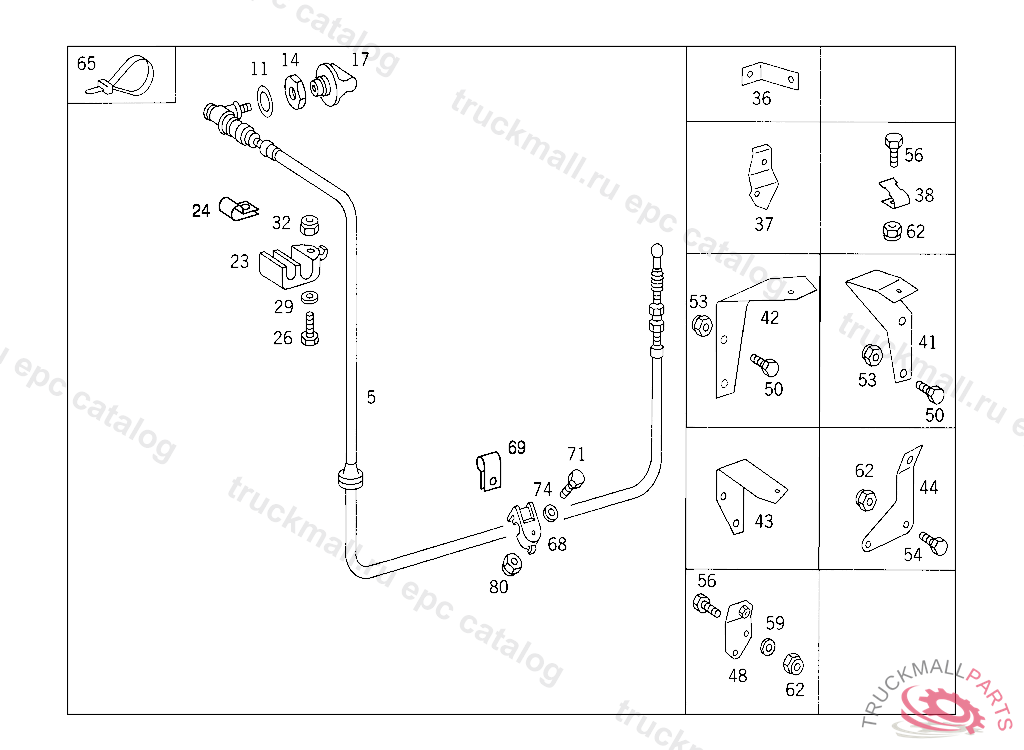

Поз.
Артикул
Описание
5
WIRE CABLE MANUAL CONTROL, REPAIR IMPOSSIBLE
5
WIRE CABLE MANUAL CONTROL, REPAIR IMPOSSIBLE
11
FITTED WASHER WIRE CABLE TO INSTRUMENT PANEL
14
NUT WIRE CABLE TO INSTRUMENT PANEL
17
KNOB IDLING ADJUSTMENT
23
CLAMPING PIECE IDLING ADJUSTMENT WIRE CABLE
24
CLAMP ,K 147121, Replaced By: N000000000319
24
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
26
SCREW , Replaced By: N000000001149
26
SCREW , Replaced By: A0029903712
26
HEXALOBULAR BOLT WIRE CABLE TO BRACKET
29
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
29
WASHER COMPRESSED AIR LINE TO BRACKET
32
NUT , Replaced By: N913004006001
32
NUT PUMP TO BRACKET
36
BRACKET WIRE CABLE TO AIR BAFFLE BRACKET
38
BRACKET WIRE CABLE TO FRAME SIDE MEMBER
43
BRACKET WIRE CABLE TO BRACKET
43
BRACKET , Replaced By: A6523011940
44
BRACKET , Replaced By: A6553010840
44
BRACKET WIRE CABLE TO STEERING OIL TANK BRACKET
44
BRACKET WIRE CABLE TO FRAME SIDE MEMBER
48
BRACKET WIRE CABLE TO HYDRAULIC LINE BRACKET
48
BRACKET WIRE CABLE TO STEERING OIL TANK BRACKET
50
SCREW END PIECE TO EXHAUST PIPE M 10X25
53
NUT , Replaced By: N910113010000
53
NUT STRAP TO BRACKET
54
SCREW , Replaced By: N910105006023
54
SCREW PUMP TO BRACKET
56
SCREW CENTRAL LOCK TO CAB M 10X16
56
SCREW LICENSE PLATE TO BRACKET
59
WASHER COMPRESSED AIR LINE TO BRACKET
59
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
62
NUT , Replaced By: N913004006001
62
NUT PUMP TO BRACKET
65
LOOM TIE LINE MOUNTING 280 MM
65
LOOM TIE LINE MOUNTING
68
CLAMPING PIECE IDLING ADJUSTMENT WIRE CABLE
69
CLAMP ,K 147121, Replaced By: N000000000319
69
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
71
SCREW , Replaced By: N000000001149
71
SCREW , Replaced By: A0029903712
71
HEXALOBULAR BOLT WIRE CABLE TO BRACKET
74
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
74
WASHER COMPRESSED AIR LINE TO BRACKET
80
NUT , Replaced By: N913004006001
80
NUT PUMP TO BRACKET
