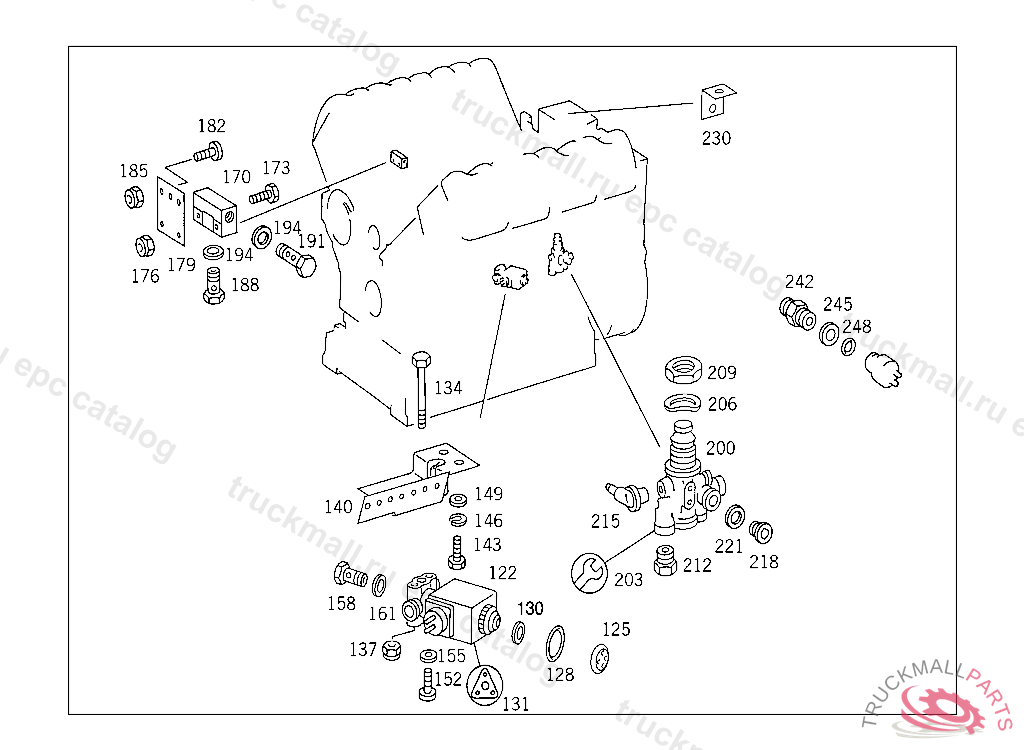

Поз.
Артикул
Описание
122
VALVE (3/2-WAY SOLENOID VALVE) EKS
122
VALVE , Replaced By: A0049975736
125
PROTECTIVE CAPWABCO
128
SEAL RINGWABCO
128
SEAL RINGBOSCH
130
SEAL RINGBOSCH
131
GASKET KITKNORR
134
SCREW VALVE TO BRACKET
134
SCREW VALVE TO BRACKET, Replaced By: N304014008002
137
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
137
NUT , Replaced By: N913004008001
137
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
140
BRACKET 3/2-WAY SOLENOID VALVE
140
BRACKET 3/2-WAY SOLENOID VALVE
140
BRACKET 3/2-WAY SOLENOID VALVE
143
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
143
SCREW , Replaced By: N304017008016
146
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
149
WASHER EXHAUST MUFFLER TO STRAP
149
WASHER , Replaced By: N000125008443
152
SCREW TO PLUG THE FREE CONNECTIONS
155
SEAL RINGBOSCH
158
HOLLOW SCREW HEATING CONNECTION
161
SEAL RING LINE CONNECTION
170
VALVE SHUTTLE VALVE, REPAIR IMPOSSIBLE
173
SCREW TWO-WAY VALVE TO BRACKET
176
NUT TWO-WAY VALVE TO BRACKET
179
BRACKET 3/2-WAY SOLENOID VALVE
182
SCREW CLAMP MOUNTING M 6X16
182
SCREW , Replaced By: N000000001146
185
NUT , Replaced By: N913004006001
185
NUT PUMP TO BRACKET
188
HOLLOW SCREW FUEL LINE TO FEED PUMP
188
HOLLOW SCREW , Replaced By: N915036010108
191
HOLLOW SCREW TWO-WAY VALVE,CONNECTIONS: "11,12"
194
SEAL RING FUEL LINE TO FEED PUMP
200
VALVE 3/2-WAY, EXHAUST BRAKE CONTROL BOSCH
200
VALVE 3/2-WAY, EXHAUST BRAKE CONTROL WABCO
203
REPAIR KIT 3/2-WAY VALVE BOSCH
203
REPAIR KIT 3/2-WAY VALVE WABCO
206
SPRING WASHER AT CAB FLOOR
209
NUT SUCTION LINE TO OIL PUMP
212
SCREW. UNION SCREW LINE CONNECTION
212
SCREW. UNION SCREW , Replaced By: A0009973734
215
BREATHER , Replaced By: A3933280065
215
PIPE SOCKET COMPRESSED AIR PIPING TO 3/2-WAY VALVE
218
SCREW PLUG , Replaced By: N000908012009
218
SCREW PLUG, FILLING. SCREW PLUG 3/2-WAY VALVE,CONNECTION: "10"
221
SEAL RING LINE CONNECTION
230
ANGLE LINE MOUNTING
999
SHIM 3/2-WAY SOLENOID VALVE
