Mercedes N304017008034 - Болт крепления

2638AK,2644A/AK,2653 AK,3538 K 659.344

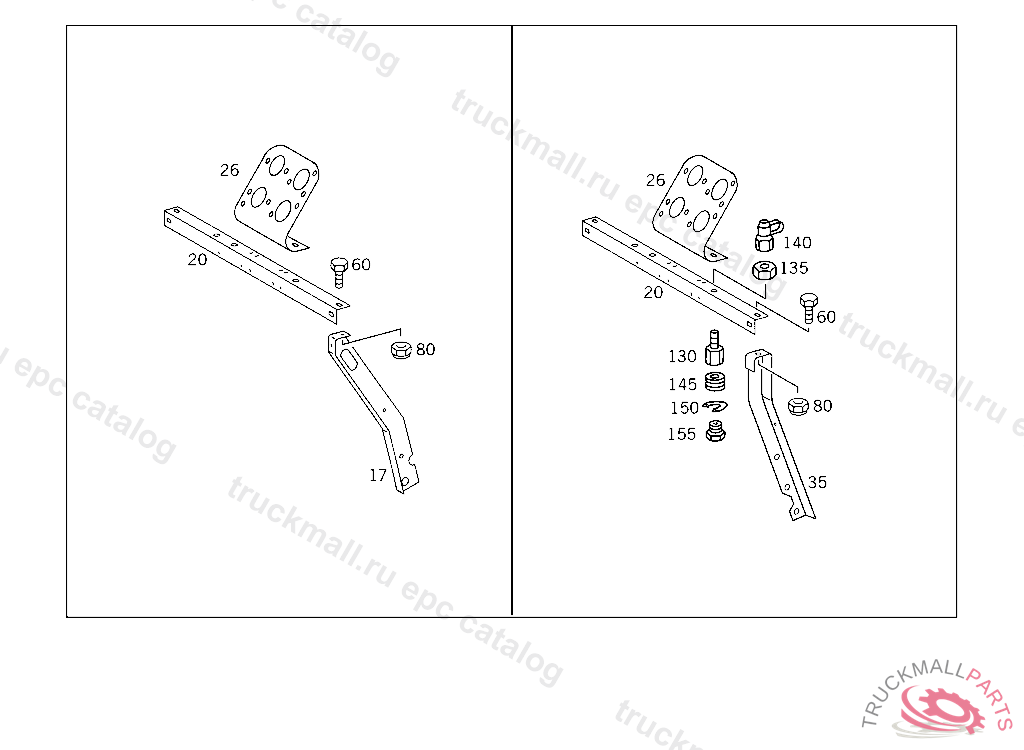

24 ENGINE SUSPENSION - 001 CAB MOUNTING IL.1

Поз.
Артикул
Описание
17
A6504320017
ANGLE SUPPORT,LEFT
17
A6504320117
ANGLE SUPPORT,RIGHT
20
A3874321016
SUPPORT TWO-CIRCUIT BRAKE LINE COUPLING
26
A6174321140
BRACKET TRAILER PLUG SOCKET
35
A6214320017
ANGLE LEFT
35
A6214320117
ANGLE RIGHT
60
N304017008034
SCREW BRACKET TO CROSS CONNECTION STRUT
60
N000933008153
SCREW , Replaced By: N304017008034
80
N913004008004
NUT , Replaced By: N913004008001
80
N913004008001
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
130
A0004296834
ADAPTER FITTING LINE CONNECTION TO ENGINE
135
A0004296834
ADAPTER FITTING LINE CONNECTION TO ENGINE
135
N080705018002
NUT BRACKET TO SIDE MEMBER
140
A0004319731
TEST CONNECTION
140
A0004313531
TEST CONNECTION BULKHEAD FITTING
145
A0009940147
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
150
A0009941448
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
155
A0009970934
SCREW. UNION SCREW LINE CONNECTION
