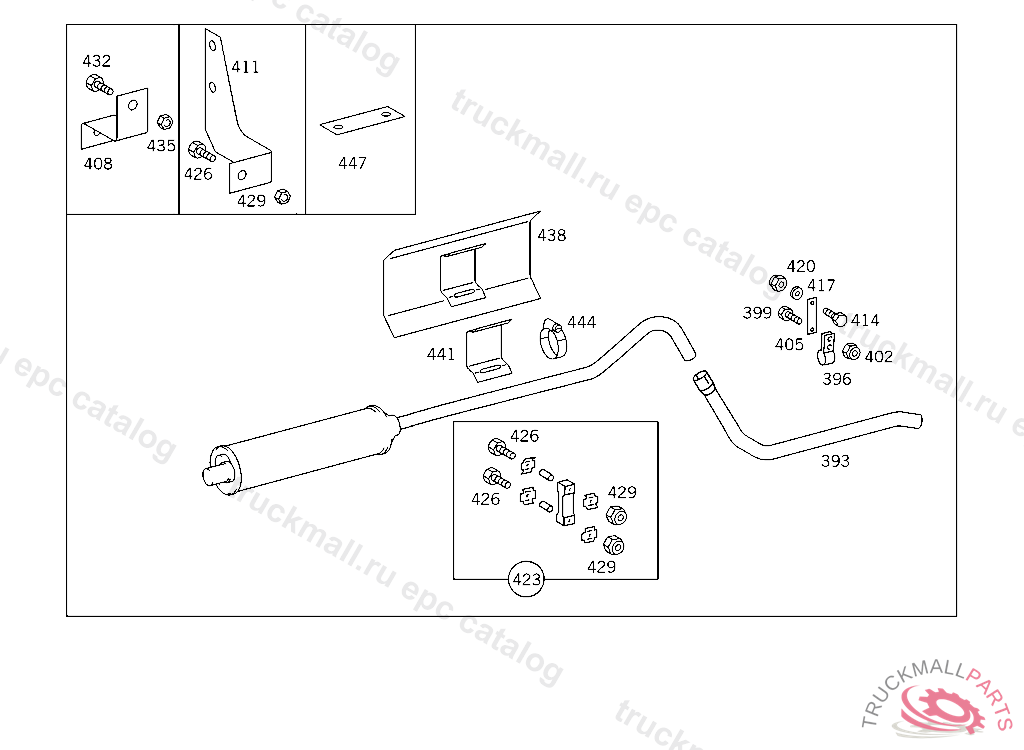

Поз.
Артикул
Описание
393
REAR EXHAUST PIPE REAR PART
396
CLAMP EXHAUST PIPE TO SUPPORT,D 250888
399
SCREW BRACKET TO EXHAUST PIPE BRACKET
402
NUT STRAP TO BRACKET
405
BRACKET EXHAUST PIPE SUSPENSION,5 743553-5 8000005 803730
408
BRACKET REAR EXHAUST PIPE,025123
411
BRACKET REAR EXHAUST PIPE,025123
414
SCREW CABLE HARNESS MOUNTING
417
WASHER EXHAUST MUFFLER TO STRAP
420
NUT STRAP TO BRACKET
423
SUSPENSION PROTECTIVE PLATE TO EXHAUST PIPE
426
SCREW AT SHIFT LEVER M 8 X 45,P 234011
429
NUT STRAP TO BRACKET
432
SCREW STRUT TO CROSS MEMBER M 10X25
435
NUT CROSS MEMBER TO SIDE MEMBERS
438
PROTECTIVE PLATE AT EXHAUST PIPE
441
BRACKET FRONT EXHAUST PIPE
444
CLAMP HOSE TO RETARDER 60-80X13 MM
444
CLAMP (DRY FILTER)
447
BRACKET REAR EXHAUST PIPE TO BRACKET
999
CLAMPING BRACKET
999
BRACKET
999
OIL FILLER NECK AT RADIATOR
999
ANGLE LEFT CONSOLE TO FRAME
999
ANGLE RIGHT CONSOLE TO FRAME
999
SCREW COVER TO BATTERY SUPPORT M 6X16
999
SCREW CLAMP TO EXHAUST PIPE AND TO FLEXIBLE METAL TUBE M 8X25
