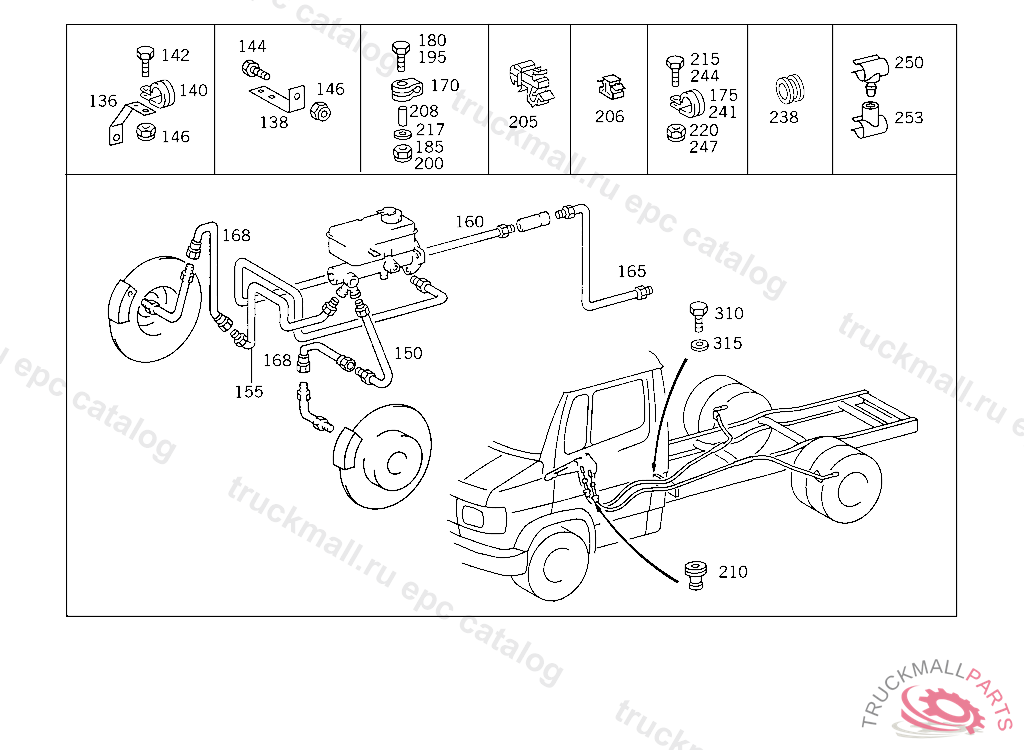

Поз.
Артикул
Описание
136
BRACKET FEED LINE AND RETURN LINE
138
BRACKET LINE MOUNTING,5 7245845 801938
140
CLAMP DELIVERY AND SUCTION LINES TO FRAME, Replaced By: N916016022203
142
SCREW , WITH DIESEL ENGINE
144
HEXAGON HEAD BOLT BRACKET TO BRACKET
146
NUT HEATING PIPE TO BRACKET
146
NUT CROSS MEMBER TO SIDE MEMBERS
150
LINE FROM ADAPTER FITTING TO DISTRIBUTOR,126.021 005796, 126.022,023 020032, 126.032,033 008371, 126.036,037 007212
150
LINE FROM HEIGHT CONTROL VALVE TO LEFT SPRING-LOAD ACCUMULATOR
150
LINE FROM BRAKE POWER REGULATOR TO LEFT FRONT WHEEL
155
LINE FROM DISTRIBUTOR TO REAR HEIGHT CONTROL VALVE
155
LINE FROM ADAPTER FITTING TO DISTRIBUTOR,126.021 005796, 126.022,023 020032, 126.032,033 008371, 126.036,037 007212
160
LINE FROM MASTER CYLINDER TO REAR HYDRAULIC UNIT, ONLY APPLICABLE TO ANTI-LOCK BRAKING SYSTEM (ABS)F039532 NOT FOR R.S.A.
160
LINE FROM BRAKE POWER REGULATOR TO ADAPTER FITTING
160
LINE FROM MASTER CYLINDER TO FRONT BRAKE PRESSURE REGULATOR
165
LINE FROM ADAPTER FITTING TO BRAKE HOSE, REAR RIGHT, TO BE ADAPTED DURING ASSEMBLY
165
LINE FROM VALVE TO CONNECTION FITTING 4590 MM
165
LINE , Replaced By: A1234209028
168
BRAKE HOSE FRONT WHEEL BRAKE
170
CLAMP BRAKE LINE TO SIDE MEMBER
175
CLAMP CABLE HARNESS MOUNTING
175
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
175
CLAMP ,K 147121, Replaced By: N000000000319
175
CLAMP , Replaced By: N916016010211
175
CLAMP , Replaced By: N000000001045
180
SCREW 3/2-WAY SOLENOID VALVE TO BRACKET
180
HEXAGON HEAD BOLT. SCREW STARTER SWITCH TO STEERING COLUMN JACKET TUBE
185
NUT HEATING PIPE TO BRACKET
195
SCREW LICENSE PLATE TO BRACKET
200
NUT HEATING PIPE TO BRACKET
205
BRACKET , Replaced By: A6884287440
206
BRACKET AT SIDE MEMBER
208
SPACER TUBE SWITCH TO ENGINE
210
GROMMET BATTERY CASE
215
SCREW STRUT TO CROSS MEMBER M 10X25
215
SCREW LICENSE PLATE TO BRACKET
217
WASHER , Replaced By: N009021006208
217
WASHER COMPRESSED AIR LINE TO BRACKET
220
NUT CROSS MEMBER TO SIDE MEMBERS
220
NUT HEATING PIPE TO BRACKET
238
GROMMET ELECTRIC CABLE THRU FRAME SIDE MEMBER
241
CLAMP SENSOR CABLE TO BRACKET
241
CLAMP LINE MOUNTING
241
CLAMP , Replaced By: N916016015202
244
SCREW LICENSE PLATE TO BRACKET
247
NUT HEATING PIPE TO BRACKET
250
CLAMP
253
CLAMP
253
BRACKET OIL LINES
253
CLAMP6/14-15 MM
253
CLAMP ELECTRIC CABLE TO BRAKE HOSE
253
CLAMP. EXTENDABLE SPACER BREATHER LINE
310
SCREW BRACKET TO CROSS CONNECTION STRUT
315
WASHER EXHAUST MUFFLER TO STRAP
999
CLAMPING BRACKET
999
BRACKET
999
OIL FILLER NECK AT RADIATOR
999
ANGLE LEFT CONSOLE TO FRAME
999
ANGLE RIGHT CONSOLE TO FRAME
999
SCREW COVER TO BATTERY SUPPORT M 6X16
999
SCREW CLAMP TO EXHAUST PIPE AND TO FLEXIBLE METAL TUBE M 8X25
