Mercedes N304017010043 - БОЛТ М10

814 D 670.312

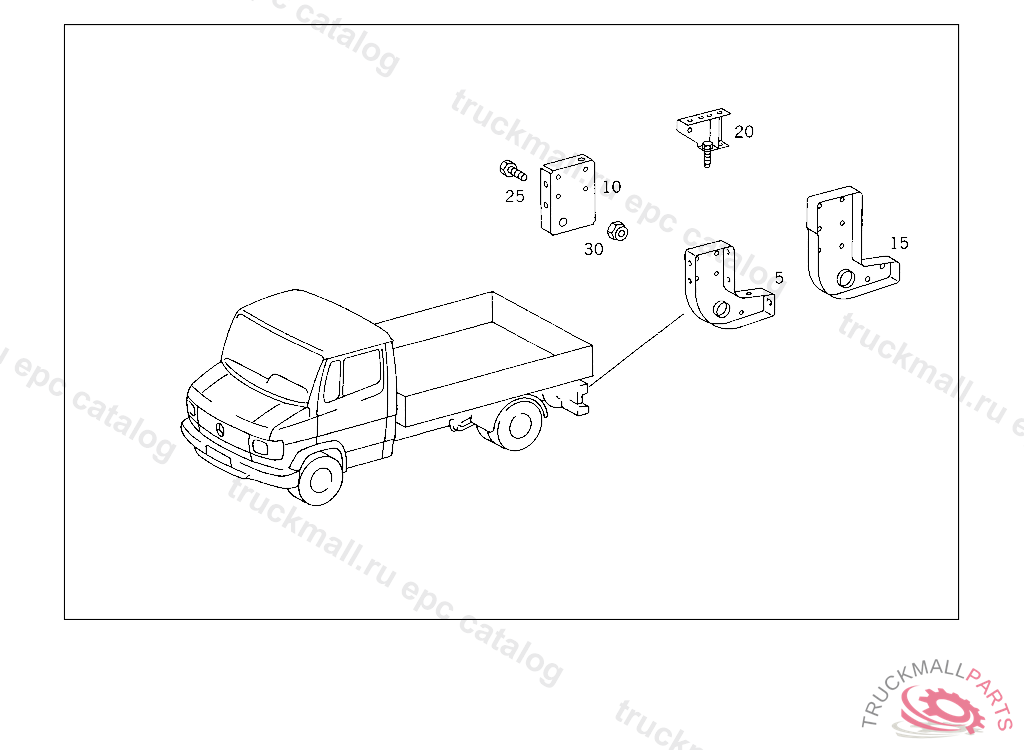

24 ENGINE SUSPENSION - 001 ENGINE REAR MOUNTING

Поз.
Артикул
Описание
5
A6685000327
SUPPORT OIL COOLER
5
A6685250339
BRACKET RIGHT, ONLY USED WITH UNDERRUN PROTECION
5
A6685000127
SUPPORT , Replaced By: A6685000327
5
A6685250239
BRACKET LEFT, TO BE ADAPTED DURING ASSEMBLY DELIVER ADDITIONALLY: 4X 305 990 04 40, 4X 668 990 00 90, WITH 15-MM-DIA. BORE
10
A6705250539
BRACKET LEFT
10
A6705250639
BRACKET RIGHT
15
A6705200133
SUPPORT RIGHT
15
A6705200033
SUPPORT LEFT
20
A6674000347
CONSOLE LEFT
20
A6674000447
CONSOLE RIGHT
25
N304017010043
SCREW BRACKET TO CONSOLE
25
N000933010219
SCREW , Replaced By: N304017010043
30
N913004010011
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
