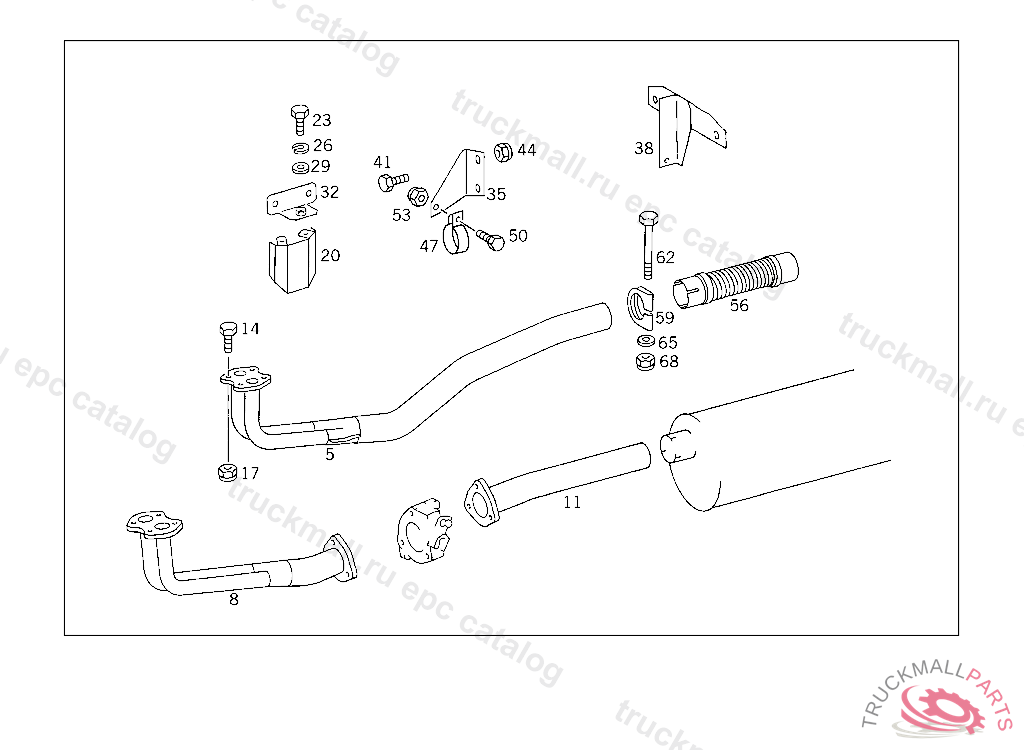

Поз.
Артикул
Описание
8
EXHAUST PIPE FRONT,FRONT PART,5 1635625 541030
8
EXHAUST PIPE FRONT,FRONT PART,5 541031N 817222
11
EXHAUST PIPE FRONT,REAR PART,5 1635625 337342
11
EXHAUST PIPE FRONT,REAR PART,5 3373435 541030
11
EXHAUST PIPE FRONT,REAR PART
14
SCREW BRACKET TO FRAME SIDE MEMBER
17
NUT EXHAUST PIPE TO SIDE MEMBER
20
PROTECTIVE PLATE
23
SCREW , Replaced By: N304017008016
23
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
26
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
29
WASHER , Replaced By: N000125008443
29
WASHER EXHAUST MUFFLER TO STRAP
32
BRACKET HEAT SHIELD
35
BRACKET FRONT EXHAUST PIPE,5 337342
38
BRACKET ,5 337343 FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 422640, Replaced By: A6744922641
38
BRACKET FRONT EXHAUST PIPE TO BRACKET,5 5029985 528482
41
SCREW RADIATOR M 10X45
41
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
44
NUT , Replaced By: N910113014001
44
NUT BRACKET TO SIDE MEMBER
47
CLAMP , Replaced By: N071555090502
47
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
50
SCREW , Replaced By: N304017010002
50
SCREW BRACKET TO SIDE MEMBER
53
NUT , Replaced By: N910113010000
53
NUT STRAP TO BRACKET
56
FLEXIBLE METAL TUBE FRONT EXHAUST PIPE TO MUFFLER,K 165446
59
CLAMP EXHAUST PIPE TO MUFFLER
59
CLAMP EXHAUST PIPE TO MUFFLER
62
SCREW BRACKET TO EXHAUST PIPE,5 528482
62
SCREW BRACKET TO EXHAUST PIPE,5 528482
65
WASHER , Replaced By: N000125008443
65
WASHER EXHAUST MUFFLER TO STRAP
65
WASHER EXHAUST MUFFLER TO STRAP
68
NUT , Replaced By: N913004008001
68
NUT , Replaced By: N913004008001
999
BRACKET EXHAUST MUFFLER TO BRACKET
999
BRACKET , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO IDENT NO. K 139807, Replaced By: A6744924841
999
SUPPORT EXHAUST MUFFLER TO BRACKET
