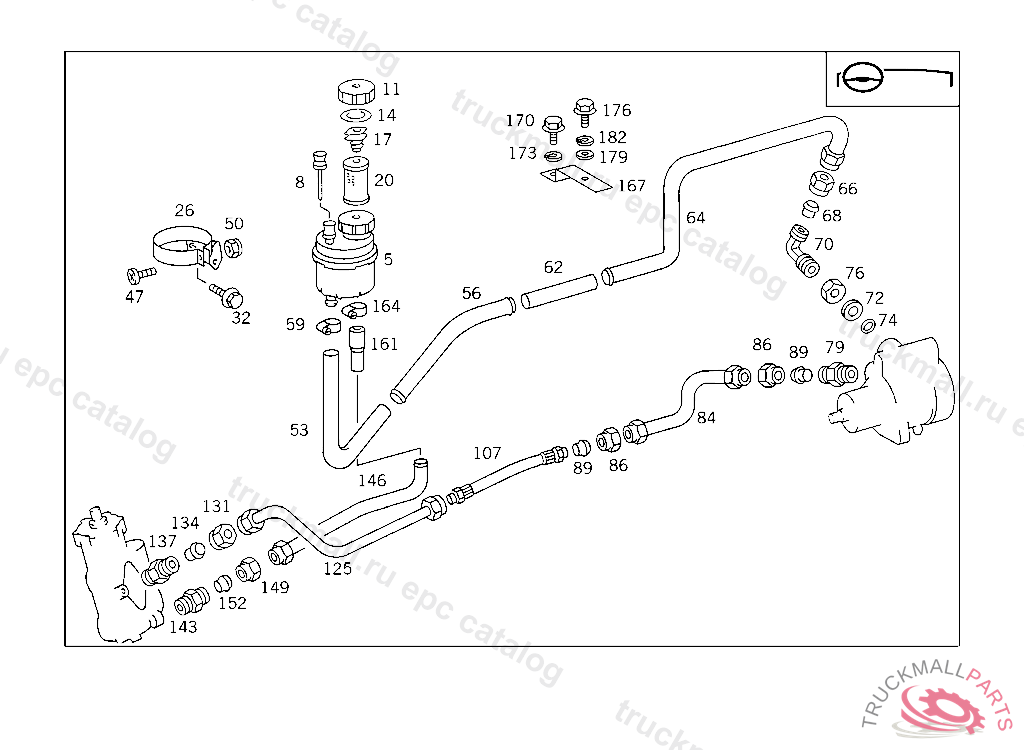

Поз.
Артикул
Описание
5
TANK OIL
8
OIL DIPSTICK
8
OIL DIPSTICK , Replaced By: A0004660867
11
FILLER CAP
14
SEAL RING
17
BRACKET
20
FILTER
20
FILTER
26
BRACKET OIL TANK,5 094745
32
SCREW CENTRAL LOCK TO CAB M 10X16
47
SCREW OIL TANK TO BRACKET
50
NUT , Replaced By: N913004006001
50
NUT PUMP TO BRACKET
53
HOSE ,K 055044
56
LINE (SUCTION LINE),FROM OIL TANK TO PUMP
56
LINE (SUCTION LINE),FROM OIL TANK TO PUMP,K 244309
59
CLAMP , Replaced By: N000000000667
59
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
62
HOSE RETURN, FROM STEERING TO OIL TANK, ORDER BY THE METER
64
LINE (SUCTION LINE),FROM OIL TANK TO PUMP
66
NUT LINE CONNECTION
66
UNION NUT LINE CONNECTION, Replaced By: N000000006243
68
GLAND , Replaced By: A0019901267
68
SEAL CONE LINE CONNECTION
70
ELBOW FITTING SUCTION LINE TO OIL PUMP
72
THRUST RING SUCTION LINE TO OIL PUMP
74
SEALING CORD SUCTION LINE TO OIL PUMP
76
NUT SUCTION LINE TO OIL PUMP
79
SCREW-IN FITTING , Replaced By: A0029971572
79
FITTING DELIVERY LINE TO PUMP
84
LINE FROM PUMP TO HIGH PRESSURE HOSE
86
UNION NUT LINE CONNECTION
86
UNION NUT LINE CONNECTION, Replaced By: N000000006239
89
GLAND , Replaced By: A0019901967
89
SEAL CONE LINE CONNECTION
107
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
107
HOSE POWER-STEERING-PUMP-TO-STEERING-BOX DELIVERY LINE
107
HOSE (DELIVERY LINE),FROM PUMP TO STEERING,5 138293
125
LINE (DELIVERY LINE) FROM HIGH PRESSURE HOSE TO STEERING BOX,K 244309
131
UNION NUT LINE CONNECTION
131
NUT. UNION NUT LINE CONNECTION
131
UNION NUT LINE CONNECTION, Replaced By: N000000006239
134
CUTTING RING. GLAND LINE CONNECTION
134
GLAND , Replaced By: A0019901967
134
SEAL CONE LINE CONNECTION
137
SCREW-IN FITTING DELIVERY LINE TO STEERING,K 244309
143
FITTING DELIVERY LINE TO PUMP
143
SCREW-IN FITTING , Replaced By: A0029971572
146
LINE (RETURN LINE),FROM STEERING TO OIL TANK,5 163366
146
LINE (RETURN LINE),FROM STEERING TO OIL TANK,K 244309
149
UNION NUT LINE CONNECTION
149
UNION NUT LINE CONNECTION, Replaced By: N000000006239
152
GLAND , Replaced By: A0019901967
152
SEAL CONE LINE CONNECTION
161
HOSE ,K 055044
164
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
164
CLAMP HOSE TO FITTING AND TO OIL TANK
167
BRACKET DELIVERY AND SUCTION LINES
170
SCREW , Replaced By: N304017010043
170
SCREW BRACKET TO CONSOLE
173
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
176
SCREW , Replaced By: N304017008021
176
SCREW PIPE CLAMP
179
WASHER BRACKET TO LEFT SIDE MEMBER
179
WASHER , Replaced By: N009021008213
179
WASHER BRACKET TO CAB REAR PANEL
182
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
999
PROTECTIVE CAP
999
HOSE (SUCTION LINE),FROM OIL TANK TO PUMP
