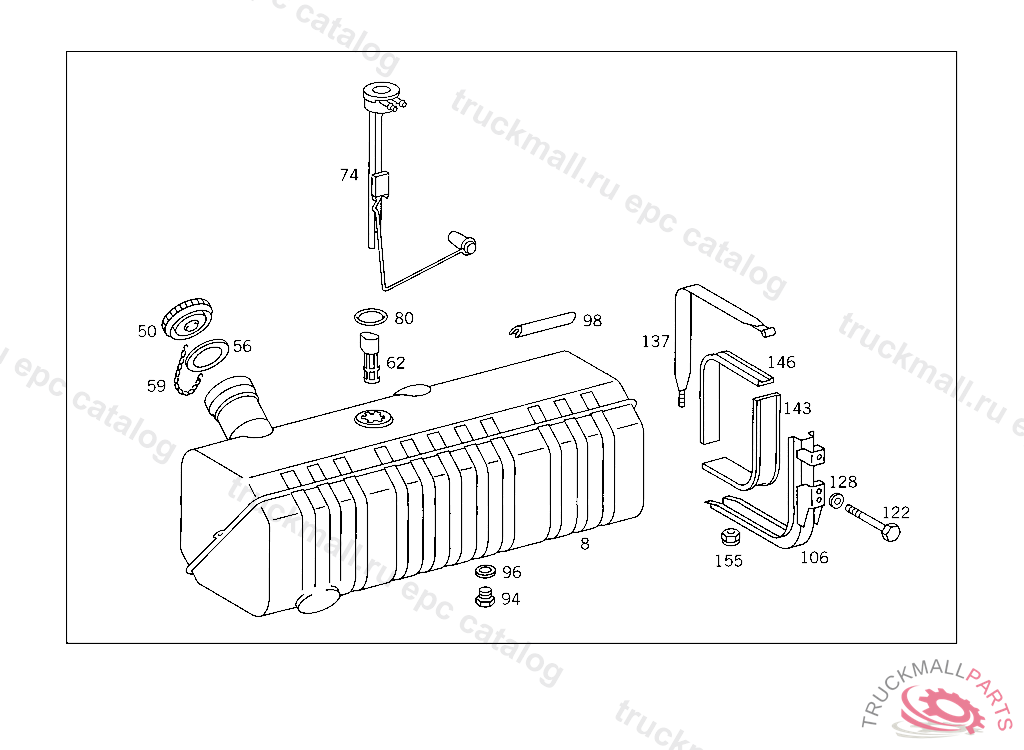

Поз.
Артикул
Описание
50
FILLER CAP , Replaced By: A0004700305
50
FILLER CAP , Replaced By: A0004700305
50
FILLER CAP , Replaced By: A0004700305
50
FILLER CAP
56
SEAL RING
59
CHAIN FILLER CAP
62
FUEL STRAINER FUEL TANK,K 169122
94
SCREW PLUG , Replaced By: N007604014110
94
SCREW PLUG FUEL TANK
96
SEAL RING AT TANK
122
SCREW CONSOLE TO SIDE MEMBER
122
SCREW , Replaced By: N308676012026
122
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
128
WASHER BRACKET TO FRAME
128
WASHER FRONT CONSOLE
143
PAD FUEL TANK TO SUPPORT, ORDER BY THE METER
146
PAD FUEL TANK TO SUPPORT, ORDER BY THE METER
