Поз.
Артикул
Описание

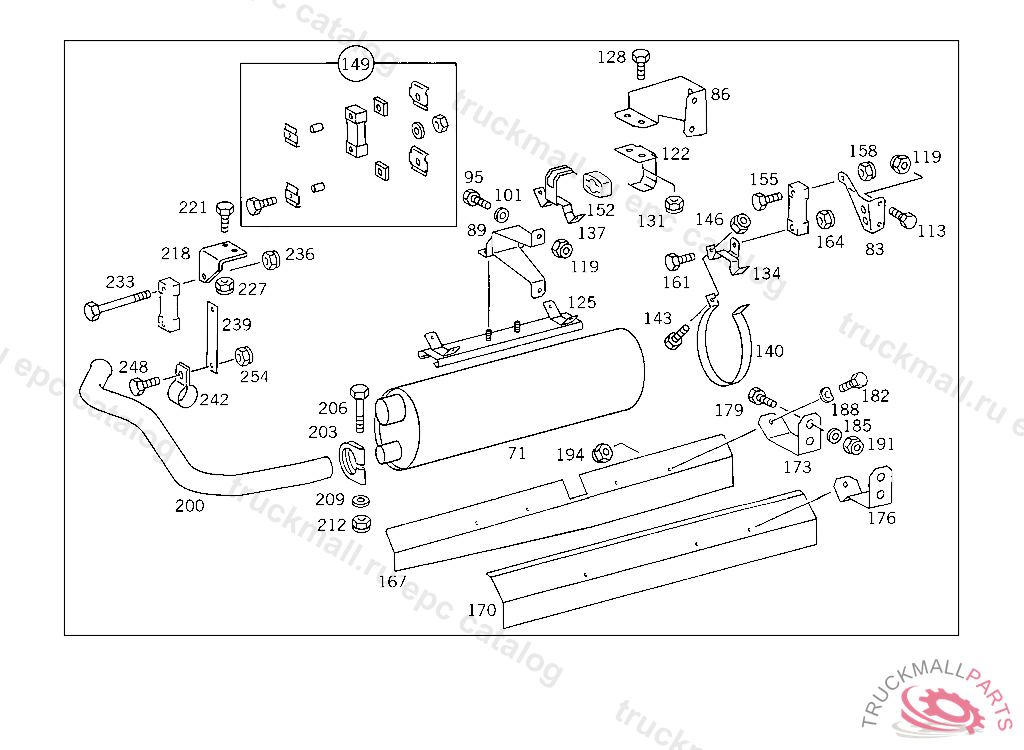

71
EXHAUST MUFFLER
71
EXHAUST MUFFLER , Replaced By: A6764900501
83
BRACKET EXHAUST MUFFLER,5 194472
86
BRACKET EXHAUST MUFFLER,5 1944735 337342
89
BRACKET EXHAUST MUFFLER
89
BRACKET EXHAUST MUFFLER TO BRACKET
89
BRACKET , Replaced By: A6744904440
89
BRACKET , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO IDENT NO. K 139807, Replaced By: A6744924841
89
BRACKET ,5 4783245 999999K 000001 - K 006420N 817441 - N ??????, Replaced By: A6744916241
89
BRACKET ,5 999999K 000001 - K 006420N 817441 - N ??????, Replaced By: A6744904640, +001A6734901734
89
BRACKET , Replaced By: A6744902840
95
SCREW REAR EXHAUST PIPE TO MUFFLER
101
WASHER STRUT TO CROSS MEMBER
101
WASHER , Replaced By: N007349010007
113
SCREW SUPPORT TO CROSS MEMBER M 10X28
119
NUT STRAP TO BRACKET
119
NUT , Replaced By: N910113010000
122
SUPPORT REAR EXHAUST MUFFLER
125
SUPPORT ,5 999999K 000001 - K 006420N 817441 - N 817938, Replaced By: A6734901734, +001A6744904640
125
SUPPORT , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 478323, Replaced By: A6734901434
125
SUPPORT EXHAUST MUFFLER TO BRACKET
128
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
131
NUT STRAP TO BRACKET
131
NUT , Replaced By: N910113010000
134
BRACKET AT MUFFLER,5 194472
137
BRACKET AT MUFFLER,5 1944735 337342
140
STRAP EXHAUST MUFFLER TO SIDE MEMBER
140
BRACKET , Replaced By: A6744914541
140
BRACKET AT MUFFLER,5 337342
143
SCREW BRACKET TO CONSOLE
143
SCREW , Replaced By: N304017010043
146
NUT , Replaced By: N910113010000
146
NUT STRAP TO BRACKET
149
SUSPENSION PROTECTIVE PLATE TO EXHAUST PIPE
152
DAMPING PAD PARTICLE FILTER
155
SCREW VALVE TO BRACKET
155
SCREW VALVE TO BRACKET, Replaced By: N304014008002
158
NUT , Replaced By: N913004008001
158
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
161
SCREW VALVE TO BRACKET
161
SCREW VALVE TO BRACKET, Replaced By: N304014008002
164
NUT , Replaced By: A1201420072
164
HEXAGON NUT SCREENING PLATE,5 163561
200
REAR EXHAUST PIPE (TAIL PIPE),5 337342
200
REAR EXHAUST PIPE (TAIL PIPE),5 7435535 803730K 079962
200
REAR EXHAUST PIPE (TAIL PIPE),5 3373435 7435525 800001-5 803729
200
REAR EXHAUST PIPE (TAIL PIPE),K 079963
200
REAR EXHAUST PIPE ,5 337343 FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 422640, Replaced By: A6764926004
203
CLAMP BRACKET TO EXHAUST PIPE
206
HEXAGON HEAD BOLT. SCREW EXHAUST PIPE TO MUFFLER
206
SCREW , Replaced By: N304014008021
209
WASHER , Replaced By: N000125008443
209
WASHER EXHAUST MUFFLER TO STRAP
212
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
212
NUT , Replaced By: N913004008001
218
BRACKET TAIL PIPE,FRONT,5 7435525 800001-5 803729
221
SCREW BRACKET TO CROSS CONNECTION STRUT
221
SCREW , Replaced By: N304017008034
227
NUT , Replaced By: N913004008001
227
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
233
SCREWM 8X40
236
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
236
NUT , Replaced By: N913004008001
239
BRACKET EXHAUST PIPE SUSPENSION,5 743553-5 8000005 803730
242
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
242
CLAMP , Replaced By: N071555090502
242
CLAMP ,5 152276, Replaced By: N071555090501, +001A6734921041, +001N000933010129, +001N913004010000
248
SCREW , Replaced By: N304017010002
248
SCREW BRACKET TO SIDE MEMBER
254
NUT STRAP TO BRACKET
254
NUT , Replaced By: N910113010000
999
NUT , Replaced By: N910113010000
999
SCREW PIPE CLAMP
999
WASHER HEAT SHIELD TO BRACKET
999
WASHER UNDERRUN PROTECTION AND BRACKET TO FRAME
999
WASHER , Replaced By: N006902011102
999
SCREW , Replaced By: N304017008021
999
BRACKET BRACKET TO FILTER BRACKET
999
BRACKET HEAT SHIELD
999
BRACKET , EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 227991, Replaced By: A6764902640
999
BRACKET , Replaced By: A3524920141
999
BRACKET EXHAUST PIPE REAR ON BATTERY CASE
999
WASHER , Replaced By: N006902011100
999
PROTECTIVE PLATE , NOT USED
999
BRACKET FUEL LINES TO TRANSMISSION
999
RUBBER BUFFER EXHAUST PIPE REAR ON BATTERY CASE
999
BRACKET AIR INTAKE PIPE,5 551665 TO BE ADAPTED DURING ASSEMBLY
999
SCREW COVERING TO SUPPORT
999
SCREW PROTECTIVE PLATE TO CLAMP
