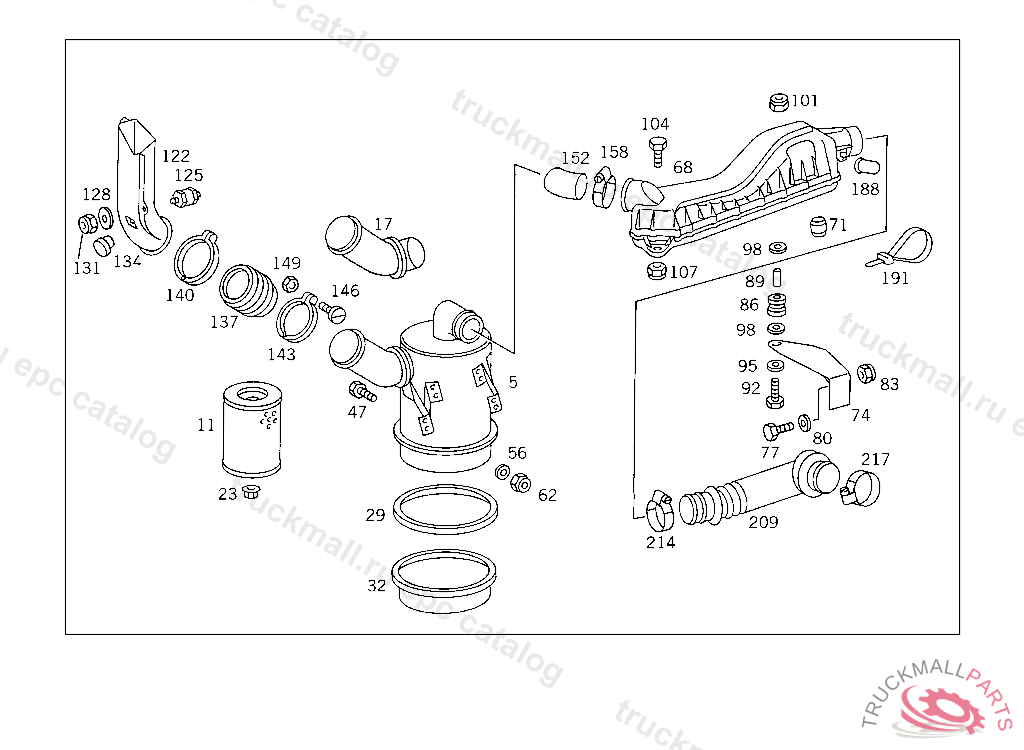

Поз.
Артикул
Описание
5
AIR CLEANER ,5 586474, Replaced By: A0160948402, +001A6795280040, +002N000125013008, +002N000961012151, +002N913004012008
5
AIR CLEANERMANN & HUMMEL,5 586475
5
AIR CLEANER ,5 586474, Replaced By: A0160948402, +001A6795280040, +002N000125013008, +002N000961012151, +002N913004012008
11
FILTER ELEMENT AIR CLEANER
11
FILTER ELEMENT AIR CLEANER MANN & HUMMEL
11
FILTER ELEMENT AIR CLEANER KNECHT
17
INTAKE PIPEKNECHT
23
NUT , Replaced By: N913002010001
23
NUT AIR CLEANER ELEMENT
23
NUT
29
SEAL RING AIR CLEANER BOWL KNECHT
29
GASKET AIR CLEANER BOWL
32
COVER LOWER PART
47
SCREW , Replaced By: N308676016020
47
SCREW CONSOLE TO FRAME
56
WASHER , Replaced By: N000125017016
56
WASHER BRACKET TO FRAME
62
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
62
NUT COMBINATION CYLINDER TO BEARING BRACKET
68
MUFFLER (INTAKE MUFFLER)
71
RUBBER MOUNTING BRACKET TO BEARING BRACKET
74
BRACKET , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 494909, Replaced By: A6735282440
74
BRACKET INTAKE MUFFLER
77
SCREW , Replaced By: N304017008021
77
SCREW PIPE CLAMP
80
WASHER , Replaced By: N000125008443
80
WASHER EXHAUST MUFFLER TO STRAP
83
NUT , Replaced By: N913004008001
86
RUBBER MOUNTING INTAKE MUFFLER TO BRACKET
89
SPACER TUBE PUMP TO FRAME SIDE MEMBER 12X21 MM
92
SCREW , Replaced By: N304017008040
92
SCREW BRACKET TO SIDE MEMBER
92
SCREW. HEXAGON HEAD BOLT , Replaced By: N910143008005
92
HEXALOBULAR BOLT. SCREW MANUAL PUMP BRACKET TO FENDER BRACKET
95
WASHER , Replaced By: N000125008443
95
WASHER EXHAUST MUFFLER TO STRAP
98
RETAINER INTAKE MUFFLER TO BRACKET
101
NUT , Replaced By: N913004008001
104
SCREW EXHAUST PIPE TO BRACKET
107
NUT , Replaced By: N910113010000
107
NUT STRAP TO BRACKET
122
AIR INTAKE PIPE
125
BUFFER , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A6739880511
125
BUFFER REFRIGERANT LINE TO CAB
128
WASHER , Replaced By: N009021008213
128
WASHER BRACKET TO LEFT SIDE MEMBER
131
NUT , Replaced By: N913004008001
134
PLUG AIR INTAKE PIPE
137
BOOT , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 034532, Replaced By: A0005280091
137
BOOT AIR INTAKE
140
CLAMP BOOT TO INTAKE PIPE
143
CLAMP BOOT TO AIR CLEANER,K 034532
146
SCREW BOOT TO AIR DUCT AND TO AIR CLEANER
149
NUT BOOT TO AIR DUCT AND TO AIR CLEANER
152
HOSE TO OIL BATH AIR CLEANER
158
CLAMP FROM AIR CLEANER TO HOT AIR INTAKE PIPE
188
CAP INTAKE MUFFLER FITTING
191
LOOM TIE LINE MOUNTING 280 MM
209
HOSE FROM MUFFLER TO ENGINE
214
CLAMP , Replaced By: N000000000675
214
CLAMP , Replaced By: A0059972990
214
CLAMP HOSE TO RADIATOR,PIPE ELBOW,AND WATER PUMP 82 - 105 X 15.8 MM
217
CLAMP FROM AIR CLEANER TO HOT AIR INTAKE PIPE
217
CLAMP FROM AIR CLEANER TO HOT AIR INTAKE PIPE
999
SCREW CONSOLE TO SIDE MEMBER
999
BRACKET AT SIDE MEMBER
