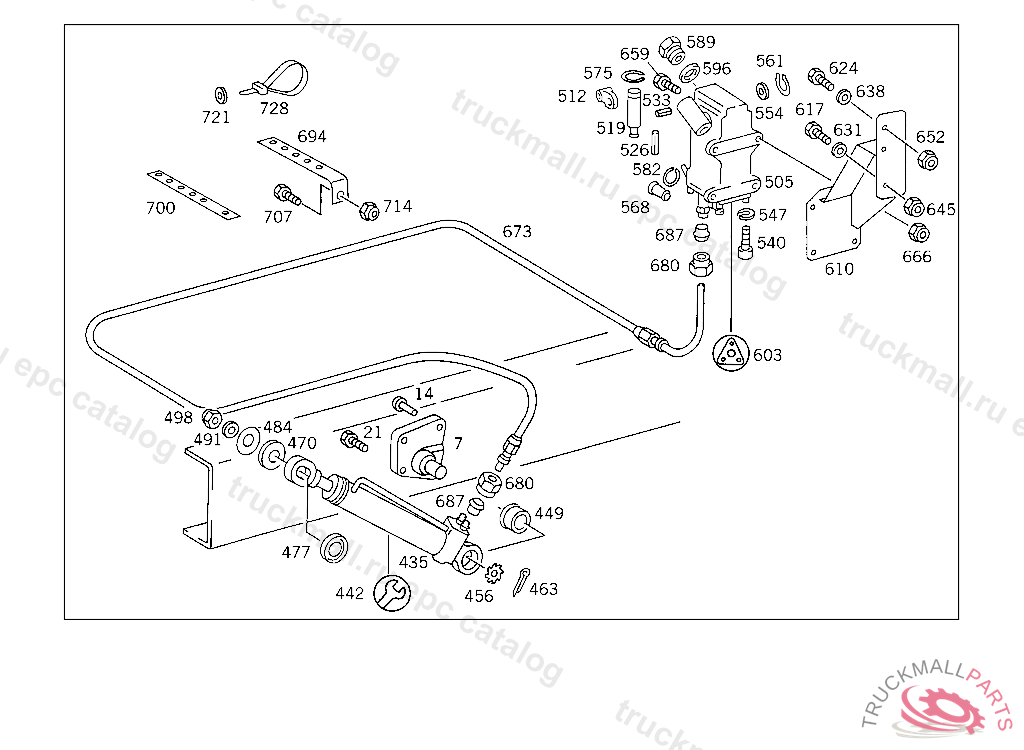

Поз.
Артикул
Описание
7
BEARING BRACKET HYDRAULIC CYLINDER
14
RIVET12X58 MM, TO BE ADAPTED DURING ASSEMBLY
14
RIVET REAR CROSS MEMBER 12X42 MM
21
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
21
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
21
SCREW , Replaced By: N308676012026
435
CYLINDER HYDRAULIC SYSTEM USED FOR CAB TILTING
435
CYLINDER , Replaced By: A6745530405
442
REPAIR KIT. GUIDE , Replaced By: A0015535005
442
GASKET KIT HYDRAULIC CYLINDER WEBER
449
BUSHING HYDRAULIC CYLINDER TO BEARING BRACKET
456
WASHER , Replaced By: N000125025008
456
WASHER HYDRAULIC CYLINDER TO BEARING BRACKET, 387.006-154, 389.006-154, UP TO IDENT-NO. 4 646673,387.214-227, 393.311-586, 395.312-454 UP TO IDENT NO. 4 646483
463
COTTER PIN HYDRAULIC CYLINDER TO BEARING BRACKET
470
WASHER HYDRAULIC CYLINDER TO CAB
477
WASHER HYDRAULIC CYLINDER TO CAB
484
WASHER HYDRAULIC CYLINDER TO CAB
491
WASHER HYDRAULIC CYLINDER TO CAB
498
NUT COMBINATION CYLINDER TO BEARING BRACKET
498
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
505
PUMP , Replaced By: A0005537901
505
PUMP (HAND PUMP), FOR COMPONENT PARTS SEE SPARE PARTS LIST
512
LEVERTO 000 553 37 01,000 553 39 01,WEBER
519
PISTONTO 000 553 39 01,WEBER
519
PISTONTO 000 553 89 01
526
CLAMPING SLEEVE4X28 MM,TO 000 553 23 01,,4 250876
533
CLAMPING SLEEVE4X12 MM,TO 000 553 23 01,
540
SCREW
540
SCREW , Replaced By: N000000000190
547
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
554
FITTED WASHER
561
LOCK RING
568
FILTER
575
SNAP RING
582
SNAP RINGWEBER,TO 000 553 40 01, UP TO IDENT NO. 5 070891,FROM IDENT NO. SEE SA 31 460
589
SCREW
589
SCREW OIL FILLING TO 000 553 89 01
596
SEAL RINGTO 000 553 23 01,000 553 37 01,
603
GASKET KIT HAND PUMP
603
GASKET KIT HAND PUMP TO 000 553 37 01,000 553 39 01,WEBER
603
GASKET KIT , Replaced By: A0005502583
610
BRACKET HYDRAULIC PUMP
617
SCREW CONSOLE TO SIDE MEMBER
624
SCREW SUPPORT TO CROSS MEMBER M 10X28
631
WASHER BRACKET TO FRAME
638
WASHER , Replaced By: N006902011102
638
WASHER , Replaced By: N006902011100
638
WASHER UNDERRUN PROTECTION AND BRACKET TO FRAME
645
NUT SUPPORT TO SIDE MEMBER
652
NUT STRAP TO BRACKET
652
NUT , Replaced By: N910113010000
659
SCREW , Replaced By: N304017010002
659
SCREW BRACKET TO SIDE MEMBER
666
NUT STRAP TO BRACKET
666
NUT , Replaced By: N910113010000
673
HOSE FROM HAND PUMP TO HYDRAULIC CYLINDER,5 900714
680
UNION NUT
687
GLAND , Replaced By: A0019901667
687
SEAL CONE
694
BRACKET , Replaced By: A3604292940
694
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
700
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, TOP
707
SCREW CONSOLE TO SIDE MEMBER
714
NUT SUPPORT TO SIDE MEMBER
721
WASHER HIGH PRESSURE HOSE TO BRACKET
728
LOOM TIE LINE MOUNTING
999
HOSE HAND BRAKE VALVE BLEEDING 100 MM, ORDER BY THE METER
999
BEARING BRACKET SHOCK ABSORBER TO FRONT AXLE
999
CONSOLE TORSION BAR,FRONT
999
RUBBER BUFFER , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 328176, Replaced By: A6743170412
999
REINFORCEMENT RIGHT SIDE MEMBER
999
REINFORCEMENT LEFT SIDE MEMBER
999
SPRING LEVER TO CAB, FOR USE WITH SHORT VERSION OF MERCEDES-BENZ CAB
999
BRACKET , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 494909, Replaced By: A6735282440
999
HOSE FROM MUFFLER TO ENGINE
999
RUBBER MOUNTING BRACKET TO BEARING BRACKET
999
RUBBER MOUNTING INTAKE MUFFLER TO BRACKET
999
CONSOLE BODY MOUNTING
999
BRACKET BRACKET TO SPRING LEAF, FOR USE WITH SHORT VERSION OF MERCEDES-BENZ CAB
999
LEVER RETAINING STRUT UNLOCKING MECHANISM, FOR USE WITH SHORT VERSION OF MERCEDES-BENZ CAB
999
BUSHING LEVER TO CAB, FOR USE WITH SHORT VERSION OF MERCEDES-BENZ CAB
999
RUBBER BUFFER BOTTOM, ON VEHICLES WITH LONG PLATFORM
999
RUBBER BUFFER , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A6733170512
999
SPRING LEAF CAB SUSPENSION,REAR, FOR USE WITH SHORT VERSION OF MERCEDES-BENZ CAB
999
TORSION BAR CAB SUSPENSION,FRONT, FOR USE WITH SHORT VERSION OF MERCEDES-BENZ CAB
999
SPACER TUBE CAB LOCKING MECHANISM, ON VEHICLES WITH LONG PLATFORM5 945638
999
ANGLE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 545914, Replaced By: A6733110245
999
CONSOLE , FOR USE WITH SHORT VERSION OF MERCEDES-BENZ CAB5 462572
999
CONSOLE CAB SUSPENSION,REAR LEFT, FOR USE WITH SHORT VERSION OF MERCEDES-BENZ CAB
999
BRACKET CONSOLE,FRONT, FOR USE WITH SHORT VERSION OF MERCEDES-BENZ CAB
999
STRUT , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 714469, Replaced By: A6733101053
999
BRACKET CAB SUSPENSION,FRONT RIGHT, FOR USE WITH SHORT VERSION OF MERCEDES-BENZ CAB
999
LEVER CAB SUSPENSION,FRONT LEFT, FOR USE WITH SHORT VERSION OF MERCEDES-BENZ CAB
999
STRUT CAB RETAINING, FOR USE WITH SHORT VERSION OF MERCEDES-BENZ CAB
999
LEVER CAB SUSPENSION,FRONT RIGHT, FOR USE WITH SHORT VERSION OF MERCEDES-BENZ CAB
999
BRACKET SHOCK ABSORBER, FOR USE WITH SHORT VERSION OF MERCEDES-BENZ CAB
999
SPACER TUBE BRACKET TO BELL HOUSING
999
BEARING SHACKLE TO FRAME
999
SPACER TUBE PUMP TO FRAME SIDE MEMBER 12X21 MM
999
RETAINER INTAKE MUFFLER TO BRACKET
999
MUFFLER (INTAKE MUFFLER)
999
GUIDETO 674 553 04 05
999
GUIDE
999
VALVETO 000 553 89 01
999
VALVETO 000 553 39 01,WEBER
999
GASKET KIT HYDRAULIC CYLINDER
