Поз.
Артикул
Описание

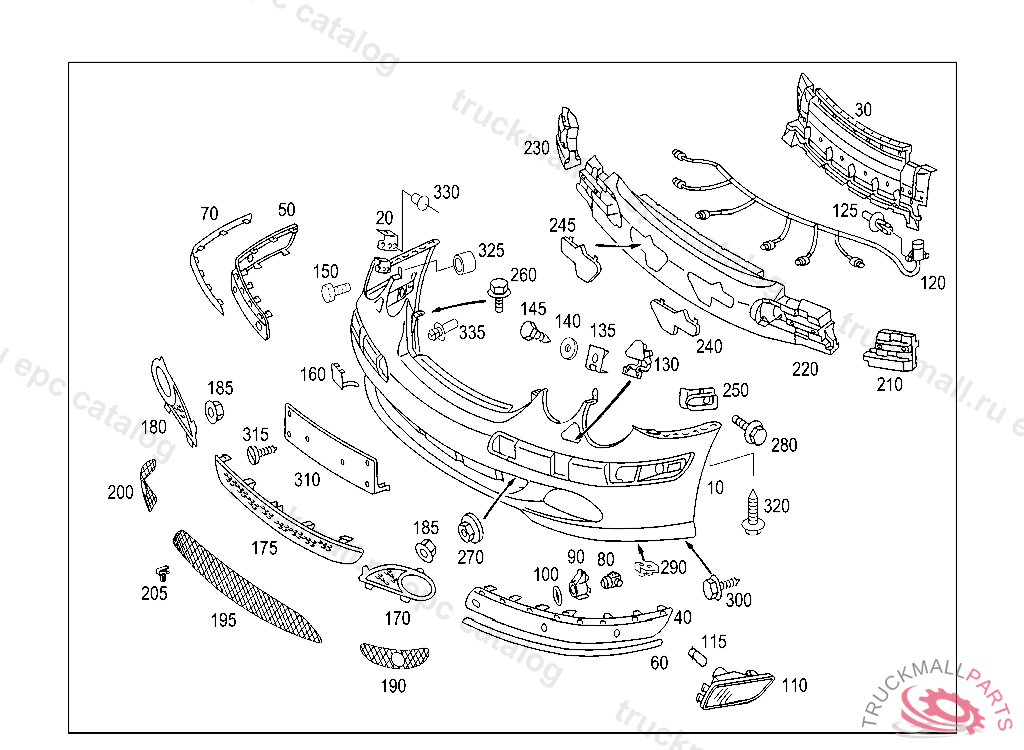

10
PANELING BUMPER, A 02427920020930802 TO BE PAINTED PRIOR TO INSTALLATION 9999QFT215L9000 COLORLESS
10
PANELING BUMPER, A 02427920020930802
20
BRACKET RIGHT
20
BRACKET LEFT
30
INTERIOR PART , A 02427920020930802
40
RAIL LEFT
40
RAIL LEFT,PARKTRONIC-SYSTEM (PTS)
50
RAIL RIGHT,PARKTRONIC-SYSTEM (PTS)
50
RAIL RIGHT
60
CHROMIUM COVER LEFT, A 02427920020930802
70
CHROMIUM COVER RIGHT, A 02427920020930802
80
DISTANCE SENSOR , TO BE PAINTED PRIOR TO INSTALLATION 9999QFT168L9000 COLORLESS, Replaced By: A0045428718
90
HOUSING PARKTRONIC SYSTEM
100
SPACER RING PARKTRONIC SYSTEM, A 55589720030630804 E 02000020070101804 A 97499920070630 E 06000020080901809
110
BLINKER LAMP LEFT
110
BLINKER LAMP RIGHT
115
BULBTO A 6955407048/7148,3825400311/0411
120
WIRING HARNESS PARKTRONIC SYSTEM, FRONT
125
RIVET AIR/WATER DUCT TO CROSS MEMBER, 1B63
130
ESCUTCHEON LEFT, HEADLAMP CLEANING DEVICE
130
ESCUTCHEON RIGHT,HEADLAMP CLEANING DEVICE
135
LOCK NUT COVER TO BUMPER M5
140
WASHER CABLE CONNECTOR TO BRACKET AND TO FRAME,RESP.
145
SCREW. HEXAGON HEAD BOLT RELAY TO BRACKET M5X16
150
COMBINATION BOLT N 140 BUMPER TO SUPPORT BOTTOM M5X16
160
COVER FLAP RIGHT,TOWING BRACKET
170
COVER FLAP LEFT, A 02427920020930802
175
COVER CENTRAL, A 02427920020930802
180
COVER FLAP RIGHT, A 02427920020930802
185
NUT ANTENNA, F 129679 T 028296 EXCEPT CODE 809 ALSO INSTALLED IN VEHICLE TO F 129678, T 028295 WITH CODE 800
190
GRILLE LEFT, A 02427920020930802
195
GRILLE CENTRAL, A 03627320031028803
200
GRILLE RIGHT, A 02427920020930802
205
PUSH BUTTON ATTACHMENT, GRID, A 97499920070630809 E 06000020080801809
210
ENERGY-ABSORBING UNIT LEFT ONLY FOR KANADA, A 02427920020930802
210
ENERGY-ABSORBING UNIT LEFT, A 02427920020930802
220
ENERGY-ABSORBING UNIT CENTRAL, A 02427920020930802
230
ENERGY-ABSORBING UNIT RIGHT, A 02427920020930802
230
ENERGY-ABSORBING UNIT RIGHT ONLY FOR KANADA, A 02427920020930802
240
PLATE LEFT
245
PLATE RIGHT
250
GUIDE BUMPERS LEFT AND RIGHT
260
SCREW , WITH DIESEL ENGINE
260
SCREW-AND-WASHER ASSEMBLY. COMBINATION BOLT , Replaced By: N304017006019
270
NUT FENDER ON SIDE PANEL M6
280
HEXALOBULAR BOLT. SCREW CLAMP ON BRACKET M 6X35
290
INTERMEDIATE PIECE CONNECTION WHEELHOUSE PANELING LEFT AND RIGHT
300
SCREW. SHEET METAL SCREW
300
TAPPING SCREW LIGHTING UNIT TO STIFFENING 4,8 X 30 MM, A 436536 F 483848 EXCEPT CODE 806 ALSO INSTALLED IN VEHICLE TO A 436535, F 483847 WITH CODE 807
310
LICENSE PLATE MOULDING
310
COVER , A 02427920020930802
315
SCREW COVERING TO FRONT BUMPER
320
SCREW
330
RIVET TERMINAL STRIP
335
BLIND RIVET AT COVERING
