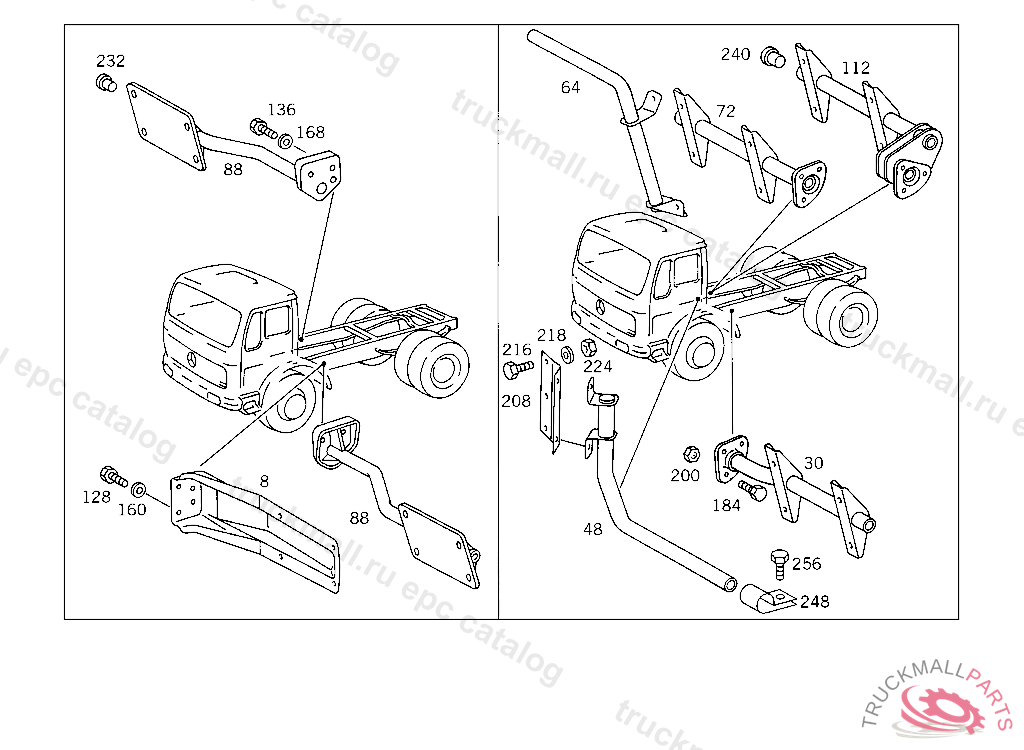

Поз.
Артикул
Описание
8
BRACKET LEFT FENDER
8
BRACKET , Replaced By: A6735204341
8
BRACKET , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 422635, Replaced By: A6735204241
30
BRACKET LEFT FENDER
48
BRACKET LEFT FENDER,5 960100
48
BRACKET , Replaced By: A6745202644
48
BRACKET LEFT FENDER,5 7999995 900000-5 960099
64
BRACKET RIGHT FENDER
64
BRACKET , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 133750, Replaced By: A6745203141
72
BRACKET RIGHT FENDER
88
BRACKET RIGHT FENDER,5 462572
88
BRACKET RIGHT FENDER
112
BRACKET RIGHT FENDER
128
SCREW CONSOLE TO SIDE MEMBER
136
SCREW EXHAUST PIPE TO BRACKET
136
SCREW BRACKET TO SIDE MEMBER
136
SCREW , Replaced By: N304017010002
160
WASHER BRACKET TO FRAME
168
WASHER , Replaced By: N006902011102
168
WASHER , Replaced By: N006902011100
168
WASHER UNDERRUN PROTECTION AND BRACKET TO FRAME
184
SCREW END PIECE TO EXHAUST PIPE M 10X25
184
SCREW BRACKET TO CROSS CONNECTION STRUT
184
SCREW , Replaced By: N304017008034
200
NUT , Replaced By: N913004008001
200
NUT , Replaced By: N913023010002
200
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
200
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
200
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
208
BRACKET AT SUPPORT,5 7999995 900000-5 960099
208
BRACKET AT SUPPORT
216
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
216
SCREW , Replaced By: N304017008016
218
WASHER , Replaced By: N009021008213
218
WASHER BRACKET TO LEFT SIDE MEMBER
224
NUT , Replaced By: N913004008001
999
LOCK WASHER FUSE
999
WASHER BRACKET TO LEFT SIDE MEMBER
999
SCREW REAR EXHAUST PIPE TO MUFFLER
999
WASHER BRACKET TO FRAME SIDE MEMBER
999
BRACKET LEFT FENDER
999
BRACKET LEFT FENDER
999
BRACKET LEFT FENDER
999
BRACKET FENDER,K 023163
999
BRACKET , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A6745202444
999
BRACKET , Replaced By: A6745202644
999
BRACKET FENDER,K 023162
999
BRACKET , Replaced By: A6735204341
