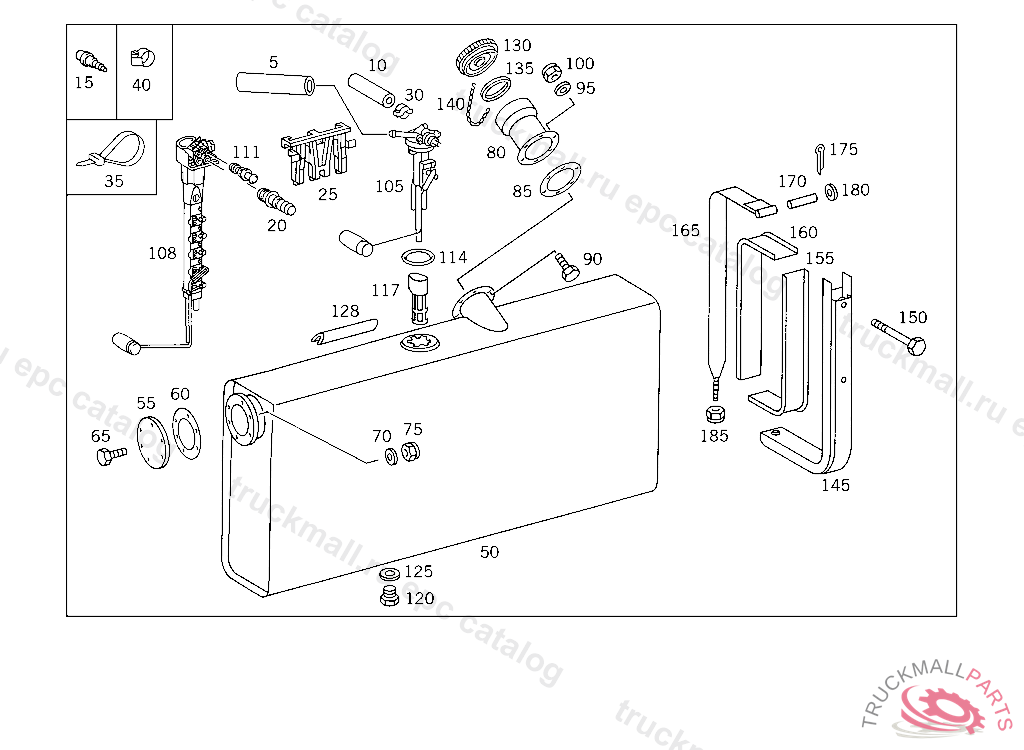

Поз.
Артикул
Описание
5
HOSE LEAK LINE
10
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
15
INTERMEDIATE PIECE FEED LINE AND RETURN LINE,K 169122
20
CONNECTOR FEED LINE AND RETURN LINE 8X1 MM
20
CONNECTOR FEED LINE AND RETURN LINE 12,5X1,25 MM
25
LOCK FUEL GAUGE SENDER UNIT CONNECTION
30
CLIP LEAK LINE
35
LOOM TIE VENT VALVE TO FUEL TANK
35
LOOM TIE LINE MOUNTING 280 MM
40
CLAMP , Replaced By: N000000000665
40
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
50
FUEL TANK127 L
50
FUEL TANK LESS SENDER UNIT 87 L,K 169123
50
FUEL TANK FILLER NECK PARTS TO BE ORDERED FROMTHE BODY MANUFACTURER 125L,K 169123
50
FUEL TANK ,K 169122, Replaced By: A6744700901, +001A0005409917, +001A0115426417
50
FUEL TANK ,K 169122, Replaced By: A6744700801, +001A0005409917, +001A0115426417
50
FUEL TANK ,K 169122, Replaced By: A6744700701, +001A0005409917, +001A0115426417
50
FUEL TANK , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 169122, Replaced By: A6504700501, +001A0005409917, +001A0115426417
50
FUEL TANK LESS SENDER UNIT 70 L,K 169123
55
COVER BLIND COVER TO TANK,K 169123
60
GASKET BLIND COVER TO TANK,K 169123
65
SCREW HOSE TO CAB M 6X25
65
SCREW OIL LINE TO CRANKCASE
70
WASHER COMPRESSED AIR LINE TO BRACKET
70
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
75
NUT , Replaced By: N913004006001
75
NUT AT FILTER BRACKET
75
NUT PUMP TO BRACKET
80
FILLER NECK FUEL TANK
85
GASKET BLIND COVER TO TANK,K 169123
90
SCREW OIL LINE TO CRANKCASE
90
SCREW HOSE TO CAB M 6X25
95
WASHER COMPRESSED AIR LINE TO BRACKET
95
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
100
NUT , Replaced By: N913004006001
100
NUT AT FILTER BRACKET
100
NUT PUMP TO BRACKET
105
SENDER UNIT , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 169122, Replaced By: A0115426417, +001A0005409917
108
SENDER UNIT FUEL GAUGE,K 169123
111
PLUG TO SEAL AUXILIARY HEATER CONNECTION 8 MM,K 169123
114
SEAL RING FUEL GAUGE SENDER UNIT TO FUEL TANK
117
FUEL STRAINER FUEL TANK,K 169122
120
SCREW PLUG FUEL TANK
120
SCREW PLUG , Replaced By: N007604014110
125
SEAL RING FUEL LINE TO FEED PUMP
128
EDGE GUARD SECTION SEAT, Replaced By: A0019872272
128
EDGE GUARD SECTION AT SHOCK ABSORBER BRACKET, ORDER BY THE METER
130
FILLER CAP , Replaced By: A0004700305
130
FILLER CAP
135
SEAL RING
140
CHAIN FILLER CAP
145
SUPPORT FUEL TANK,FRONT AND REAR
150
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
150
SCREW , Replaced By: N308676012026
150
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
150
SCREW BRACKET TO CROSS MEMBER M 12X1.5X40
150
SCREW EXHAUST PIPE TO BRACKET
155
PAD FUEL TANK TO SUPPORT, ORDER BY THE METER
160
PAD FUEL TANK TO SUPPORT, ORDER BY THE METER
165
STRAP FUEL TANK TO SUPPORT
170
PIN STRAP TO SUPPORT
175
COTTER PIN STRAP TO SUPPORT
180
WASHER STRAP TO SUPPORT
185
NUT SUPPORT TO SIDE MEMBER
185
NUT STRAP TO SUPPORT
999
FILLER CAP
999
SUPPORT FUEL TANK
999
SUPPORT
999
SUPPORT FUEL TANK TO FRAME
999
BRACKET FUEL TANK, FOR USE WITH SHORT MERCEDES-BENZ CAB5 3506525 495522
999
FUEL TANK ,K 169122, Replaced By: A6744700801, +001A0005409917, +001A0115426417
999
ELECTRIC CABLE BRANCH-OFF TO FUEL GAUGE SENDER UNIT,5 3506525 495522
999
SENDER UNIT , Replaced By: A6675420517
999
REINFORCEMENT
999
ANGLE FUEL TANK TO SUPPORT
999
FUEL TANK , Replaced By: A6674704401
999
REINFORCEMENT FUEL TANK, FOR USE WITH SHORT MERCEDES-BENZ CAB5 350652
999
STRAP FUEL TANK TO SUPPORT
999
FUEL TANK , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 169122, Replaced By: A6524700101, +001A0005409917, +001A0115426017
999
VALVE BREATHER LINE,K 169122
999
SENDER UNIT FUEL GAUGE,K 169123
999
SENDER UNIT
999
PART NAME MISSING
999
FUEL FILLER CAP , Replaced By: A9014700005
