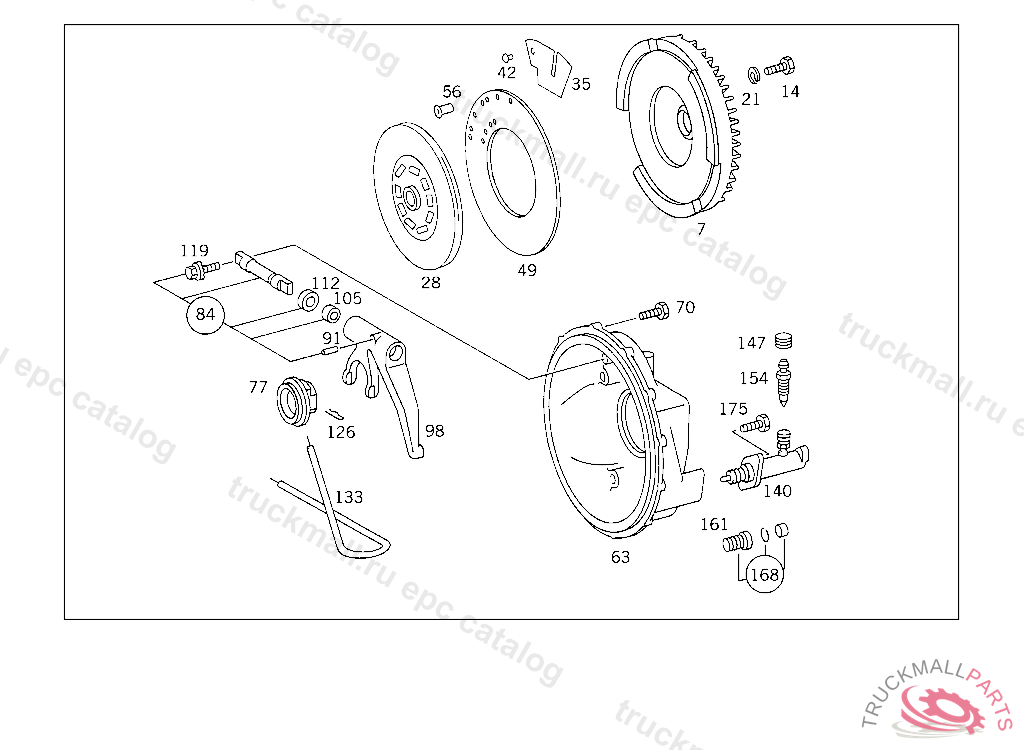

Поз.
Артикул
Описание
7
CLUTCH PRESSURE PLATE CLUTCH, COMPONENT PARTS NOT AVAILABLE PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
14
HEXAGON HEAD BOLT. SCREW CLUTCH TO FLYWHEEL
14
SCREW , Replaced By: N304017008053
21
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
28
CLUTCH DISC
28
CLUTCH DISC ASBESTOS-FREE LINING, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
28
CLUTCH DISC
28
CLUTCH DISC ASBESTOS-FREE LINING, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
28
CLUTCH DISC , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART, Replaced By: A0082500803
35
LEAF SPRING , REBORE HOLE IN SUPPORTING PLATE FROM 5.2MM TO 6.2MM, Replaced By: A0002524419, +002A0002523975
35
LEAF SPRING
42
RIVET LEAF SPRING TO CLUTCH DISC 5X6 MM
42
RIVET LEAF SPRING TO CLUTCH DISC
49
CLUTCH LINING ASBESTOS-FREE
49
CLUTCH LINING
49
CLUTCH LINING , Replaced By: A0012524310
56
RIVET LINING WITH INTERMEDIATE SPRING
56
RIVET LEAF SPRING TO CLUTCH DISC
56
RIVET LINING WITH INTERMEDIATE SPRING,5 563495
56
RIVET LINING WITH CLUTCH DISC,5 563495
63
BELL HOUSING
70
SCREW REAR EXHAUST PIPE TO MUFFLER
77
RELEASE BEARING
84
SHAFT (PARTS KIT),RELEASE SHAFT
91
CLAMPING SLEEVE RELEASE LEVER TO SHAFT
98
RELEASE LEVER ,5 418252
98
RELEASE LEVER ,5 418251, Replaced By: A6152540708, +001A0012540235
105
NEEDLE BEARING RELEASE LEVER
112
SEAL RING RELEASE LEVER
119
SCREW RELEASE LEVER TO BELL HOUSING
126
SPRING RELEASE LEVER TO RELEASE BEARING
126
SPRING , Replaced By: A6799930025
133
HOSE , Replaced By: A0005732636
133
HOSE RELEASE BEARING LUBRICATION
140
SLAVE CYLINDER CLUTCH ACTUATION
140
SLAVE CYLINDER , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 414492, Replaced By: A0012959607
147
PROTECTIVE CAP , Replaced By: A0004217187
147
PROTECTIVE CAP ,5 962906
154
VALVE CLUTCH SLAVE CYLINDER
161
BOOT
161
BOOT , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 288567, Replaced By: A0002955983
168
REPAIR KIT , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 288567, Replaced By: A0002904567
168
REPAIR KIT CLUTCH SLAVE CYLINDER
175
SCREW END PIECE TO EXHAUST PIPE M 10X25
175
SCREW CLUTCH SLAVE CYLINDER TO BELL HOUSING M 10X170
999
STUD STARTING MOTOR MOUNTING
999
BEARING RELEASE LEVER,5 418252
999
CLUTCH DISC , Replaced By: A0132509503
999
BALL PIVOT RELEASE YOKE
999
PROTECTIVE PLATE , Replaced By: A3522510106
999
SEAL RING RELEASE YOKE
999
BEARING RELEASE YOKE
999
SEAL RING RELEASE YOKE
999
BRACKET OUTSIDE
999
HOUSING ,5 332726, Replaced By: A6762500105, +001A3522500055
999
SPRING LOCK RELEASE YOKE TO RELEASE BEARING
999
BRACKET INSIDE
999
BOOT RELEASE YOKE
999
SHAFT (CLUTCH RELEASE SHAFT)
