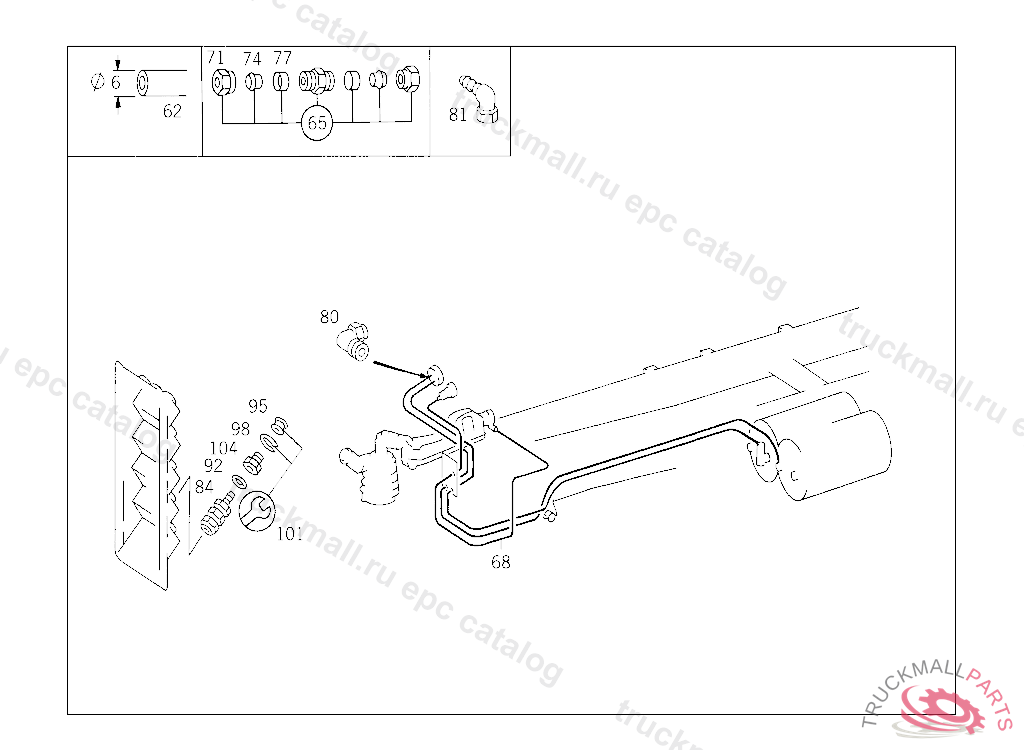

Поз.
Артикул
Описание
62
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
62
PLASTIC PIPE RISING PIPE 4X6 MM
65
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
68
HOSE LEAK LINE, ORDER BY THE METER
71
UNION NUT
74
GLAND , Replaced By: A0019901667
74
SEAL CONE
77
SLEEVE LEAK LINE
80
FITTING FROM PUMP TO CYLINDER
80
ELBOW FITTING FROM PUMP TO CYLINDER, Replaced By: N000000006197
81
ELBOW FITTING
84
CONNECTORTO M22 / 4MM / VOSS 230
84
CONNECTOR , Replaced By: A0029905378
84
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION
84
CONNECTOR LINE MOUNTING
92
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
95
LOCK RING LINE CONNECTION
95
SEAL RING , Replaced By: A0009940747
98
LOCK , Replaced By: A0009945448
98
LOCK LINE CONNECTION
101
REPAIR KIT COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
101
REPAIR KIT , Replaced By: A0309971748
104
SCREW. UNION SCREW , Replaced By: A0009973734
104
SCREW. UNION SCREW LINE CONNECTION
