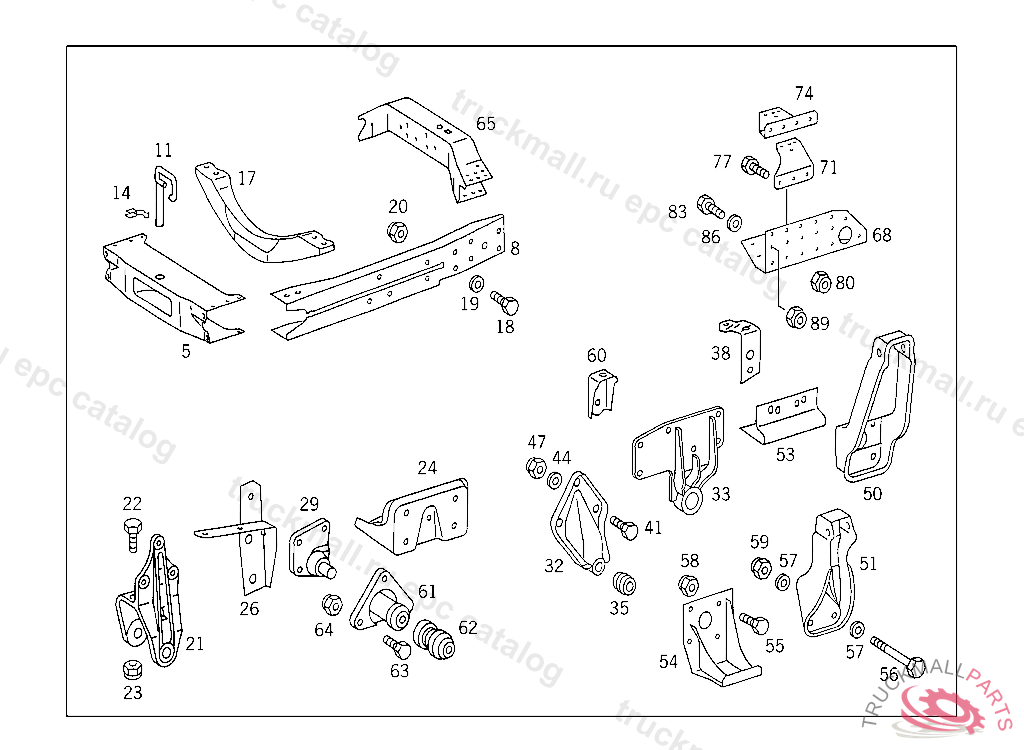

Поз.
Артикул
Описание
5
CROSS MEMBER FRONT
8
GUSSET PLATE FRONT RIGHT, TO BE ADAPTED DURING ASSEMBLY
8
GUSSET PLATE FRONT LEFT, TO BE ADAPTED DURING ASSEMBLY
11
COUPLING PIN FOR COUPLING MOUTH
14
U-BOLT COUPLING PIN
17
ENGINE CROSS MEMBER FRONT
18
SCREW CONSOLE TO SIDE MEMBER
19
CONICAL SPRING WASHER BATTERY SUPPORT TO FRAME
20
NUT SUPPORT TO SIDE MEMBER
21
FRONT SPRING BRACKET FRONT,5 426402
22
SCREW PLATE TO SIDE MEMBER
23
NUT , Replaced By: N910113014000
23
NUT STEERING SUPPORT TO FRAME
24
SUPPORT ENGINE FRONT MOUNTING
26
BRACKET OIL LINES
33
CONSOLE TORSION BAR TO FRAME,LEFT, TO BE ADAPTED DURING ASSEMBLY
33
CONSOLE TORSION BAR TO FRAME,RIGHT, TO BE ADAPTED DURING ASSEMBLY
35
BEARING SHACKLE TO FRAME
38
BRACKET IDLING ADJUSTMENT
41
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
41
SCREW , Replaced By: N308676012026
44
WASHER
47
NUT SUPPORT TO SIDE MEMBER
51
CONSOLE RIGHT SHOCK ABSORBER
51
CONSOLE LEFT SHOCK ABSORBER
54
PLATE RIGHT SIDE MEMBER
54
PLATE LEFT SIDE MEMBER
55
SCREW , Replaced By: N304017010002
55
SCREW BRACKET TO SIDE MEMBER
56
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
56
SCREW , Replaced By: N308676012026
57
WASHER
58
NUT , Replaced By: N910113010000
58
NUT STRAP TO BRACKET
59
NUT SUPPORT TO SIDE MEMBER
60
CONSOLE BODY MOUNTING
61
REAR SUBFRAME , Replaced By: A6743220003
61
FRONT SPRING BRACKET (FRONT SPRING BRACKET),REAR,5 437117
62
BUSHING
63
HEXAGON HEAD BOLT. SCREW BRACKET TO REAR AXLE
63
SCREW , Replaced By: N308676012040
64
NUT SUPPORT TO SIDE MEMBER
65
CROSS MEMBER TRANSMISSION,5 519079
68
REINFORCEMENT LEFT
68
REINFORCEMENT LEFT
68
REINFORCEMENT RIGHT
68
REINFORCEMENT RIGHT
74
ANGLE LEFT
77
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
77
SCREW CONSOLE TO SIDE MEMBER
77
SCREW , Replaced By: N308676012012
80
NUT SUPPORT TO SIDE MEMBER
83
SCREW , Replaced By: N308676012026
83
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
86
WASHER BRACKET TO FRAME
89
NUT SUPPORT TO SIDE MEMBER
