Поз.
Артикул
Описание

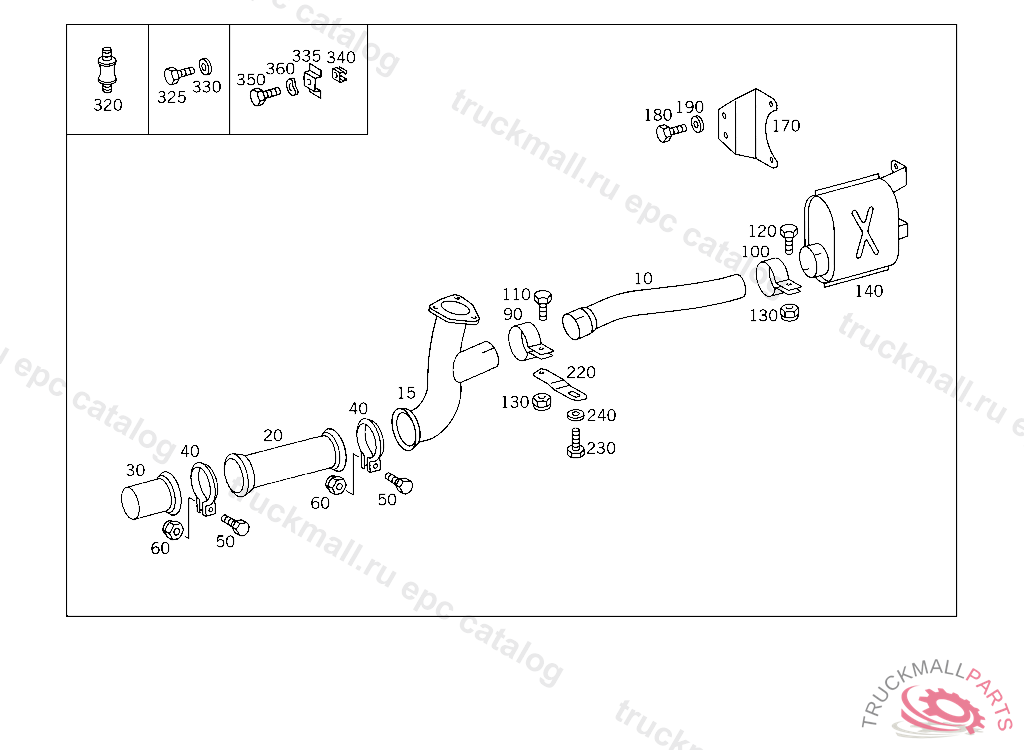

10
EXHAUST PIPE RESONATOR
15
EXHAUST PIPE RESONATOR,K 049383
15
EXHAUST PIPE RESONATOR,K 049384
20
FLEXIBLE METAL TUBE LEFT EXHAUST PIPE
30
COLLAR FRONT EXHAUST PIPE FRONT PART TO REAR PART
40
CLAMP FLEXIBLE METAL TUBE TO EXHAUST PIPE
50
SCREW SUPPORT TO FENDER
50
SCREW PUMP TO FRAME SIDE MEMBER M 8X40
50
SCREW , Replaced By: N304017008018
60
NUT
60
NUT BRACKET TO BRACKET
90
CLAMP AT CROSS MEMBER
90
CLAMP REAR EXHAUST PIPE TO BRACKET
100
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
110
SCREW BRACKET TO CROSS CONNECTION STRUT
110
SCREW EXHAUST PIPE TO SIDE MEMBER
110
SCREW BRACKET TO SIDE MEMBER
110
SCREW , Replaced By: N304017010002
120
SCREW REAR EXHAUST PIPE TO MUFFLER
130
NUT , Replaced By: N913004008001
130
NUT STRAP TO BRACKET
130
NUT , Replaced By: N910113010000
140
RESONATOR
170
BRACKET RESONATOR
180
HEXAGON HEAD BOLT CONSOLE TO REAR CROSS MEMBER AND TO FRAME SIDE MEMBERS M 10X40
180
SCREW BRACKET TO SIDE MEMBER
180
SCREW CONNECTOR TO REAR SHIFTING ROD
180
SCREW PIPE CLAMP
180
SCREW EXHAUST PIPE TO SIDE MEMBER
180
SCREW , Replaced By: N910105010011
190
WASHER SUPPORTING RAIL TO SUPPORT,5 429712
220
BRACKET FLYWHEEL HOUSING
230
SCREWM 16X25
230
SCREW , Replaced By: N304017016011
240
WASHER BRACKET TO FRAME
320
RUBBER BUFFER BRACKET TO SUPPORT
325
SCREW BRACKET TO FRAME SIDE MEMBER
325
SCREW STRUT TO FRAME, LEFT
330
WASHER STRUT TO CROSS MEMBER
335
BRACKET LICENSE PLATE
340
NUT RETAINER LICENSE PLATE TO BRACKET
340
NUT RETAINER , Replaced By: A0019906791
350
SCREW LICENSE PLATE TO BRACKET
360
SPRING WASHER LICENSE PLATE TO BRACKET
999
REAR EXHAUST PIPE (TAIL PIPE),K 079963
999
BRACKET RESONATOR
999
EXHAUST PIPE RESONATOR
999
RESONATOR
999
CLAMP RESONATOR
999
EXHAUST PIPE RESONATOR
999
EXHAUST MUFFLER
999
REAR EXHAUST PIPE (TAIL PIPE)
999
REAR EXHAUST PIPE (TAIL PIPE)
999
REAR EXHAUST PIPE (TAIL PIPE)
999
REAR EXHAUST PIPE REAR PART,5 337343
999
REAR EXHAUST PIPE REAR PART,5 337343
999
REAR EXHAUST PIPE FRONT PART,5 337343
999
BRACKET BRACKET TO FILTER BRACKET
999
BRACKET ,5 379080
999
PROTECTIVE PLATE ,5 379080
999
BRACKET EXHAUST PIPE TO SIDE MEMBER
999
BRACKET EXHAUST PIPE TO SIDE MEMBER
999
EXHAUST PIPE RESONATOR,K 049384
999
EXHAUST PIPE FRONT, TO BE ADAPTED DURING ASSEMBLY
999
EXHAUST PIPE RESONATOR,K 049384
999
EXHAUST MUFFLER
999
EXHAUST MUFFLER
999
BRACKET EXHAUST MUFFLER TO BRACKET
999
BRACKET TAIL PIPE,FRONT
999
CLAMP EXHAUST PIPE TO MUFFLER
999
ANGLE EXHAUST MUFFLER,5 478324
999
BRACKET AT SIDE MEMBER,5 478324
999
BRACKET EXHAUST MUFFLER
999
BRACKET EXHAUST MUFFLER,5 478324
999
BRACKET EXHAUST PIPE REAR ON BATTERY CASE
999
BRACKET , Replaced By: A6744914541
999
ANGLE EXHAUST MUFFLER,5 478324
999
PROTECTIVE PLATE (HEAT SHIELD),EXHAUST MUFFLER
999
FLEXIBLE METAL TUBE FRONT EXHAUST PIPE TO MUFFLER,K 165446
999
SUPPORT EXHAUST MUFFLER TO BRACKET
999
FLEXIBLE METAL TUBE
999
CLAMP FLEXIBLE METAL TUBE TO EXHAUST PIPE
999
BRACKET FUEL LINES TO TRANSMISSION
999
CLAMP FLEXIBLE METAL TUBE TO EXHAUST PIPE
999
RUBBER BUFFER EXHAUST PIPE REAR ON BATTERY CASE
999
BRACKET PROTECTIVE PLATE
999
BRACKET AIR INTAKE PIPE,5 551665 TO BE ADAPTED DURING ASSEMBLY
999
BRACKET HAND PUMP
