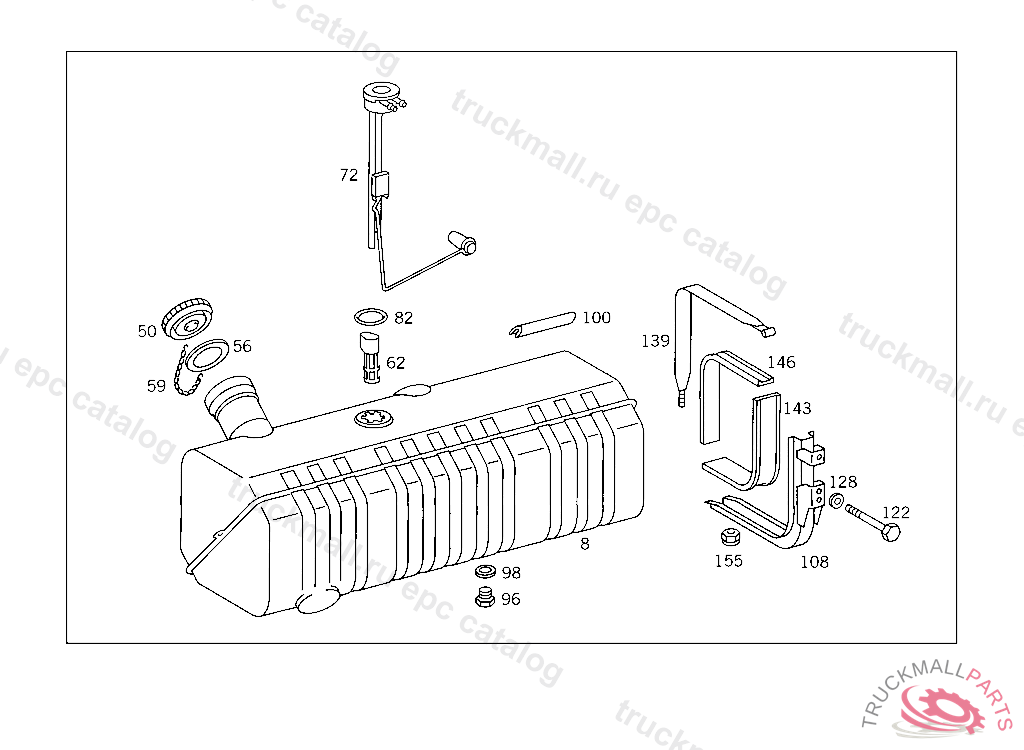

Поз.
Артикул
Описание
50
FILLER CAP
50
FILLER CAP
56
SEAL RING
56
SEAL RING
56
SEAL RING
59
CHAIN FILLER CAP
59
CHAIN FILLER CAP
62
FUEL STRAINER FUEL TANK,K 169122
62
FUEL STRAINER FUEL TANK,K 169122
82
SEAL RING FUEL GAUGE SENDER UNIT TO FUEL TANK
82
SEAL RING FUEL GAUGE SENDER UNIT TO FUEL TANK
82
SEAL RING FUEL GAUGE SENDER UNIT TO FUEL TANK
96
SCREW PLUG , Replaced By: A2109970132
96
SCREW PLUG , Replaced By: A1159970032
96
SCREW PLUG
96
SCREW PLUG , Replaced By: A2109970132
96
SCREW PLUG FUEL TANK
96
SCREW PLUG FUEL TANK
98
SEAL RING FUEL LINE TO FEED PUMP
98
SEAL RING FUEL LINE TO FEED PUMP
98
SEAL RING AT TANK, FOR USE WITH SHORT MERCEDES-BENZ CAB5 3506525 495522
98
SEAL RING AT TANK, FOR USE WITH SHORT MERCEDES-BENZ CAB5 3506525 495522
122
SCREW BRACKET TO SIDE MEMBER
122
SCREW BRACKET TO SIDE MEMBER
122
SCREW SUPPORT TO SIDE MEMBER
122
SCREW SUPPORT TO SIDE MEMBER
122
SCREW , Replaced By: N000961012025
122
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
122
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
122
SCREW , Replaced By: N308676012026
122
SCREW , Replaced By: N308676012026
128
WASHER PROTECTIVE PLATE TO BRACKET,5 502998
128
WASHER BRACKET TO FRAME
128
WASHER BRACKET TO FRAME
143
PAD FUEL TANK TO SUPPORT, ORDER BY THE METER
143
PAD FUEL TANK TO SUPPORT, ORDER BY THE METER
146
PAD FUEL TANK TO SUPPORT, ORDER BY THE METER
