Поз.
Артикул
Описание

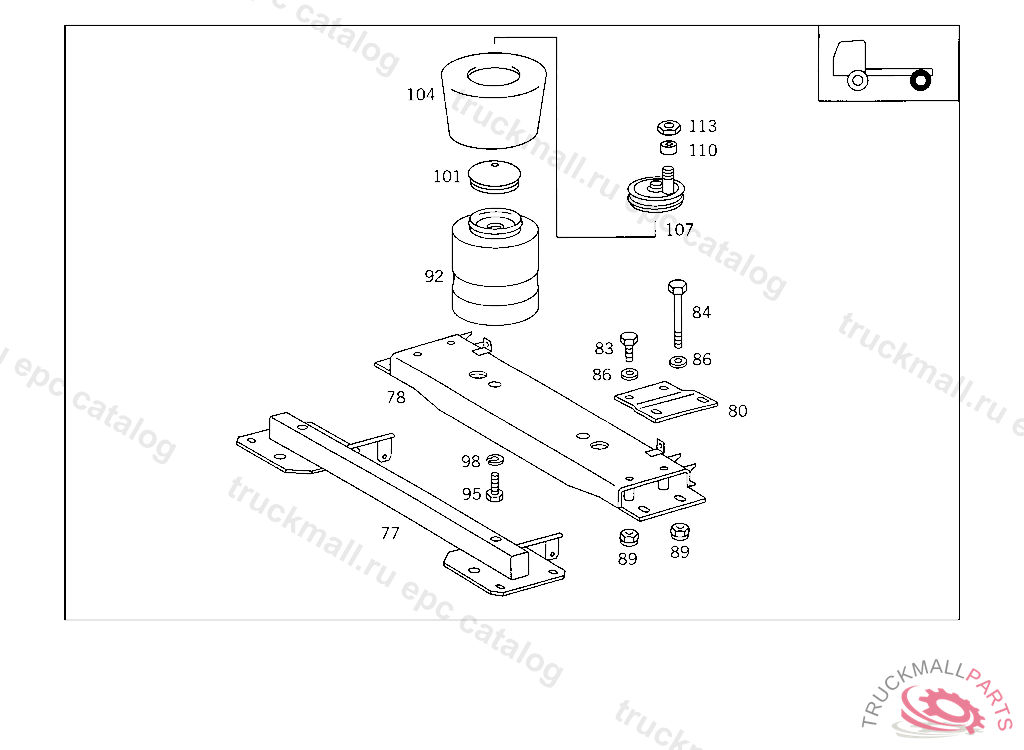

77
SUPPORT BOTTOM AIR SPRING BELLOWS,REAR AXLE
78
SUPPORT BOTTOM AIR SPRING BELLOWS,REAR AXLE
78
SUPPORT BOTTOM AIR SPRING BELLOWS,REAR AXLE,5 304391
80
COVER PLATE TOP RIGHT,5 905403
80
COVER PLATE TOP LEFT,5 905403
83
SCREW SHOCK ABSORBER TO TOP BRACKET
84
SCREW , Replaced By: N000960016250
84
SCREW SHOCK ABSORBER TO BOTTOM BRACKET M 16X85
84
SCREW RUBBER MOUNTING TO SUPPORTING ARM M16X80,5 566418
86
WASHER TORSION BAR TO BEARING BRACKET
86
WASHER TORSION BAR TO BEARING BRACKET, Replaced By: N007349017003
89
NUT COMBINATION CYLINDER TO BEARING BRACKET
89
NUT COMBINATION CYLINDER TO BEARING BRACKET
89
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
92
PISTON AIR SPRING BELLOWS
92
PISTON AIR SPRING BELLOWS
95
SCREW BEARING BRACKET TO INTERMEDIATE PIECE
95
SCREW SHOCK ABSORBER TO TOP BRACKET
98
LOCK WASHERROCKINGER TYP 59 G140,59 G150
101
RUBBER BUFFER (RUBBER STOP),EMERGENCY RUNNING,K 017385
104
AIR SPRING BELLOWS
104
AIR SPRING BELLOWS
104
AIR SPRING BELLOWS
104
AIR SPRING BELLOWS
107
STOP AIR SPRING BELLOWS,TOP LEFT
107
STOP AIR SPRING BELLOWS,TOP RIGHT
110
SPACER TUBE STOP TO PLATE
113
NUT CHECK VALVE TO AIR RESERVOIR
999
BALL JOINT TRAVEL SENSOR
999
BALL JOINT LEFT-HAND THREAD,BALL DIAMETER 10 MM
999
REPAIR KIT REDUCTION VALVE
999
VALVE (THROTTLE CHECK VALVE)
999
VALVE (REDUCTION VALVE) 1,15:1
999
BRACKET REDUCTION VALVE, SIMPLE PART-PLEASE HAVE SHOP MADE
999
SEAL RING LINE CONNECTION
999
SCREW PLUGROCKINGER TYP 59 G140,59 G150, Replaced By: N007604012105
999
SCREW PLUGROCKINGER,TYP 59 U150
999
NUT
999
NUT BALL SOCKET TO ROD
999
PULL ROD PNEUMATIC SUSPENSION CONTROL
