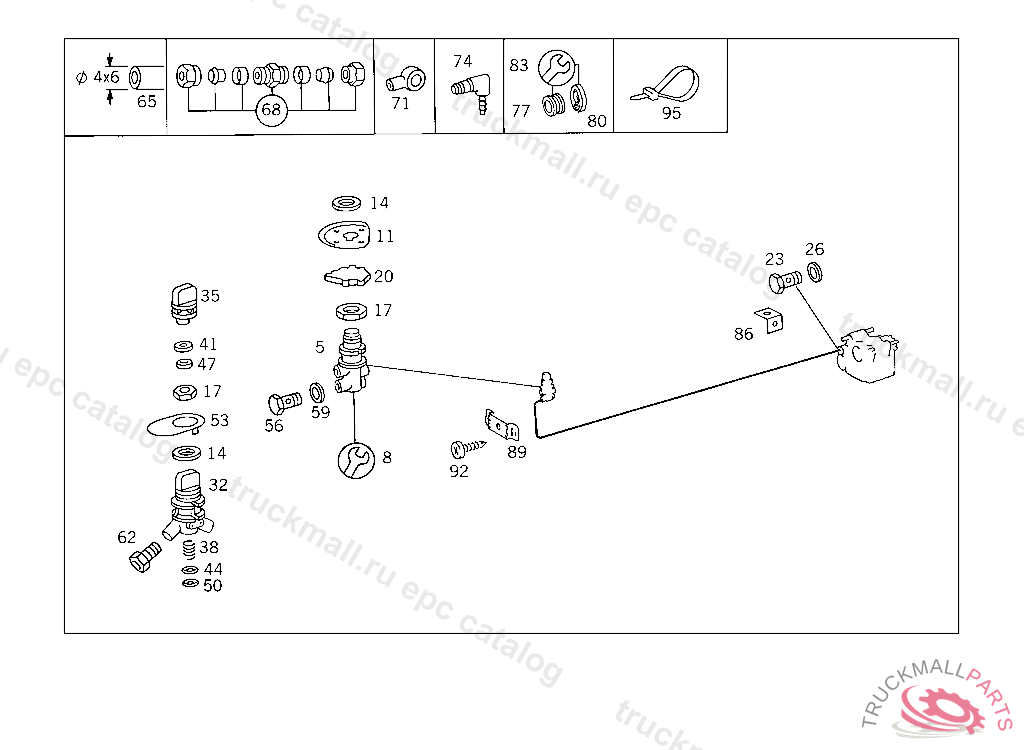

Поз.
Артикул
Описание
5
VALVE 4/3-WAY, TRANSFER CASE ACTUATION BOSCH
5
VALVE 4/3-WAY, TRANSFER CASE ACTUATION WABCO
8
REPAIR KIT 4/3-WAY VALVE WABCO
11
UNIT IDENTIFICATION PLATE ON-ROAD/OFF-ROAD SPEED
14
WASHER AT TWO-WAY VALVE
17
NUT 4/3-WAY VALVE TO SUBSTRUCTURE
20
HANDLE VALVE
23
HOLLOW SCREW HEATING CONNECTION
26
SEAL RING LINE CONNECTION
32
VALVE DIFFERENTIAL LOCK CONTROL BOSCH
32
VALVE DIFFERENTIAL LOCK CONTROL WABCO
35
ACTUATING PARTWABCO
35
PROTECTIVE CAPBOSCH
38
SPRING INSIDE WABCO
41
SEAL RING INSIDE WABCO
44
SEAL RING
47
SEAL RING TOP WABCO
50
SEAL RING
53
UNIT IDENTIFICATION PLATE LONGITUDINAL DIFFERENTIAL LOCK
56
HOLLOW SCREW LINE CONNECTION
59
SEAL RING LINE CONNECTION
62
SCREW. UNION SCREW LINE CONNECTION
62
SCREW. UNION SCREW , Replaced By: A0009973734
65
PLASTIC PIPE RISING PIPE 4X6 MM
65
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
68
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
71
BANJO UNION HOSE WIDTH, / I.D., 4/10 MM
71
BANJO UNION HOSE WIDTH, / I.D., 4/12 MM
74
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
77
SEAL RING , Replaced By: A0009940747
77
LOCK RING LINE CONNECTION
80
LOCK LINE CONNECTION
80
LOCK , Replaced By: A0009945448
83
REPAIR KIT COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
83
REPAIR KIT , Replaced By: A0309971748
86
BRACKET SENSOR CABLE TO FRONT AXLE
89
BRACKET COMPRESSED AIR LINE MOUNTING,5 181197
92
SHEET METAL SCREW FUEL STRAINER SCREEN TO FUEL TANK
92
SHEET METAL SCREW , Replaced By: N000000000459
95
LOOM TIE LINE MOUNTING 280 MM
95
LOOM TIE LINE MOUNTING
