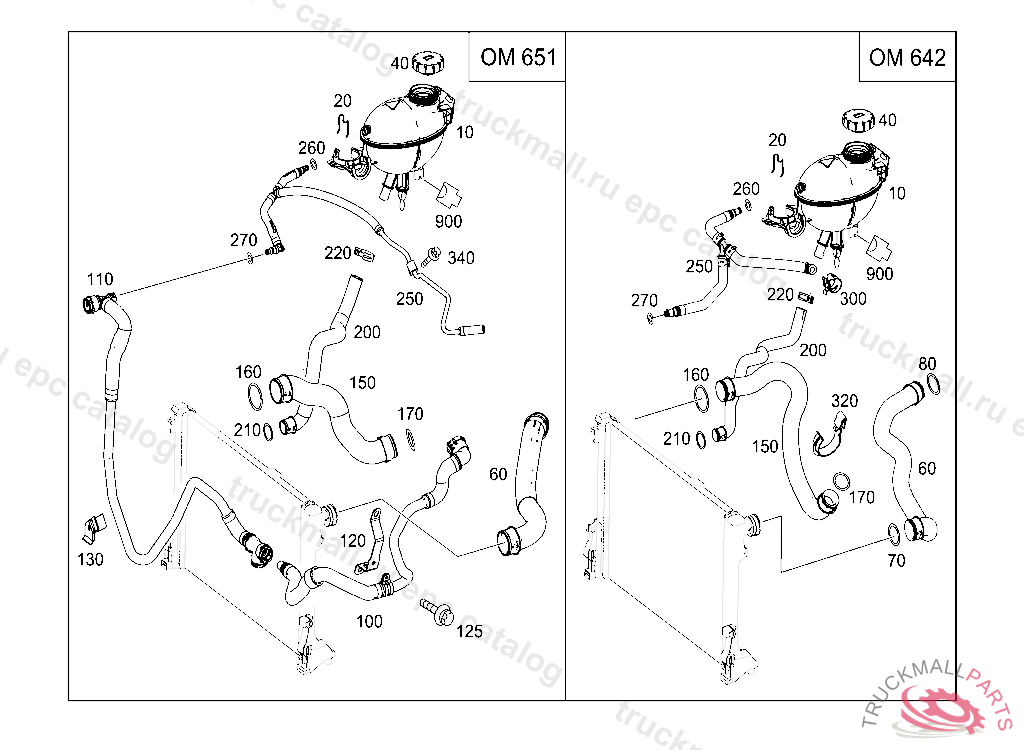

Поз.
Артикул
Описание
10
EXPANSION RESERVOIR
10
COMPENSATING TANK , Replaced By: A2045000749
20
STOP SPRING VENT LINE AT COOLER, RIGHT 8.8 MM
40
CLOSING COVER
60
HOSE LEFT AT RADIATOR, A 48477420101108 F 64034220110131
70
O-RING COOLANT HOSE, RIGHT, TO RADIATOR
70
SEALING RING COOLANT HOSE, RIGHT, TO RADIATOR 39.3 MM, Replaced By: A0269976745
80
SEALING RING COOLANT HOSE TO ENGINE 36.3 MM
150
HOSE RIGHT AT RADIATOR
160
O-RING COOLANT HOSE, RIGHT, TO RADIATOR
160
SEALING RING COOLANT HOSE, RIGHT, TO RADIATOR 39.3 MM, Replaced By: A0269976745
170
SEALING RING COOLANT HOSE TO ENGINE 36.3 MM
200
COOLANT FILLING HOSE FROM EXPANSION TANK TO RADIATOR
210
SEALING RING FILLING HOSE TO RADIATOR 21,35MM
220
CLAMP25 MM
250
VENT LINE FROM RIGHT COOLER TO EXPANSION RESERVOIR AND ENGINE
250
VENT LINE
250
BREATHER LINE , A 04028920111222
260
O-RING VENT LINE TO RADIATOR 6,07MMX 1,78 MM
270
O-RING VENT LINE TO RADIATOR 6,07MMX 1,78 MM
300
CLAMP14 MM
320
BRACKET HOSE TO OIL FILTER HOUSING
900
CLUTCH DOOR LOCK, FRONT 4-PIN MLK1.2,A85, A85/1
