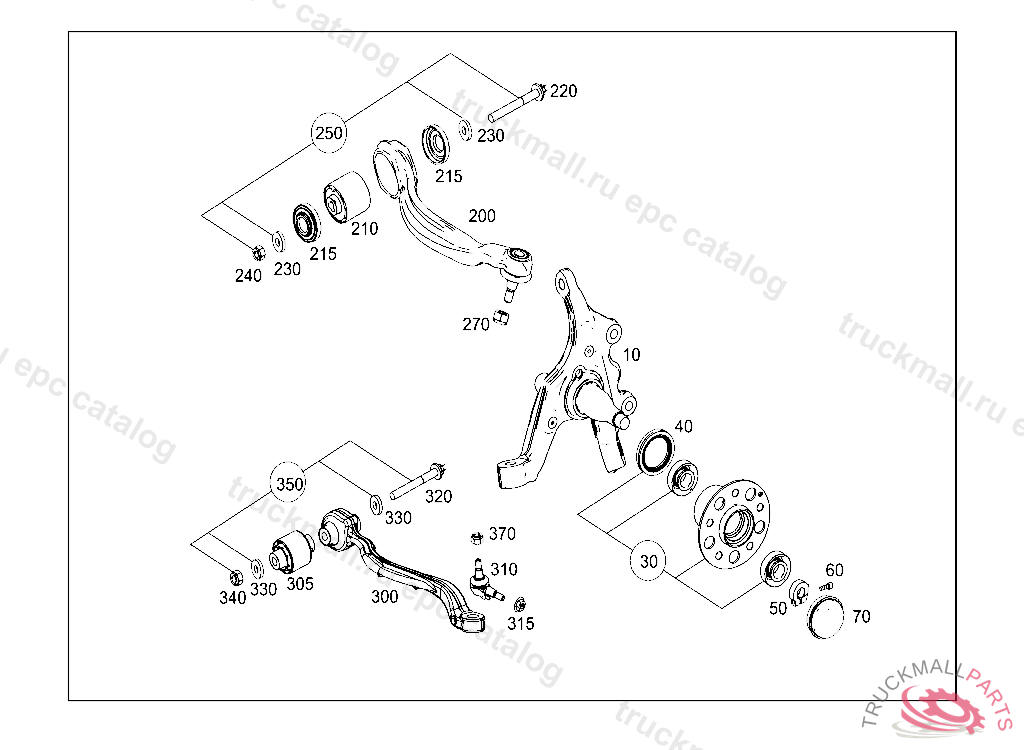

Поз.
Артикул
Описание
10
STEERING KNUCKLE LEFT
10
STEERING KNUCKLE RIGHT
30
FRONT WHEEL HUB LEFT
40
SEAL RING
50
CLAMPING NUT
60
HEXALOBULAR BOLTM6X25
70
LOCKING CAP FRONT WHEEL HUB TO STEERING KNUCKLE
200
STRUT ROD LEFT WITH BEARING
200
STRUT ROD RIGHT WITH BEARING
210
BEARING TENSION ROD LEFT
215
SEALING BELLOWS TENSION ROD RIGHT
220
HEXAGON HEAD BOLT SUPPORT TO FRAME M14X1.5X120
220
ADJUSTMENT SCREW FOR ADJUSTING WORK ONLY
230
INDEXING PLATE FOR ADJUSTING WORK ONLY
230
SPACER DISK TORQUE STRUT TO FRAME-TYPE INT. SUPP.
240
HEXAGON NUT STEER. KNUCKLE TO TRAN. CON. ARM RIGHT M14X1,5
240
NUT W FLANGE, BINDING FOR ADJUSTING WORK ONLY
250
TS ADJUSTMENT SCREW FOR ADJUSTING WORK ONLY
270
NUT TRANSVERSE CONTROL ARM TO INTEGRAL CARRIER, RIGHT M14X1.5
300
CROSS MEMBER RIGHT
300
CROSS MEMBER LEFT
300
CROSS MEMBER RIGHT
300
CROSS MEMBER LEFT
310
JOINT CROSS STRUT, IMPORTANT: UP TO CHASSIS NUMBER A001281 STEERING KNUCKLE MUST ALSO BE EXCHANGED, OBSERVE WIS!
315
NUT TRANSVERSE CONTROL ARM TO INTEGRAL CARRIER, RIGHT M14X1.5
320
ADJUSTMENT SCREW FOR ADJUSTING WORK ONLY
320
HEXAGON HEAD BOLT SUPPORT TO FRAME M14X1.5X120
330
SPACER DISK TORQUE STRUT TO FRAME-TYPE INT. SUPP.
330
INDEXING PLATE FOR ADJUSTING WORK ONLY
340
NUT W FLANGE, BINDING FOR ADJUSTING WORK ONLY
340
HEXAGON NUT STEER. KNUCKLE TO TRAN. CON. ARM RIGHT M14X1,5
350
TS ADJUSTMENT SCREW FOR ADJUSTING WORK ONLY
370
NUT TRANSVERSE CONTROL ARM TO INTEGRAL CARRIER, RIGHT M14X1.5
