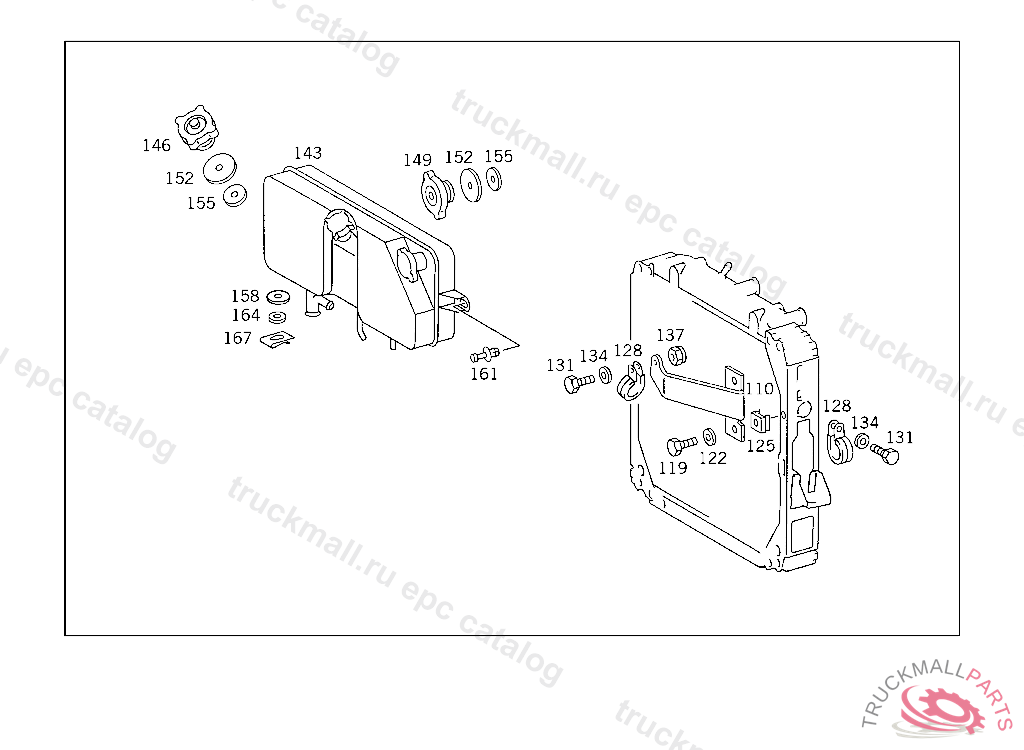

Поз.
Артикул
Описание
110
BRACKET OIL DIPSTICK TO RADIATOR
119
SCREW , Replaced By: A0079900801
119
SCREW REDUCTION VALVE TO BRACKET
119
SCREW BRACKET TO WATER RADIATOR
119
SCREW BRACKET ON LOAD SENSOR
119
SCREW DE-AERATION LINE TO RADIATOR
122
WASHER , Replaced By: N000125008443
122
WASHER EXHAUST MUFFLER TO STRAP
122
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
122
WASHER COMPRESSED AIR LINE TO BRACKET
125
NUT RETAINER , Replaced By: A0009902291
125
NUT RETAINER , Replaced By: A0019906791
125
NUT RETAINER LICENSE PLATE TO BRACKET
128
CLAMP OIL DIPSTICK TO RADIATOR
128
CLAMP OIL DIPSTICK TO BRACKET
131
SCREW , Replaced By: N304017008021
131
SCREW PIPE CLAMP
131
SCREW , Replaced By: A0079900801
131
SCREW REDUCTION VALVE TO BRACKET
131
SCREW BRACKET TO WATER RADIATOR
134
WASHER , Replaced By: N000125008443
134
WASHER EXHAUST MUFFLER TO STRAP
134
WASHER EXHAUST MUFFLER TO STRAP
137
NUT , Replaced By: N913004008001
137
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
143
TANK , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 941451, Replaced By: A6745000049, +001A6745012082, +001A6745012182
143
TANK EXPANSION TANK
146
RADIATOR CAP FILLER NECK
146
RADIATOR CAP FILLER NECK
146
RADIATOR CAP , Replaced By: A0005016415
146
RADIATOR CAP FILLER NECK
149
RADIATOR CAP
152
GASKET O.D., 52 MM
155
GASKET O.D., 37 MM
158
RUBBER MOUNTING RESERVOIR TO CAB FRONT PANEL
161
RIVET COOLANT LINE ON FAN SHROUD
164
WASHER , Replaced By: N000125017016
164
WASHER BRACKET TO FRAME
167
CLIP RESERVOIR TO CAB FRONT PANEL
