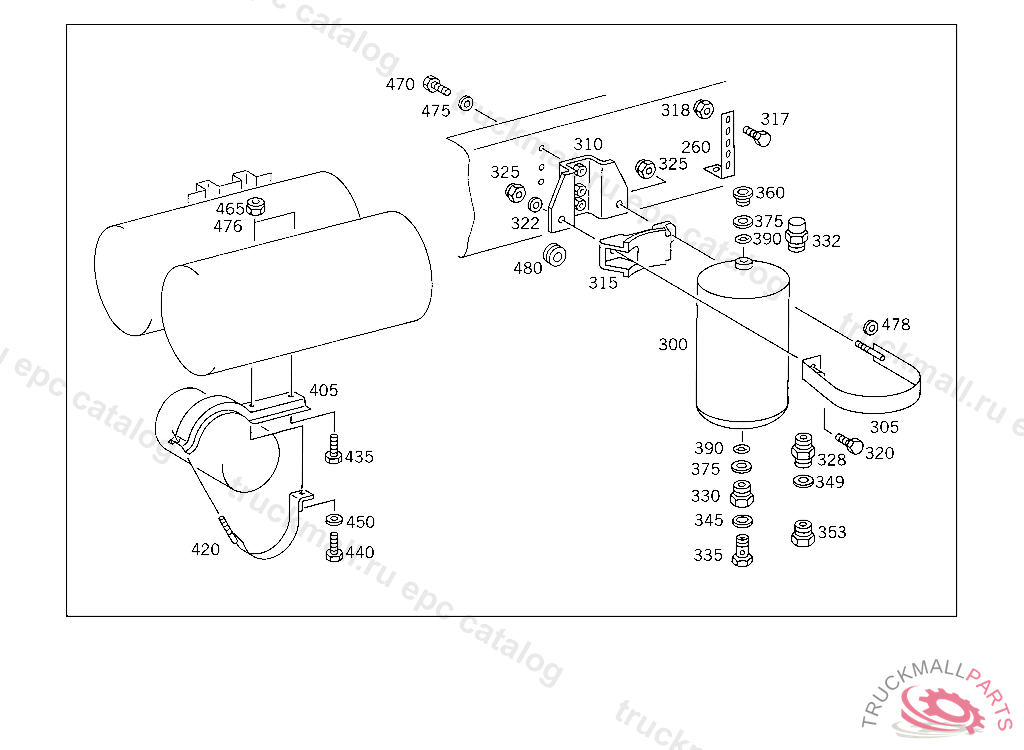

Поз.
Артикул
Описание
260
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
300
RESERVOIR30L,276 MM,8.5 BAR
300
RESERVOIR COMPRESSED AIR 30 L, TO VOSS 232,5 9363665 812731 FOR VEHICLES WITH VOSS 230 CONNECTOR: ADD. MOUNT FITTING "A 004 997 82 72" WITH O-RING "A 000 987 04 46" AND THRUST RING "A 000 997 02 03" TO AIR RESERVOIR
300
RESERVOIR , Replaced By: A0054322201, +002A0009870446, +002A0009940203, +002A0049978272
300
RESERVOIR SERVICE BRAKE 30 L, Replaced By: A0034322101
300
RESERVOIR ,5 9363655 812730, Replaced By: A0034320301, +001A0009970834, +001A0059977672
300
RESERVOIR SERVICE BRAKE 30 L, Replaced By: A0024320801
300
RESERVOIR COMPRESSED AIR 4 L,EURO,5 9363665 812731
305
STRAP AIR RESERVOIR
310
BRACKET AIR RESERVOIR
310
BRACKET , Replaced By: A6764320240
315
BASE AIR RESERVOIR TO RIGHT SIDE MEMBER, INSIDE
317
SCREW BRACKET TO LEFT SIDE MEMBER M 10X1X30
318
HEXAGON NUT
320
SCREW PIPE CLAMP
320
SCREW , Replaced By: N304017008021
322
WASHER , Replaced By: N000125008443
322
WASHER EXHAUST MUFFLER TO STRAP
325
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
325
NUT , Replaced By: N913004008001
328
FITTING AIR RESERVOIR,CONNECTION: "15",5 433280
330
FITTING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
332
FITTING LINE CONNECTION
332
FITTING AIR RESERVOIR,CONNECTION: "26", NOT USED
335
HOLLOW SCREW HEATING CONNECTION
345
SEAL RING LINE CONNECTION
349
SEAL RING AIR RESERVOIR,CONNECTIONS: "24,34"
353
SCREW. UNION SCREW LINE CONNECTION
353
SCREW. UNION SCREW LINE CONNECTION
353
SCREW. UNION SCREW , Replaced By: A0009973734
360
SCREW PLUG , Replaced By: N000908022011
360
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
375
SEAL RING AIR RESERVOIR,CONNECTIONS: "24,34"
375
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
375
THRUST RING CHECK VALVE TO AIR RESERVOIR
390
O-RING CHECK VALVE TO AIR RESERVOIR
405
BRACKET AIR RESERVOIR,5 9363655 812730
420
STRAP AIR RESERVOIR TO BRACKET
420
STRAP , Replaced By: A6734301140
435
SCREW END PIECE TO EXHAUST PIPE M 10X25
440
SCREW BRACKET TO SIDE MEMBER
440
SCREW , Replaced By: N304017010002
450
WASHER , Replaced By: N000125010532
450
WASHER RADIATOR TO RUBBER MOUNTING
465
NUT STRAP TO BRACKET
465
NUT , Replaced By: N910113010000
470
SCREW , Replaced By: N304017010002
470
SCREW , Replaced By: N304017008021
470
SCREW END PIECE TO EXHAUST PIPE M 10X25
470
SCREW BRACKET TO SIDE MEMBER
470
SCREW BRACKET TO TORSION BAR,4 9511495 554754
470
SCREW CROSS MEMBER TO FRAME M 10X30
470
SCREW PIPE CLAMP
470
SCREW CONSOLE TO SIDE MEMBER
475
WASHER BRACKET TO LEFT SIDE MEMBER
475
WASHER , Replaced By: N009021008213
475
WASHER , Replaced By: N006902011102
475
WASHER , Replaced By: N006902011100
475
WASHER UNDERRUN PROTECTION AND BRACKET TO FRAME
475
WASHER BRACKET TO FRAME
476
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
476
NUT , Replaced By: N910113010000
476
NUT , Replaced By: N913004008001
476
NUT END PIECE TO EXHAUST PIPE
476
NUT STRAP TO BRACKET
478
WASHER BRACKET TO LEFT SIDE MEMBER
478
WASHER , Replaced By: A3609902340
480
GROMMET LINE THRU LEFT SIDE MEMBER
999
BANJO UNION HEATING CONNECTION,K 169122
999
HOLLOW SCREW , Replaced By: N915036010108
999
HOLLOW SCREW FUEL LINE TO FEED PUMP
999
NUT , Replaced By: N913004008001
999
NUT , Replaced By: N913004006001
999
NUT PUMP TO BRACKET
999
SCREW VALVE TO BRACKET M 8X55
999
SCREW PUMP TO BRACKET
999
SCREW VALVE TO BRACKET
999
SEAL RING FUEL LINE TO FEED PUMP
999
SCREW , Replaced By: N304017006016
999
SCREW , Replaced By: N304017008043
999
SCREW VALVE TO BRACKET, Replaced By: N304014008002
999
BRACKET 3/2-WAY VALVE TO BRACKET,5 9363655 812730
999
SUPPORT FLUID RESERVOIR,5 287295SCHRAUBANSCHLUSS
999
BRACKET FLUID RESERVOIR,5 936365
999
BRACKET , Replaced By: A6764320240
999
BRACKET SOLENOID VALVE
999
SEAL RINGKNORR
999
SEAL RING , Replaced By: A0179978148
999
SEAL RING , Replaced By: A0005480870
999
SEAL RINGWABCO
999
FITTING LINE CONNECTION
999
VALVE (3/2-WAY SOLENOID VALVE) EKS
999
VALVE SHUTTLE VALVE, REPAIR IMPOSSIBLE
999
VALVE , Replaced By: A0049975736
999
VALVE (3/2-WAY SOLENOID VALVE), PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
GASKET KITKNORR
999
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION,K 186868
999
VALVE (PRESSURE LIMIT VALVE)
999
SEAL HOLDER SEAL RINGS KNORR
999
GASKET KIT SEAL RINGS KNORR,5 937586
999
FITTING AIR RESERVOIR,CONNECTIONS: "10,20"
999
RESERVOIR ,5 934167, Replaced By: A0034320301
999
RESERVOIR , Replaced By: A0034322001
999
RESERVOIR ,5 9363655 812730, Replaced By: A0034320301, +001A0009970834, +001A0059977672
999
RESERVOIR , Replaced By: A0024311602, +001A0004317833
999
PROTECTIVE CAPWABCO
999
SCREW. UNION SCREW , Replaced By: A0009973734
999
HEATER , Replaced By: A0005480670
999
HEATER , Replaced By: A0005480870
999
ANTI-FREEZE DEVICEWABCO
999
AIR DEHYDRATOR"WABCO",5 9363665 812731
999
CONNECTOR BRAKE POWER REGULATOR,CONNECTION: "30"
999
CONNECTOR BRAKE POWER REGULATOR,CONNECTION: "30"
999
ADAPTER FITTING FLUID RESERVOIR TO BRACKET
