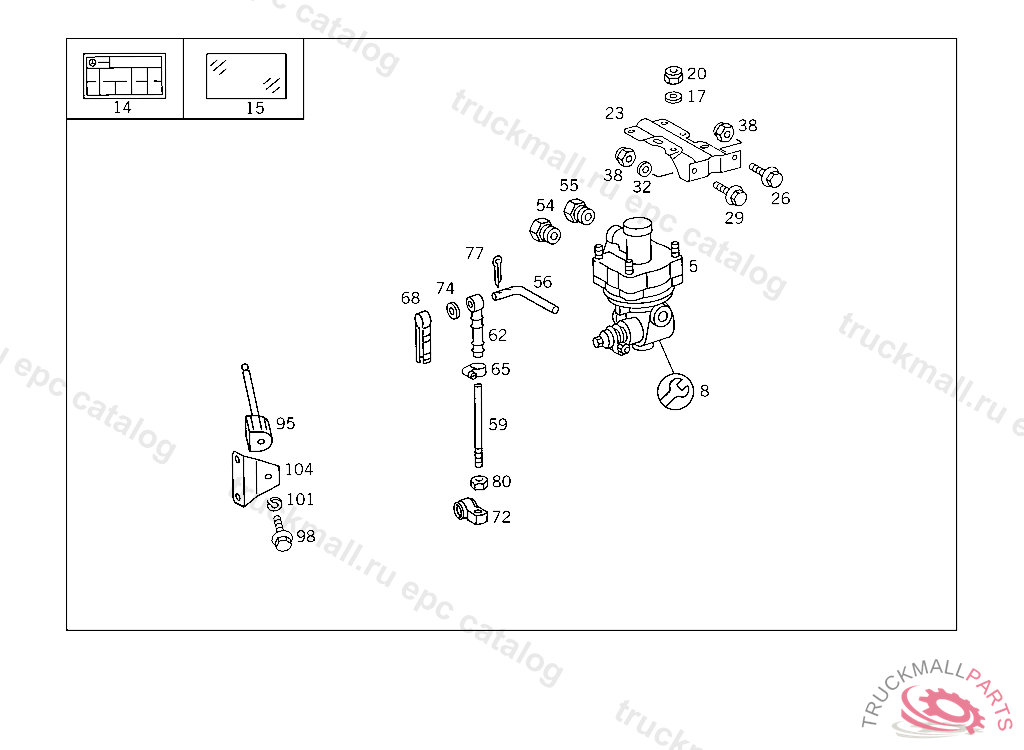

Поз.
Артикул
Описание
5
BRAKE PRESSURE REGULATOR LOAD-DEPENDING BRAKE KNORR
5
BRAKE PRESSURE REGULATOR LOAD-DEPENDING BRAKE BOSCH, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
5
BRAKE PRESSURE REGULATOR LOAD-DEPENDING BRAKE WABCO, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
8
REPAIR KIT BRAKE POWER REGULATOR WABCO
8
REPAIR KIT BRAKE POWER REGULATOR BOSCH
8
REPAIR KIT BRAKE POWER REGULATOR KNORR
14
GUIDE SIGN ON CAB DOOR,RIGHT
14
GUIDE SIGN ON CAB DOOR,RIGHT
15
ADHESIVE FOIL GUIDE SIGN
15
ADHESIVE FOIL GUIDE SIGN
17
WASHER , Replaced By: N000125008443
17
WASHER EXHAUST MUFFLER TO STRAP
20
NUT BRACKET TO BRACKET
23
BRACKET BRAKE POWER REGULATOR
26
SCREW , Replaced By: N000000001441
26
HEXALOBULAR BOLT BATTERY BASE FRAME TO BATTERY/APPARATUS SUPPORT M 10X50
29
SCREW LEFT CONSOLE TO FRAME M 12X1.5X50, FOR USE WITH SHORT VERSION OF MERCEDES-BENZ CAB
32
WASHER BRACKET TO FRAME
38
NUT , Replaced By: N913023010002
38
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
38
NUT SUPPORT TO SIDE MEMBER
54
SCREW. UNION SCREW LINE CONNECTION
55
SCREW. UNION SCREW , Replaced By: A0009973734
55
SCREW. UNION SCREW LINE CONNECTION
56
LEVER BRAKE POWER REGULATOR CONTROL, TO BE ADAPTED DURING ASSEMBLY
59
PULL ROD FROM CONTROL SHAFT BEARING TO ENGINE SHAFT, TO BE ADAPTED DURING ASSEMBLY
62
CONNECTOR PULL ROD TO LEVER
65
CLAMP , Replaced By: N000000000665
65
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
68
CLAMP CONNECTOR TO BRAKE PRESSURE REGULATOR LEVER
72
BALL SOCKET PULL ROD
74
WASHER , Replaced By: N000125008443
74
WASHER EXHAUST MUFFLER TO STRAP
77
COTTER PIN CONNECTOR TO BRAKE PRESSURE REGULATOR LEVER
80
NUT FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
95
METAL SPRING BELLOWS BRAKE POWER REGULATOR CONTROL,5 557360K 049885
98
SCREW STRUT TO CONSOLE
101
LOCK WASHER FITTING TO BRACKET
104
BRACKET BRACKET TO REAR AXLE HOUSING
