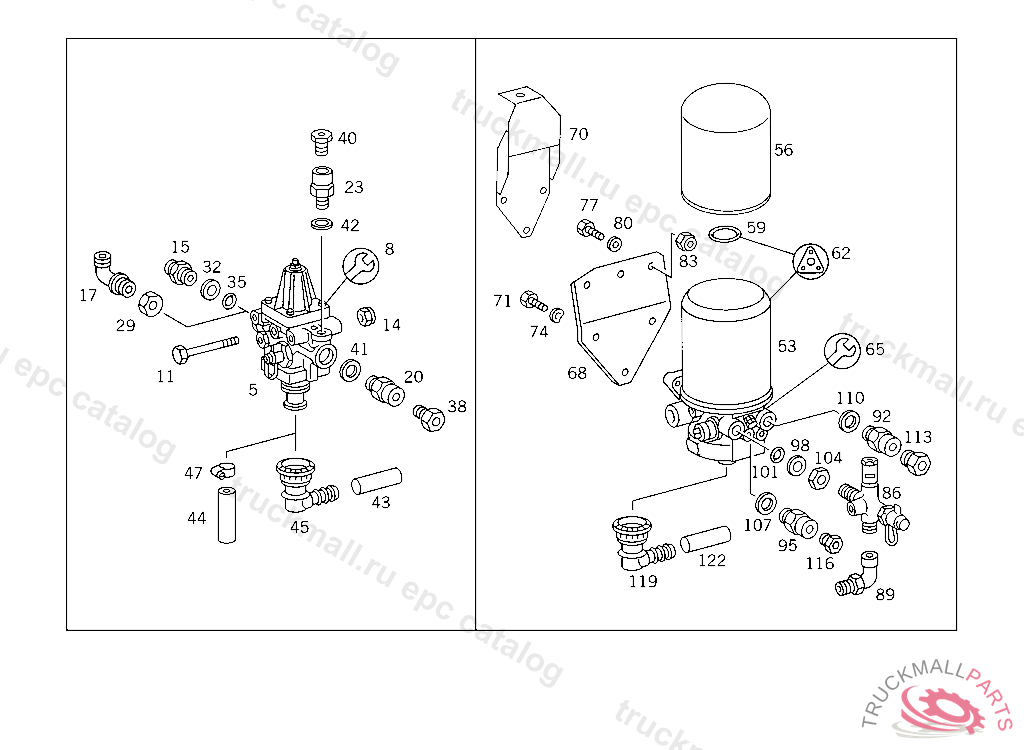

Поз.
Артикул
Описание
5
PRESSURE REGULATORBOSCH,241, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
5
PRESSURE REGULATORWABCO
8
REPAIR KIT PRESSURE REGULATOR WABCO
8
REPAIR KIT PRESSURE REGULATOR BOSCH,241
11
SCREW REAR AXLE REGULATING SOLENOID VALVE
14
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
14
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
14
NUT , Replaced By: N913004008001
15
FITTING AIR DEHYDRATOR,CONNECTION: "10",5 433280
20
FITTING LINE CONNECTION
23
FITTING LINE CONNECTION
29
NUT CHECK VALVE TO AIR RESERVOIR
32
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
32
THRUST RING CHECK VALVE TO AIR RESERVOIR
35
O-RING CHECK VALVE TO AIR RESERVOIR
38
SCREW. UNION SCREW LINE CONNECTION
40
SCREW. UNION SCREW LINE CONNECTION
40
SCREW. UNION SCREW , Replaced By: A0009973734
41
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
42
SEAL RING LINE CONNECTION
43
PLASTIC PIPE FUEL LINE 16X2 MM, ORDER BY THE METER
43
HOSE , Replaced By: A0009872927
45
CONNECTOR BLEEDING
47
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
47
CLAMP , Replaced By: N000000000667
53
AIR DEHYDRATORKNORR,5 937586, Replaced By: A0024317015
53
AIR DEHYDRATOR WITH PRESSURE REGULATOR KNORR,K 126821
53
AIR DEHYDRATOR WITH PRESSURE REGULATOR BOSCH,K 126821
53
AIR DEHYDRATORBOSCH,5 937586
53
AIR DRIERKNORR,5 937586
53
AIR DEHYDRATORWABCO,5 937586 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
56
AIR CLEANER COMPLETE KNECHT:TO BOSCH,KNORR
56
AIR CLEANER COMPLETE TO BOSCH,KNORR
59
SEAL RINGWABCO
62
GASKET KITKNORR
62
GASKET KIT SEAL RINGS KNORR,5 937586
62
GASKET KITWABCO
65
REPAIR KIT PRESSURE REGULATOR KNORR,K 126821
65
REPAIR KIT PRESSURE REGULATOR BOSCH,K 126821
68
BRACKET AIR DEHYDRATOR,K 126821
68
BRACKET AIR DEHYDRATOR,5 9363655 812730
71
SCREW STRUT TO CONSOLE
71
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
74
SPRING WASHER CAB FLOOR
74
SPRING WASHER AIR COMPRESSOR LINE TO ENGINE,5 812731 - 5 8174215 936366 - 5 999999K 000001N 817422K 126820
77
SCREW , Replaced By: N308676012026
77
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
80
WASHER BRACKET TO FRAME
83
NUT SUPPORT TO SIDE MEMBER
86
FITTING AIR DEHYDRATOR
98
THRUST RING CHECK VALVE TO AIR RESERVOIR
98
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
101
O-RING CHECK VALVE TO AIR RESERVOIR
104
NUT CHECK VALVE TO AIR RESERVOIR
113
SCREW. UNION SCREW LINE CONNECTION
116
SCREW. UNION SCREW LINE CONNECTION
116
SCREW. UNION SCREW , Replaced By: A0009973734
119
CONNECTOR BLEEDING
119
CONNECTOR 90 DEG. OFFSET
