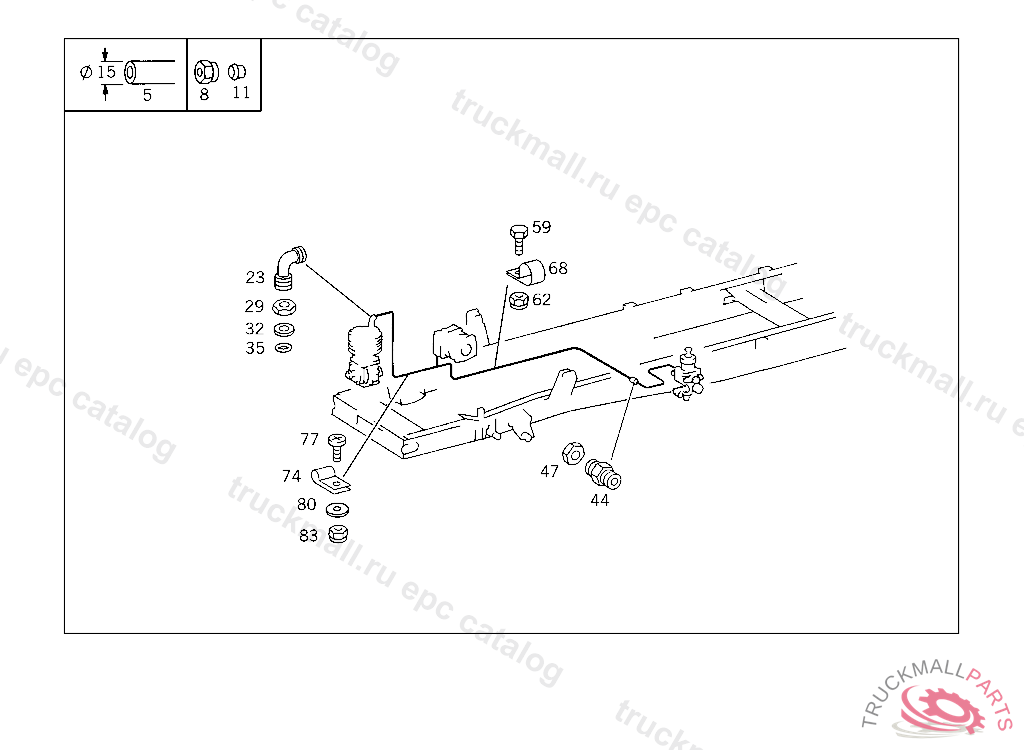

Поз.
Артикул
Описание
5
LINE AIR COMPRESSOR,PRESSURE REGULATOR, DEHYDRATOR 15X1.5 MM, LENGTH AVAILABLE: 3000 MM
8
UNION NUT LINE CONNECTION
11
GLAND LINE CONNECTION
23
ELBOW FITTING , Replaced By: A0039901671
23
ELBOW FITTING ENGINE AIR COMPRESSOR,CONNECTION: "20", Replaced By: A6209900071
23
ELBOW FITTING , Replaced By: A0039901671
29
NUT SUCTION LINE TO OIL PUMP
32
THRUST RING SUCTION LINE TO OIL PUMP
35
SEAL RING LINE CONNECTION
44
BULKHEAD FITTING THROUGH SIDE MEMBER
44
BULKHEAD FITTING THROUGH SIDE MEMBER
47
NUT CHECK VALVE TO AIR RESERVOIR
47
NUT CHECK VALVE TO AIR RESERVOIR
47
NUT CHECK VALVE TO AIR RESERVOIR
59
SCREW COMPRESSED AIR LINE TO LEFT SIDE MEMBER
59
SCREW , Replaced By: A0099900101
59
SCREW , Replaced By: N000933008337
62
NUT , Replaced By: N913004008001
68
CLAMP HOSE TO BRACKET 25/20,5 206397
68
CLAMP , Replaced By: N916016025200
74
CLAMP DELIVERY AND SUCTION LINES TO STEERING
77
SCREW CLAMP TO BRACKET
77
SCREW CLAMP TO BRACKET, Replaced By: N007985006581
80
WASHER COMPRESSED AIR LINE TO BRACKET
80
WASHER , Replaced By: N009021006208
83
NUT PUMP TO BRACKET
83
NUT , Replaced By: N913004006001
999
CONNECTOR RELEASE BEARING LUBRICATION
999
SEAL RING CONNECTOR 11.8X2 MM
999
CONNECTOR , Replaced By: A0019904078
999
GROMMET LINE MOUNTING
