Поз.
Артикул
Описание

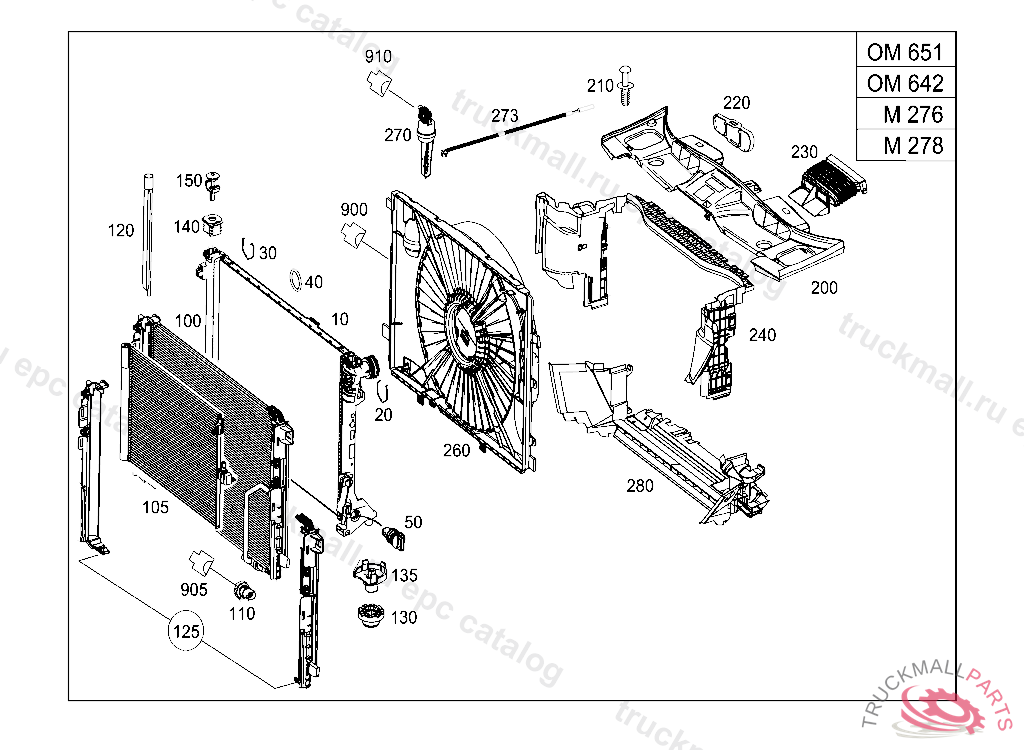

10
WATER COOLER
20
DETENT SPRING COOLANT HOSE, LEFT, TO RADIATOR SCB3646.4MM
30
DETENT SPRING COOLANT HOSE, LEFT, TO RADIATOR SCB3646.4MM
30
DETENT SPRING OIL LINE
30
DETENT SPRING FILLING HOSE TO RADIATOR SCB1727MM
30
STOP SPRING VENT LINE AT COOLER, RIGHT 8.8 MM
40
O-RING TRANSMISSION OIL LINE TO OIL COOLER 9.25X1.78
50
DRAIN PLUG DRAIN PLUG
100
REFRIGERANT CONDENSER COMPLETE
105
CAPACITOR
110
PRESSURE SENSOR
120
REFRIGERANT DRIER F AC
125
BRACKET LEFT AND RIGHT CONDENSER
125
MOUNTING FRAME CONDENSER
130
ELASTOMER BEARING RADIATOR BOTTOM
135
RADIATOR BEARING REPAIR SOLUTION, COOLER, BOTTOM LEFT AND RIGHT
140
BEARING TOP LEFT AND RIGHT, J 06236120041209
150
CLIP RADIATOR TOP
200
COLD AIR INDUCTION
210
EXPANSION RIVET MOUNTING, COVER
240
AIR DUCT SEGMENT TOP
240
AIR DUCT TOP, FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. A 11386820131109, Replaced By: A2185052730
260
BLOWER850 W
270
VACUUM BOX
273
HOSE ASSEMBLY FROM VACUUM BOX TO INTAKE MANIFOLD
280
AIR DUCT BOTTOM
900
PIN BUSHING HOUSING ENGINE CABLE HARNESS PLUG-CONNECTION 4-PIN SLK2.8, LSK8,X26/29
905
CLUTCH. PIN BUSHING HOUSING SIREN
910
CLUTCH HOUSING ENGINE MOUNTING,RIGHT 2-PIN MLK1.2,Y123/1
