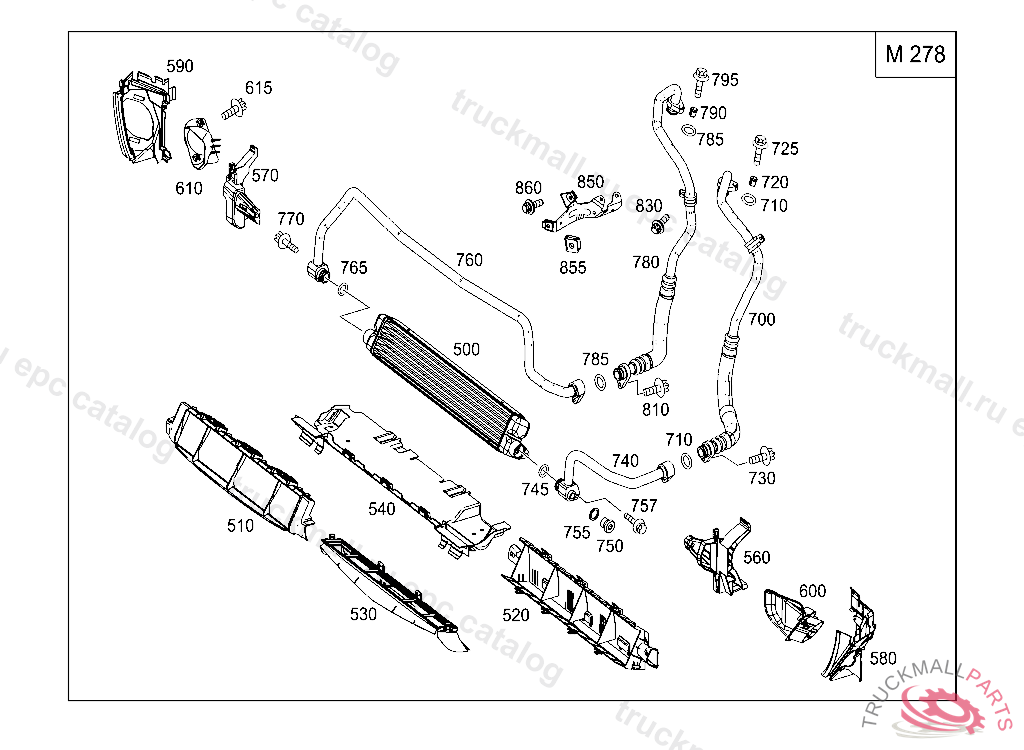

Поз.
Артикул
Описание
500
OIL COOLER FRONT
510
AIR DUCT OIL COOLER AT FRONT
520
AIR DUCT OIL COOLER AT REAR
530
AIR DUCT SEGMENT OIL COOLER BOTTOM, A 03387320111031
540
COVER FOR AIR INTAKE LOWER AIR DUCTING
560
PLUG CONNECTOR HOUSING LEFT
570
PLUG CONNECTOR HOUSING RIGHT
580
COVER FOR AIR INTAKE LEFT
580
COVER FOR AIR INTAKE LEFT
590
COVER FOR AIR INTAKE RIGHT
590
COVER FOR AIR INTAKE RIGHT
600
AIR DUCT LEFT
610
AIR DUCT FRONT RIGHT
615
HEXALOBULAR BOLT. SCREW CLAMP ON BRACKET M 6X35
700
OIL LINE FROM OIL FILTER HOUSING TO SEPARATING POINT, A 20130629
700
OIL LINE FROM OIL FILTER HOUSING TO SEPARATING POINT, A 20130629, Replaced By: A2125001672
710
SEAL RING OIL LINE TO OIL FILTER
720
PILOT BUSHING OIL LINE
725
HEXALOBULAR BOLT DELIVERY LINE TO PUMP M6X25
730
HEXALOBULAR BOLT DELIVERY LINE TO PUMP M6X25
740
OIL LINE CONNECTING POINT TO COOLER
745
SEAL RING OIL LINE TO OIL FILTER
750
SCREW PLUG, FILLING. SCREW PLUG TRANSMISSION CASE REAR COVER
755
SEAL RING CHECK VALVE,CONNECTION "1",4 704213
755
SEAL RINGTO 001 431 72 14
757
HEXALOBULAR BOLT DELIVERY LINE TO PUMP M6X25
760
OIL LINE FROM COOLER TO CONNECTING POINT
765
SEAL RING OIL LINE TO OIL FILTER
770
HEXALOBULAR BOLT DELIVERY LINE TO PUMP M6X25
780
OIL LINE FROM CONNECTING POINT TO OIL FILTER HOUSING, A 20130629
780
OIL LINE FROM CONNECTING POINT TO OIL FILTER HOUSING, A 20130629, Replaced By: A2125001772
780
OIL LINE FROM CONNECTING POINT TO OIL FILTER HOUSING, A 20130629
785
SEAL RING OIL LINE TO OIL FILTER
790
PILOT BUSHING OIL LINE
795
HEXALOBULAR BOLT DELIVERY LINE TO PUMP M6X25
810
HEXALOBULAR BOLT DELIVERY LINE TO PUMP M6X25
830
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
850
BRACKET OIL LINE ATTACHMENT
855
NUT RETAINER. LOCK LEFT AND RIGHT SPOILER AT CENTER PIECE
860
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
