Поз.
Артикул
Описание

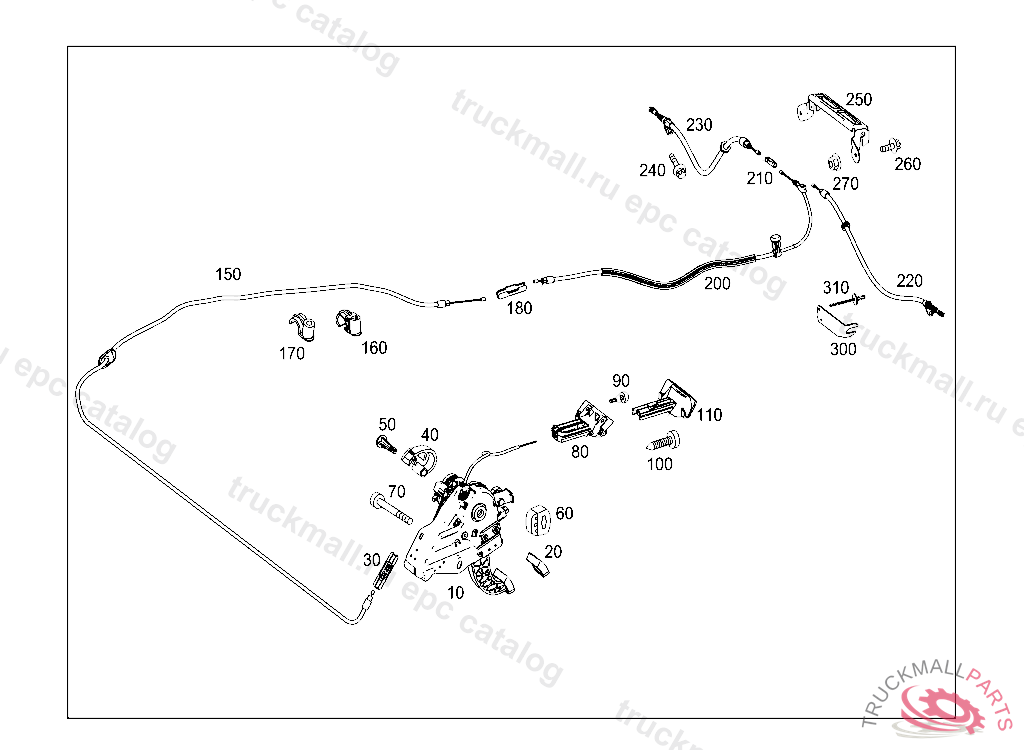

10
FOOT PARKING BRAKE , ATTN.: REPLACE FASTENERS/NOTE WORKSHOP LITERATURE
20
PAD FOOT OPERATED PARKING BRAKE
30
SLEEVE
40
DETENT GREY, COMPARE NEW PART WITH REMOVED PART
50
PIN , FROM MODEL YEAR'96
60
STOP , A 290167 EXCEPT CODE 805 ALSO INSTALLED IN VEHICLE TO A 290166 WITH CODE 806
70
SCREW W SOCKET DRIVE FASTENING, FOOT-OPERATED PARKING BRAKE M8X35
70
HEXALOBULAR BOLT FASTENING, FOOT-OPERATED PARKING BRAKE M8X30, THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0119905804
80
GUIDE
90
STOP ARMREST
100
FILLISTER HEAD SCREW COVER AT INSTRUMENT PANEL BELOW STEERING COLUMN M5X18, A 04666620120228 A 08334820121218
100
TAPPING SCREW LIGHTING UNIT TO LATERAL STIFFENING 4.8X25
110
HANDLE RELEASE HANDLE
150
BRAKE CABLE FRONT
160
CLAMP FRONT BRAKE CABLE TO TUNNEL
170
CLAMP
180
CONNECTION PIECE
200
BRAKE CABLE REAR
210
CONNECTION PIECE
220
BRAKE CABLE LEFT
220
BRAKE CABLE LEFT AND RIGHT
220
BRAKE CABLE LEFT, Replaced By: A2124201385
230
BRAKE CABLE LEFT AND RIGHT
230
BRAKE CABLE LEFT, Replaced By: A2124201385
230
BRAKE CABLE LEFT
240
HEXALOBULAR BOLT TORSION BAR TO CARRIER M8X16
250
SUPPORT ON REAR SUBFRAME
260
SCREW BRACKET TO SIDE MEMBER M8X20
270
NUT BRACKET TO BATTERY IMPLEMENT CARRIER M8
300
BRACKET RIGHT, G 07831620130108 A 83849920130108 L 06638520121231 V 00516720121231 L 26231720130428
300
BRACKET RIGHT, G 07831520130108 A 83849820130108 L 06638420121231 V 00516620121231 L 26231620130428
300
BRACKET LEFT, G 07831520130108
310
RIVET BRACKET TO SUBFRAME
