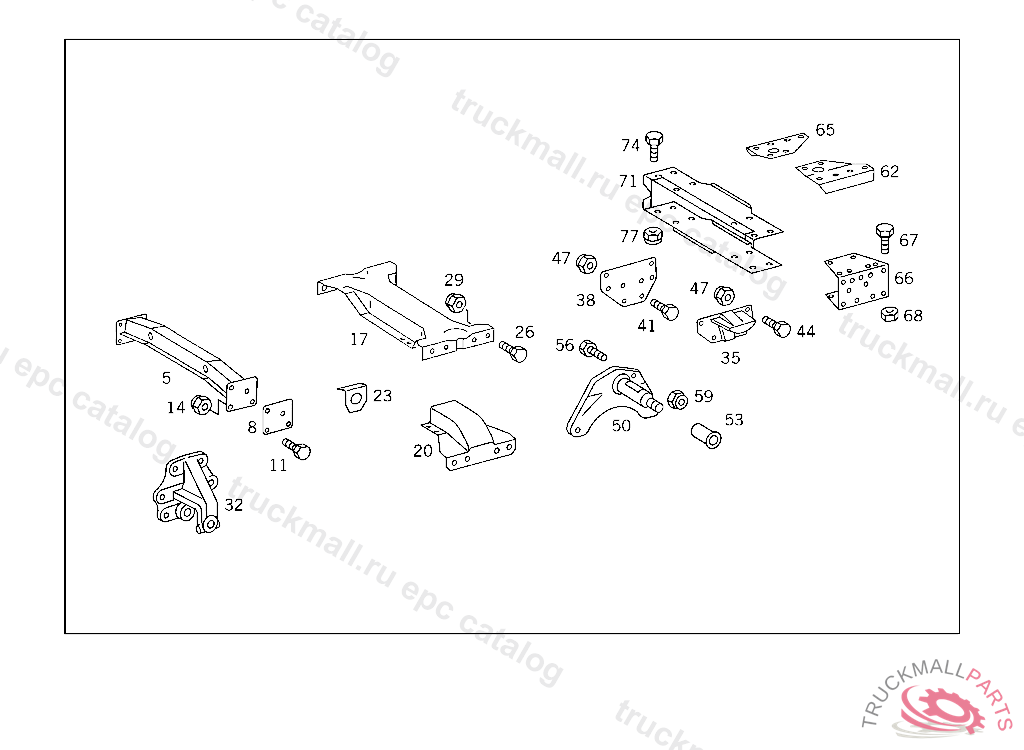

Поз.
Артикул
Описание
5
CROSS MEMBER REAR SHOCK ABSORBERS NO.6
8
MOUNTING PLATE CROSS MEMBER TO SIDE MEMBERS
11
SCREW BRACKET TO RIGHT SIDE MEMBER
14
NUT BRACKET TO SIDE MEMBER
17
CROSS MEMBERNO.4
20
REINFORCEMENT
23
SHIMNO.4,5
26
SCREW BATTERY CASE
26
SCREW GUSSET PLATE TO SIDE MEMBER
29
NUT BRACKET TO BATTERY CASE
29
NUT , Replaced By: N910113014000
32
REAR SPRING BRACKET (REAR SPRING BRACKET),FRONT
35
HELPER SPRING BRACKET REAR LEFT
35
HELPER SPRING BRACKET FRONT RIGHT
35
HELPER SPRING BRACKET FRONT LEFT
35
HELPER SPRING BRACKET REAR RIGHT
38
PLATE HELPER SPRING BRACKET,FRONT
38
PLATE HELPER SPRING BRACKET,REAR
38
PLATE , Replaced By: A3843257254, +001A3843257354
41
SCREW BATTERY CASE
44
SCREW , Replaced By: N308676014012
47
NUT , Replaced By: N910113014000
50
SPRING BRACKET (REAR SPRING BRACKET),REAR
53
BUSHING
53
BUSHING
56
SCREW BRACKET TO SIDE MEMBER M 14X1.5X50,5 543914
56
SCREW MOUNTING TO CONSOLE M 14X55
56
SCREW FRONT SPRING REAR BRACKET TO SIDE MEMBER
59
NUT , Replaced By: N910113014000
62
GUSSET PLATE LEFT TOP
62
GUSSET PLATE BOTTOM LEFT
65
GUSSET PLATE BOTTOM RIGHT
65
GUSSET PLATE RIGHT TOP
67
SCREW GUSSET PLATE TO SIDE MEMBER
71
CROSS MEMBER (REAR CROSS MEMBER)
74
SCREW SUPPORT TO SIDE MEMBER M 12X1.5X30
77
NUT ALTERNATOR TO SUPPORT
