Mercedes A3973237000 -

1214 K 682.081

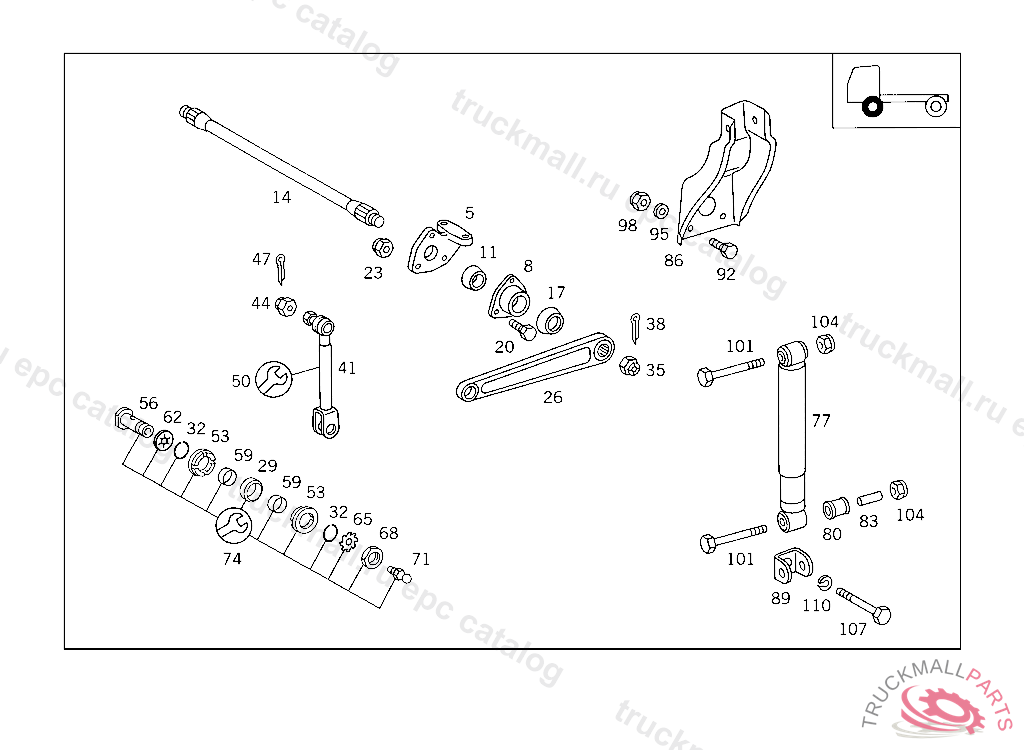

32 SPRINGS AND SUSPENSION - 220 TORSION BAR AND SHOCK ABSORBER,FRONT IL. 1

Поз.
Артикул
Описание
77
A6823237200
SHOCK ABSORBER FRONT
80
A0083230285
RUBBER MOUNTING
83
A0083230150
BUSHING
86
A3843237040
BRACKET LEFT
89
A3833231863
BEARING BRACKET SHOCK ABSORBER,BOTTOM
92
N000961012163
SCREW SUPPORT TO FRAME M12X1,5X35,D 127794
95
N007349013001
WASHER BEARING BRACKET TO FRAME
98
N913004012003
NUT SUPPORT TO SIDE MEMBER
101
N000960016244
SCREW SHOCK ABSORBER TO TOP BRACKET
104
N913004016004
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
107
N000961012160
SCREW CONSOLE TO BRACKET M 12X1.5X25,20 L
110
N000127012201
LOCK WASHER PROPELLER SHAFT TO REAR AXLES I AND II
999
A3973237000
SHOCK ABSORBER FRONT, NOT USED
