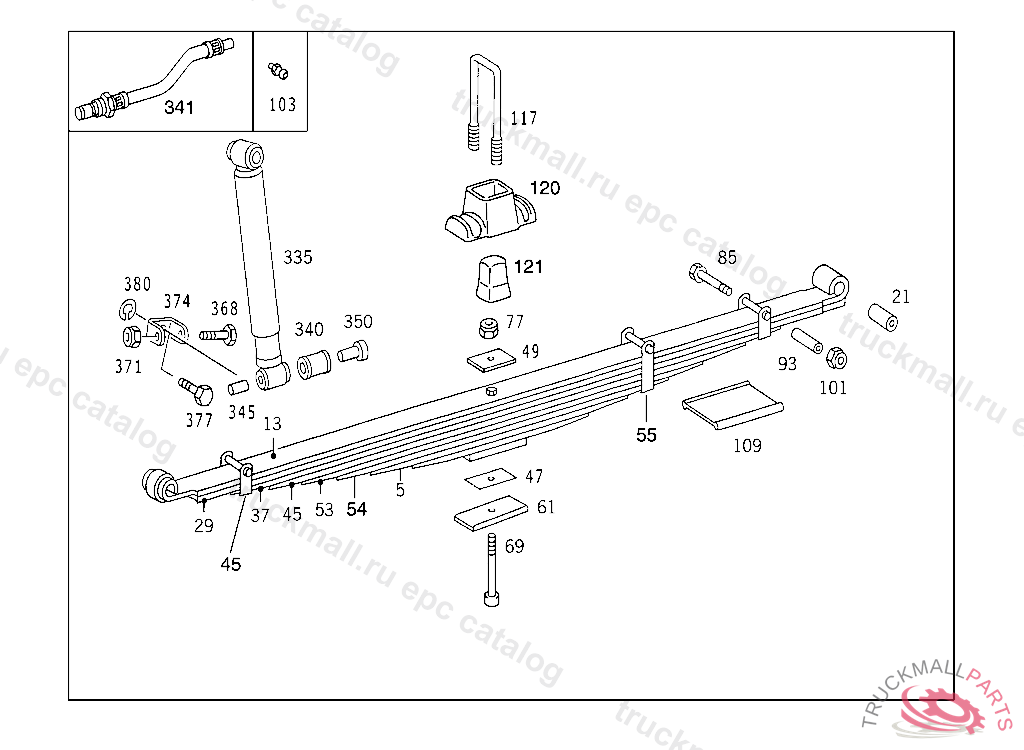

Поз.
Артикул
Описание
5
FRONT SPRING LEFT
5
FRONT SPRING RIGHT
5
FRONT SPRING 8-LEAF
5
FRONT SPRING
5
FRONT SPRING 5-LEAF
5
FRONT SPRING 9-LEAF, ONLY REPLACEABLE BY PAIRS
13
SPRING LEAF NO.1
13
SPRING LEAF PARTS KIT NO. 1 TOA384 320 71 02
13
SPRING LEAFNO.1
13
SPRING LEAFNO.1
21
BUSHING
21
BUSHING
29
SPRING LEAFNO.2
29
SPRING LEAFNO.2
29
SPRING LEAF NO.2
37
SPRING LEAFNO.3
37
SPRING LEAFNO.3
37
SPRING LEAFNO.3
45
SPRING LEAFNO.4
45
SPRING LEAFNO.4
45
SPRING LEAFNO.4
45
SPRING LEAFNO. 4TOA384 320 71 02
47
SPACER
49
SPACER
53
SPRING LEAFNO.5TO 384 320 71 02
53
SPRING LEAFNO.5
54
SPRING LEAFNO.6
54
SPRING LEAFNO.6
54
SPRING LEAFNO.6 TO 384 320 71 02
55
SPRING LEAFNO.7TO 384 320 71 02
61
SHIM
61
SHIM
69
SPRING BOLTM 12X140
69
SPRING BOLTM12X160, TO 682 320 73 02, 74 02
69
SPRING BOLT
69
SPRING BOLTM 12X180 MMTO 695 320 0202
77
NUT , Replaced By: N910113012005
77
NUT SUPPORT TO SIDE MEMBER
85
SCREW SPRING CLAMP TO SPRING LEAF NO.4,NO.7,M 8X95
85
SCREW SPRING CLAMP TO SPRING LEAF NO.3,6
93
SPACER TUBE , Replaced By: A0003213253
101
NUT
101
NUT SPRING CLAMP TO SPRING LEAF
101
NUT LEVER TO SHIFTING SHAFT
103
GREASE NIPPLE PROTECTIVE TUBE
109
PLASTIC SECTION SPRING CLAMP TO SPRING LEAF, ORDER BY THE METER
117
U-BOLT FRONT AXLE TO FRONT SPRINGS
117
U-BOLT FRONT SPRINGS TO FRONT AXLE M18X1,5X210 MM
117
U-BOLT FRONT SPRINGS TO FRONT AXLE M18X1,5X230 MMTO 695 320 02 02
117
U-BOLT , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE ONLY REPLACEABLE BY PAIRS5 999999K 000001 - K 028584, Replaced By: A6793510625, +001A6793250031
117
U-BOLT FRONT SPRINGS TO FRONT AXLE M18X1,5X250 MM
117
U-BOLT FRONT SPRINGS TO FRONT AXLE
117
U-BOLT FRONT SPRINGS TO FRONT AXLE 220 MM
120
PLATE
120
PLATE
121
HELPER SPRINGTO A3453207802 / A 6953200002
121
RUBBER BUFFER
121
HELPER SPRING SPRING STOP TO FRAME BOTTOM SIDE
335
SHOCK ABSORBER FRONT
335
SHOCK ABSORBER FRONT, UP TO IDENT-NO.: LB887910 ALSO INSTALLED IN: LB887915,LB887936,LB888020,LB888023,LB888026* FROM IDENT-NO.: SEE STANDARD MICROFICHE EXCEPT:LB887915,LB887936,LB888020,LB888023,LB888026*
335
SHOCK ABSORBER FRONT, UP TO IDENT-NO.: LB887910 ALSO INSTALLED IN: LB887915,LB887936,LB888020,LB888023,LB888026* FROM IDENT-NO.: SEE STANDARD MICROFICHE EXCEPT:LB887915,LB887936,LB888020,LB888023,LB888026*
335
SHOCK ABSORBER FRONT, UP TO IDENT-NO.: LB887910 ALSO INSTALLED IN: LB887915,LB887936,LB888020,LB888023,LB888026* FROM IDENT-NO.: SEE STANDARD MICROFICHE EXCEPT:LB887915,LB887936,LB888020,LB888023,LB888026*
340
RUBBER MOUNTING
340
RUBBER MOUNTING , UP TO IDENT-NO.: LB887910 ALSO INSTALLED IN: LB887915,LB887936,LB888020,LB888023,LB888026* FROM IDENT-NO.: SEE STANDARD MICROFICHE EXCEPT:LB887915,LB887936,LB888020,LB888023,LB888026*
341
BRAKE HOSE FROM FITTING TO LEFT COMBINATION CYLINDER,CONNECTION: "11"
341
BRAKE HOSE FROM RELAY VALVE TO COMBINATION CYLINDER
341
BRAKE HOSE FROM FITTING TO LEFT COMBINATION CYLINDER,CONNECTION: "11"
341
BRAKE HOSE FROM RELAY VALVE TO COMBINATION CYLINDER
345
BUSHING
345
SPACER TUBE , UP TO IDENT-NO.: LB887910 ALSO INSTALLED IN: LB887915,LB887936,LB888020,LB888023,LB888026* FROM IDENT-NO.: SEE STANDARD MICROFICHE EXCEPT:LB887915,LB887936,LB888020,LB888023,LB888026*
350
RUBBER MOUNTING , UP TO IDENT-NO.: LB887910 ALSO INSTALLED IN: LB887915,LB887936,LB888020,LB888023,LB888026* FROM IDENT-NO.: SEE STANDARD MICROFICHE EXCEPT:LB887915,LB887936,LB888020,LB888023,LB888026*
368
SCREW SHOCK ABSORBER TO LOWER BEARING BRACKET
368
SCREW SHOCK ABSORBER BEARING BRACKET TO FRAME
371
NUT ALTERNATOR TO SUPPORT
371
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
374
BEARING BRACKET SHOCK ABSORBER,BOTTOM
377
SCREW BEARING BRACKET TO FRONT AXLE
380
LOCK WASHER FITTING TO BRACKET
999
SPACER AT REAR AXLE
999
STOP ,W186703
999
SCREW SHOCK ABSORBER TO CROSS MEMBER
999
SCREW STOP BUFFER TO FRAME
999
SCREW GUSSET PLATE TO SIDE MEMBER
999
SHOCK ABSORBER ,B 967304
999
MOUNTING PLATE CROSS MEMBER TO SIDE MEMBERS
999
CROSS MEMBER REAR SHOCK ABSORBERS NO.6
999
SCREW SHOCK ABSORBER TO BOTTOM BRACKET
999
SHOCK ABSORBER REAR
999
SHOCK ABSORBER
999
BRACKET RIGHT SHOCK ABSORBER
999
BRACKET LEFT SHOCK ABSORBER
999
SHOCK ABSORBER
