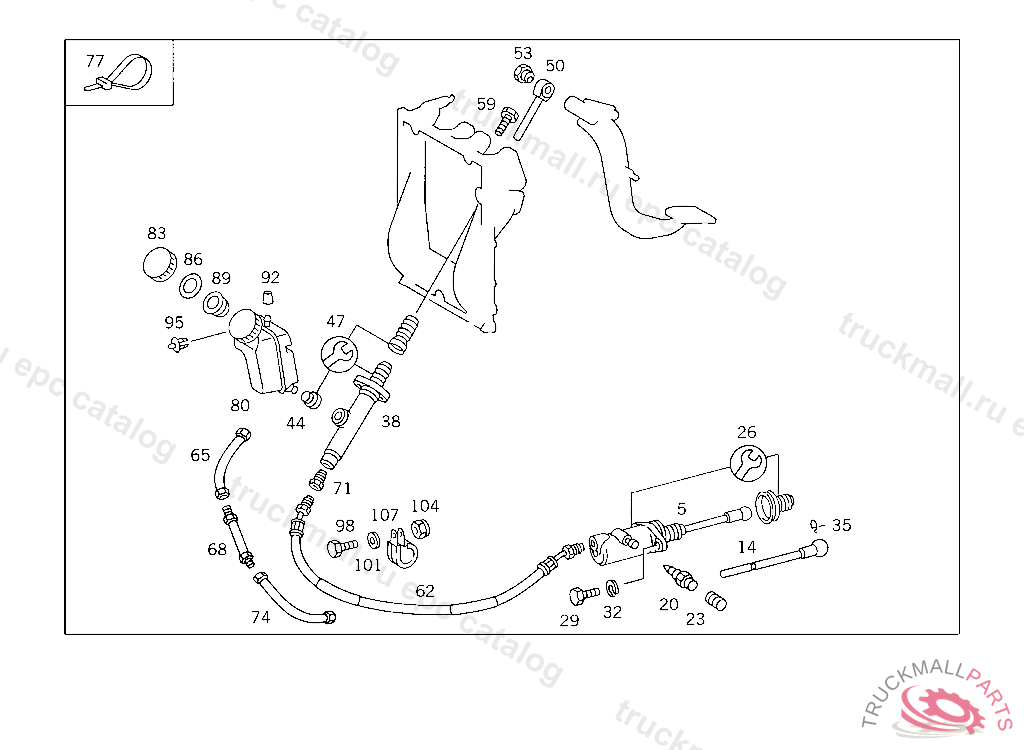

Поз.
Артикул
Описание
5
SLAVE CYLINDER , Replaced By: A3842957307, +001A3842907939
5
SLAVE CYLINDER , Replaced By: A3842957107
5
SLAVE CYLINDER CLUTCH ACTUATION
5
SLAVE CYLINDER CLUTCH ACTUATION
14
ROD TO 384 295 71 07,002 295 04 07,94 07
14
ROD TO 384 295 73 07
20
BLEEDER VALVE , Replaced By: A0004310265
23
PROTECTIVE CAPTO 002 295 04 07
26
REPAIR KIT CLUTCH SLAVE CYLINDER
26
REPAIR KIT , Replaced By: A0002901611
26
REPAIR KIT CLUTCH SLAVE CYLINDER TO 0012959407,3452957007,3842957107
29
SCREW , Replaced By: N304017010002
32
LOCK WASHER FUSE
35
CIRCLIP POWER CYLINDER TO THROTTLE VALVE LEVER
38
MASTER CYLINDER , Replaced By: A0012959706
44
PLUG , Replaced By: A0009971186
47
CYLINDER. REPAIR KIT CLUTCH MASTER CYLINDER,5 366604
50
ROD CLUTCH MASTER CYLINDER,5 366604
53
BUSHING PISTON ROD TO CLUTCH PEDAL
59
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
62
PIPE FROM CLUTCH MASTER CYLINDER TO CLUTCH SLAVE CYLINDER,K 032902N 820661
65
LINE CLUTCH SLAVE CYLINDER,B 972370
68
LINE FROM HOSE TO HOSE,B 972370
71
UNION SCREW
74
HOSE , Replaced By: A6932950335
74
HOSE FROM HYDRAULIC HOSE TO CLUTCH SLAVE CYLINDER
74
HOSE FROM HYDRAULIC HOSE TO CLUTCH SLAVE CYLINDER
74
HOSE FROM LINE AT CLUCTH MASTER CYLINDER TO LINE AT CONNECTOR,B 972370
74
HOSE CLUTCH HOSE
77
LOOM TIE AIR INTAKE HOSE TO CLAMP
80
RESERVOIR EXPANSION TANK
83
LOCKING CAP
86
SEAL RING
89
STRAINER
92
CAP RESERVOIR DE-AERATION
95
RIVET RESERVOIR TO FIRE WALL
98
SCREW BATTERY POS. CABLE TO BRACKET,PB004444
104
NUT PUMP TO BRACKET
107
CLAMP DELIVERY AND SUCTION LINES TO FRAME 12/15
107
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
107
CLAMP DELIVERY AND SUCTION LINES TO FRAME 12/15
999
SCREW PISTON ROD TO CLUTCH PEDAL
