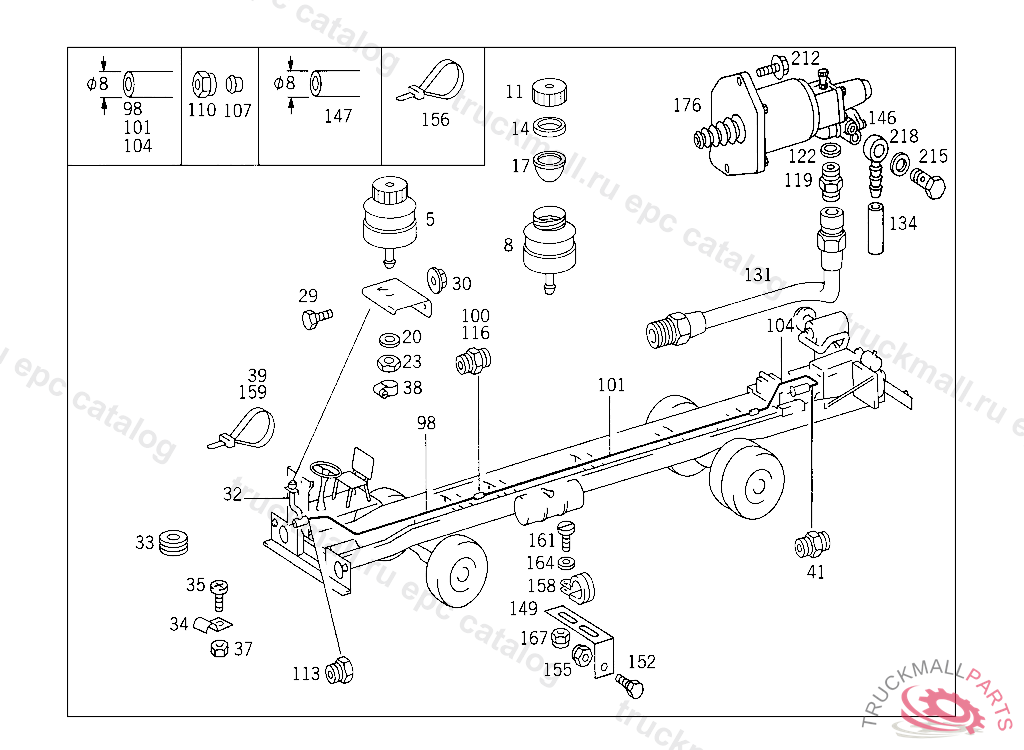

Поз.
Артикул
Описание
5
RESERVOIR (RESERVOIR)
5
RESERVOIR , Replaced By: A3504317102
8
RESERVOIR WITH LOCKING CAP
11
FILLER CAPTO A 688 431 00 02
11
FILLER CAP
14
SEAL RING
17
STRAINER
20
WASHER
23
NUT FRONT SPRINGS WITH TORSION BAR TO FRONT AXLE
29
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
29
SCREW BATTERY POS. CABLE TO BRACKET,PB004444
30
NUT AT FILTER BRACKET
30
NUT SPRING-LOADED PUSH ROD
32
BRAKE HOSE , Replaced By: A6889978282
33
GROMMET ,D 314239
34
CLAMP ELECTRIC CABLE TO STEERING COLUMN BRACKET
35
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
35
SCREW SIDE MARKER LAMP
37
HEX. NUT M 5 DIN 934-5 S. NUT PLUG SOCKET TO FRAME
37
NUT RELAY TO BRACKET M5
98
LINE FROM MASTER CYLINDER TO CONNECTOR I
100
FITTING
100
ADAPTER FITTING
100
FITTING DOUBLE FITTING,012797
101
LINE FROM CONNECTOR II TO CONNECTOR III
101
LINE FROM CONNECTOR I TO CONNECTOR II,010628
101
LINE FROM CONNECTOR I TO CONNECTOR II,010627
104
LINE FROM CONNECTOR TO CLUTCH SLAVE CYLINDER, D 007186
104
LINE CLUTCH BOOSTER,CONNECTION: 1-4, D 007187
104
LINE FROM CLUTCH HOSE TO CONNECTOR,010627
107
GLAND LINE CONNECTION
107
GLAND , Replaced By: A0019901667
110
UNION NUT LINE CONNECTION
110
UNION NUT
113
ROHRVERSCHRAUBUNG EM. UNION SCREW LINE MOUNTING
116
CONNECTION FITTING ,880809
116
FITTING , Replaced By: A0039978972
119
FITTING CLUTCH HOSE 1-4, D 007187
122
SEAL RINGTO 000 553 03 05,000 553 18 05,
131
HOSE CLUTCH HOSE
131
HOSE FROM HYDRAULIC HOSE TO CLUTCH SLAVE CYLINDER
134
PLASTIC PIPE AERATION, ORDER BY THE METER
134
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
146
BANJO UNION HOSE WIDTH, / I.D., 6/16 MM
146
BANJO UNION
156
LOOM TIE LINE MOUNTING 280 MM
156
CABLE TIE BRANCH-OFF LINE FASTENING FOR RPM SENSOR
158
CLAMP LINE MOUNTING
158
CLAMP ,K 147121, Replaced By: N000000000319
158
CLAMP DELIVERY AND SUCTION LINES TO FRAME
159
CABLE TIE BRANCH-OFF LINE FASTENING FOR RPM SENSOR
161
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
161
SCREW CAP TO BRACKET
167
NUT PUMP TO BRACKET
167
NUT BRACKET TO FIRE WALL
176
CLUTCH BOOSTERKNORR, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
176
CLUTCH BOOSTER ,5 962907
212
SCREW PIPE CLAMP
212
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
215
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
218
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
218
SEAL RING. SEALING RING , Replaced By: N007603016401
