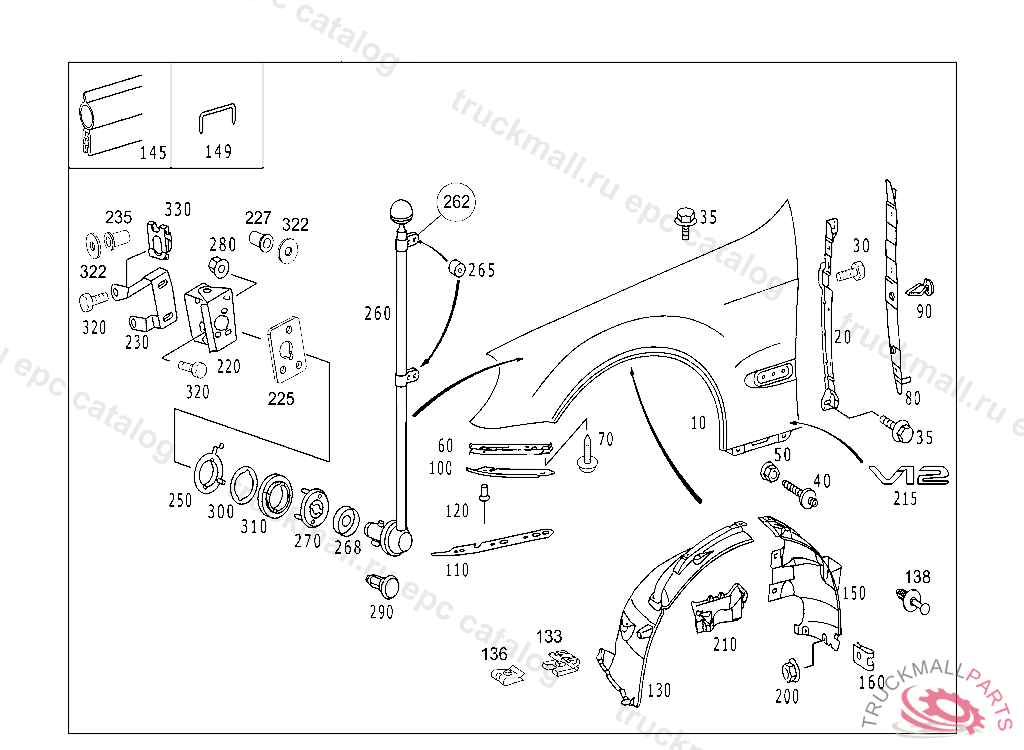

Поз.
Артикул
Описание
10
FRONT FENDER RIGHT
10
FRONT FENDER LEFT
20
BRACKET RIGHT
20
BRACKET LEFT
30
SCREW COVER PLATE TO COVER PLATE M 6 X 12
35
BOLT SUPPORT TO CROSS MEMBER M6X16
40
BOLT FENDER BOTTOM RIGHT MOUNTING M6X20
50
NUT FENDER ON SIDE PANEL M6
60
BRACKET BUMPER ON FENDER, LEFT
60
BRACKET BUMPER ON FENDER, RIGHT
70
TAPPING SCREW
80
COVER ON LEFT A-PILLAR
80
COVER ON RIGHT A-PILLAR
90
CLIP COVERING TO FENDER
100
INTERMEDIATE LAYER RIGHT FENDER
100
INTERMEDIATE LAYER LEFT FENDER
110
INTERMEDIATE LAYER SCUFF GUARD BETWEEN FENDER AND BUMPER, LEFT
110
INTERMEDIATE LAYER SCUFF GUARD BETWEEN FENDER AND BUMPER, RIGHT
120
BLIND RIVET MOUNTING OF CARRIER 4X8
130
COVER BETWEEN WHEELHOUSE & RIGHT FRONT FENDER, TO BE ADAPTED DURING ASSEMBLY
130
COVER BETWEEN WHEELHOUSE & LEFT FRONT FENDER
130
COVER BETWEEN WHEELHOUSE & RIGHT FRONT FENDER
130
COVER BETWEEN WHEELHOUSE & LEFT FRONT FENDER
133
LOCK PARTITION PANEL TO PANELLING
136
LOCK NUT. LOCK
138
RIVET COVERING TO SIDE MEMBER
145
SEAL PARTITION PANEL AND FRONT FENDER
149
CLIP COVER TO PAD
150
COVER FENDER, BELOW, LEFT, ON FRONT WALL PILLAR, TO BE ADAPTED DURING ASSEMBLY
150
COVER FENDER, BELOW, RIGHT, ON FRONT WALL PILLAR
160
LOCK NUT CENTER REINFORCEMENT TO HOUSING CENTER CONSOLE 4.8/0.5-2.5 MM
200
PLASTIC NUT. NUT
210
COVER LEFT
210
COVER RIGHT
220
BRACKET BOTTOM LEFT
220
BRACKET BOTTOM RIGHT
225
PLATE LEFT
227
RIVET NUT. RIVETED NUT GRIP RAIL MOUNTING
230
BRACKET TOP RIGHT
230
BRACKET TOP, LEFT
235
RIVET NUT. RIVETED NUT GRIP RAIL MOUNTING
250
REINFORCEMENT LEFT
250
REINFORCEMENT RIGHT
260
ROD
262
FIXTURE FLAGPOLE
265
BUSHING BRACKET TO ROOF RAIL
268
PAD
270
FIXTURE RIGHT
270
FIXTURE LEFT
280
HEXAGON NUT. NUT ELECTRIC CABLE TO ALTERNATOR
290
FASTENER BUTTON
300
PAD OUTER LEFT FENDER
310
PAD INNER LEFT FENDER
320
SCREW PUMP TO BRACKET
322
WASHER COMPRESSED AIR LINE TO BRACKET
330
NUT RETAINER REAR SEAT BENCH BACKREST TO REAR PANEL
