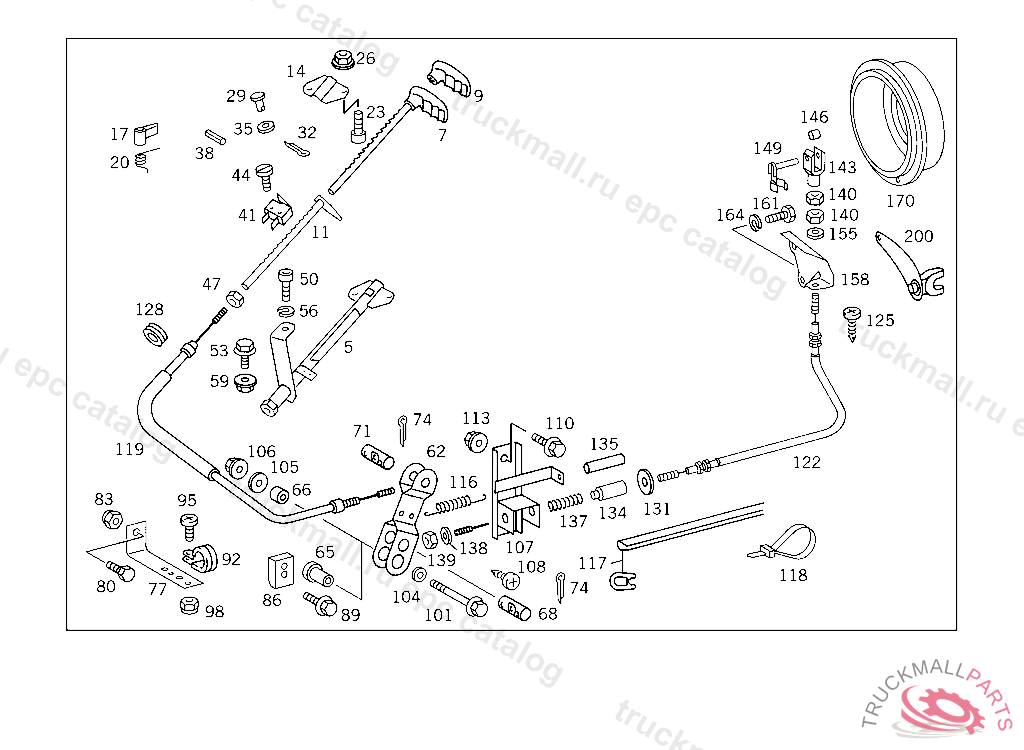

Поз.
Артикул
Описание
5
7
BRAKE LEVER
9
HANDLE
11
ROD ,D 001918
14
BRACKET
17
PAWL ,D 001918
20
SPRING
23
SCREW BRAKE LEVER TO BEARING BRACKET M 8X20
26
NUT BRACKET TO BRACKET
29
PIN ,D 001918
32
COTTER PIN CLAMP TO BATTERY CASE,PB004444
35
WASHER BOOT TO CAB FLOOR
35
WASHER , Replaced By: N000433005304
38
GROOVED PIN
41
SWITCH
44
SCREWM 2X10
47
NUT SPRING-LOADED PUSH ROD
50
SCREW BRAKE LEVER TO BEARING BRACKET M 8X20
53
SCREW BRACKET TO BATTERY/APPARATUS SUPPORT
56
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
59
NUT BRACKET TO BRACKET
62
BRAKE LEVER PARKING BRAKE
66
BUSHING BRAKE CABLE TO BRAKE LEVER
68
PIN BRAKE CABLE TO BRAKE LEVER
71
PIN BRAKE CABLE TO BRAKE LEVER
74
COTTER PIN CONNECTOR TO BRAKE PRESSURE REGULATOR LEVER
77
BRACKET AT SIDE MEMBER
80
SCREW STRUT TO CROSS MEMBER M 10X25
83
NUT CROSS MEMBER TO SIDE MEMBERS
92
CLAMP LINE MOUNTING SA 088202/01
95
SCREW OIL DELIVERY LINE TO BRACKET
98
NUT HEATING PIPE TO BRACKET
101
SCREW BRACKET TO BEARING BRACKET,K 274033
104
WASHER HAND BRAKE LEVER TO SIDE MEMBER
105
WASHER , Replaced By: N009021010209
106
NUT EXHAUST PIPE TO SIDE MEMBER
107
BRACKET AT SIDE MEMBER
110
SCREW , Replaced By: N910105010009
113
NUT EXHAUST PIPE TO SIDE MEMBER
116
SPRING BRAKE LEVER
117
EDGE GUARD SECTION , Replaced By: A0019872272
119
BRAKE CABLE FRONT
128
GROMMET CLUTCH LINE TO BRACKET
131
WASHER HAND BRAKE CABLE
135
BUSHING BRAKE CABLE TO BRACKET
137
SPRING BRAKE CABLE TO BRACKET
138
WASHER MOUNTING USED FOR FRAME CONNECTION PARTS
139
NUT ANGLE TO FRAME
140
NUT
170
BRAKE DRUM PARKING BRAKE, INCLUDED IN RANGE OF DELIVERY OF: A 684 260 42 01, 43 01, 52 01
200
BRAKE LEVER BRAKE SHOE, INCLUDED IN RANGE OF DELIVERY OF: A 684 260 42 01, 43 01, 52 01 INCLUDED IN RANGE OF DELIVERY OF: A 684 260 12 01 / 13 01
999
SPRING BOTTOM, NOT USED
