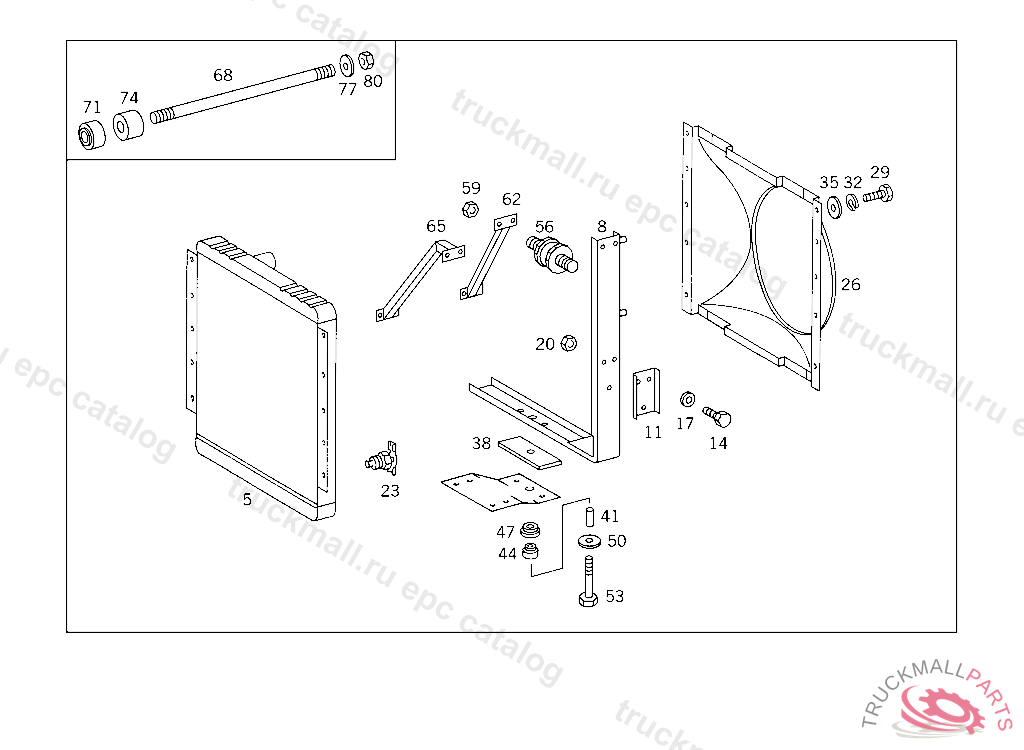

Поз.
Артикул
Описание
5
RADIATOR
8
BRACKET RADIATOR TO FRAME
11
BRACKET RADIATOR TO FRAME
14
PART NAME MISSING SCREW
17
PART NAME MISSING WASHER
20
PART NAME MISSING NUT 1/2-13
23
DRAIN COCK RADIATOR
26
FAN SHROUD
29
PART NAME MISSING BRACKET TO FRONT CROSS MEMBER 5/16-18 X 1 FG8
32
LOCK WASHER LOCK WASHER 5/16-.323 CAD
35
WASHER VALVE TO BRACKET 5/16
38
RUBBER MOUNTING BASE FRAME ON CROSS MEMBER
41
SPACER TUBE BASE FRAME ON CROSS MEMBER
44
RUBBER BUFFER BASE FRAME ON CROSS MEMBER
47
GUIDE BASE FRAME ON CROSS MEMBER
50
PART NAME MISSING WASHER 1/2X1 3/4 FG8
53
PART NAME MISSING SCREW 1/2-13 X 2 3/4 FG8
56
RUBBER BUFFER EXHAUST MUFFLER
59
NUT BRACKET TO RETARDER
62
RADIATOR STRUT RADIATOR MOUNTING
68
RADIATOR STRUT RADIATOR MOUNTING
