Поз.
Артикул
Описание
5

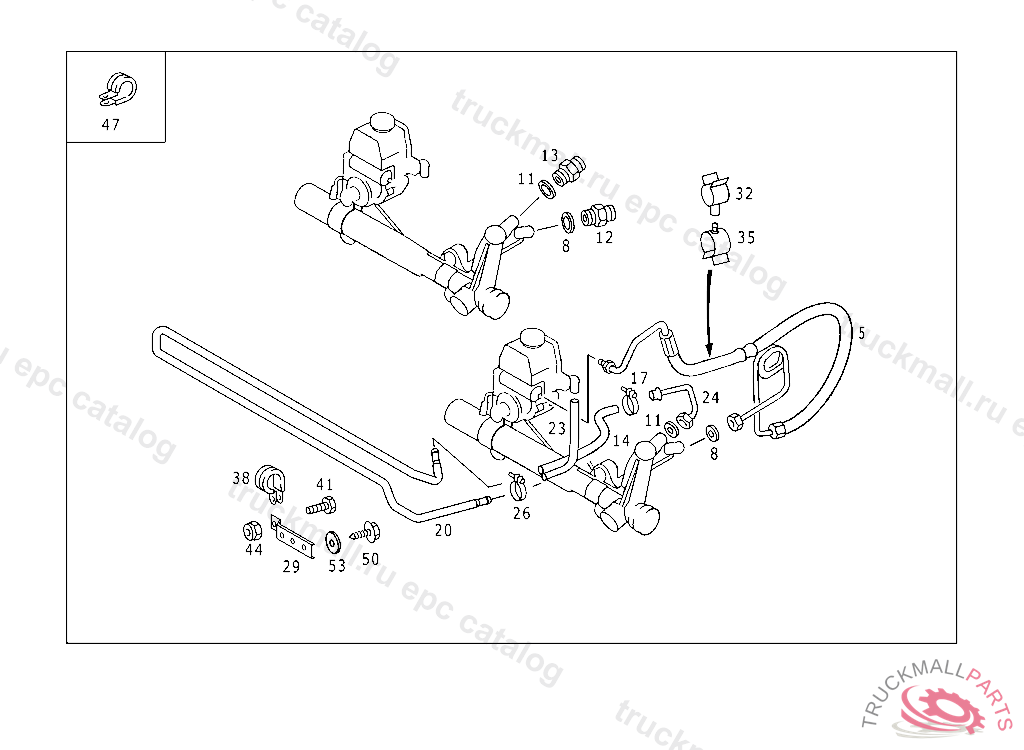

HOSE FROM HYDRAULIC PUMP TO STEERING GEAR
8
SEALING RING. SEAL RING ENGINE BREATHING
11
SEALING RING. SEAL RING DELIVERY LINE TO STEERING
12
FITTING HOSE TO STEERING
13
FITTING. SCREW CONNECTION RETURN LINE TO STEERING
14
HOSE RADIATOR, ORDER BY THE METER
17
CLAMP , Replaced By: A0059972790
20
COOLING PIPE
23
HOSE LOW PRESSURE
24
LINE FROM HYDRAULIC PUMP TO STEERING GEAR
26
CLAMP , Replaced By: A0059972790
29
BRACKET
32
CLAMP , Replaced By: A0005465143
35
CLAMP , Replaced By: A0005465143
38
CLAMP PIPE ON FAN SHROUD
41
SCREW LICENSE PLATE TO BRACKET
44
NUT HEATING PIPE TO BRACKET
47
CLAMP OIL DIPSTICK GUIDE TUBE TO BRACKET
50
TAPPING SCREW. SHEET METAL SCREW BRACKET TO CAB
50
TAPPING SCREW. SHEET METAL SCREW CONDENSER TO RADIATOR
53
WASHER LINE MOUNTING 5,3
