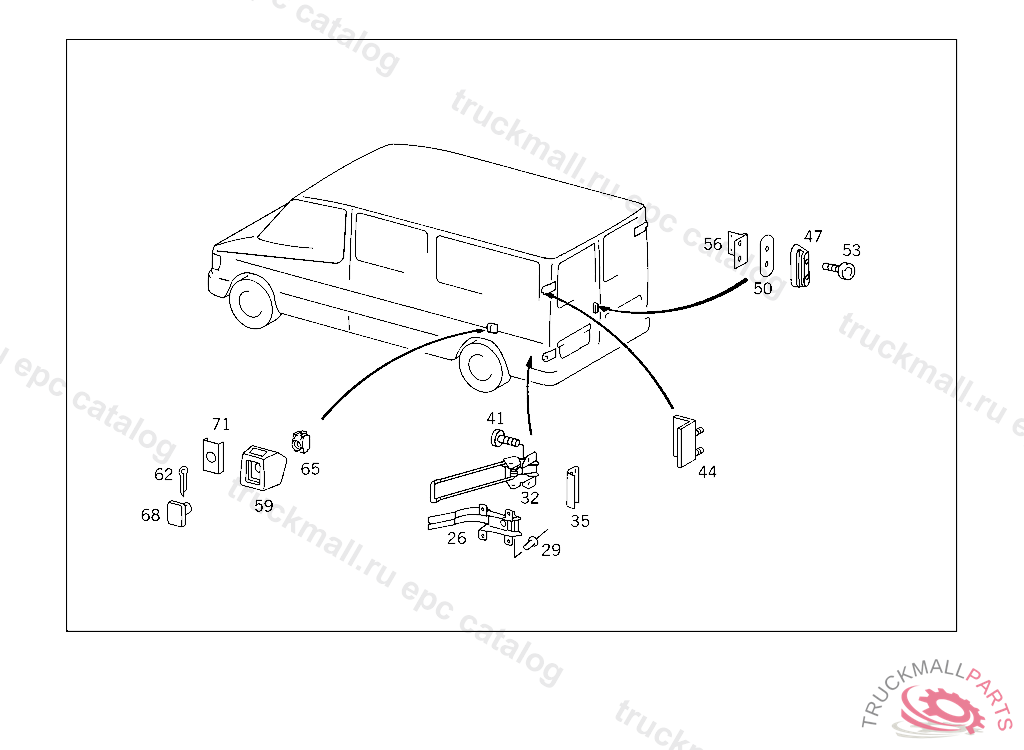

Поз.
Артикул
Описание
26
BRACKET AT DOOR PILLAR
29
RIVET , Replaced By: N910003004135
32
BRACKET SWIVELLING AREA, 180 DEGREES
32
BRACKET SWIVELLING AREA, 270 DEGREES
35
PLATE
41
SCREW , Replaced By: N000000001149
41
HEXALOBULAR BOLT WIRE CABLE TO BRACKET
41
SCREW MOUNTING PARTS
41
SCREW DOOR CHECK TO DOOR
44
STOP SWIVELLING AREA, 180 DEGREES
47
DOOR CHECK SWIVELLING AREA, 270 DEGREES
50
PAD DOOR CHECK TO DOOR
53
SCREW DOOR CHECK TO DOOR M5X35
53
SCREW DOOR CHECK TO DOOR
56
BRACKET RIGHT, TO BE ADAPTED DURING ASSEMBLY
59
DOOR CHECK ON SIDE PANEL
62
COTTER PIN BRACKET TO SIDE PANEL
65
NUT BRACKET TO SIDE PANEL
68
PLATE
71
PLATE
71
PLATE , Replaced By: A9017660819, +001A9017660076
999
PAD , TO BE PROCURED FROM MBA ONLY
