Поз.
Артикул
Описание

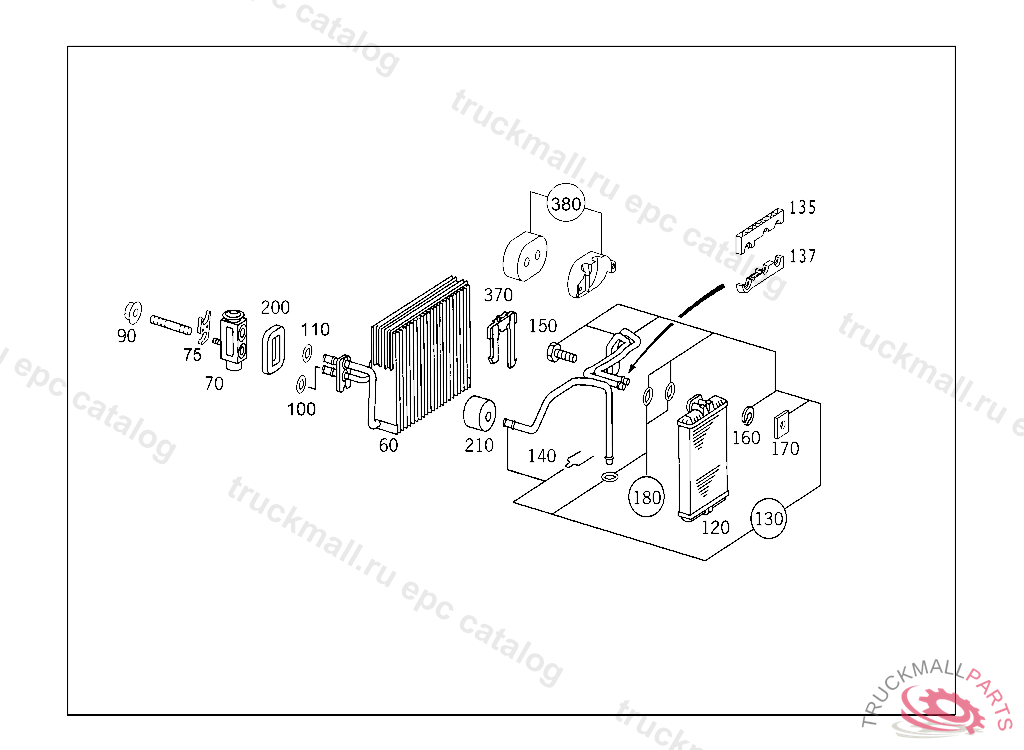

60
EVAPORATOR , A 02163620010824
60
EVAPORATOR , A 02163620010824
70
VALVE PIPE LINE CONNECTION 18MM, A 33977120020418 E 02000020070101
75
RETAINING PLATE EXPANSION VALVE, A 33977120020418 E 02000020070101
90
NUT CLAMP TO BRACKET
100
SEAL RING FROM LIQUID TANK TO T-FITTING
110
O-RING HOSE TO EXPANSION VALVE 17X2
120
HEATER UNIT
130
PIPELINE (PARTS KIT)
130
PIPELINE (PARTS KIT), NO LONGER AVAILABLE
135
SEAL
137
SEAL ON RETURN TUBES TO CENTER NOZZLE CONNECTION
140
SPRING HEAT EXCHANGER PIPES
150
SCREW COVER PLATE TO BRACKET
160
LOCK WASHER BRACKET TO STEERING COLUMN END
170
NUT PUMP TO BRACKET
180
SEAL PARTS KIT
200
SEAL FROM EXPANSION VALVE TO PARTITION PANEL
210
SEAL FEED PIPE TOWARDS FRONT PANEL
370
BRACKET HEAT EXCHANGER FEED PIPE
380
SEAL RETURN PIPE TOWARDS FRONT PANEL
380
SEAL RETURN PIPE TOWARDS FRONT PANEL
