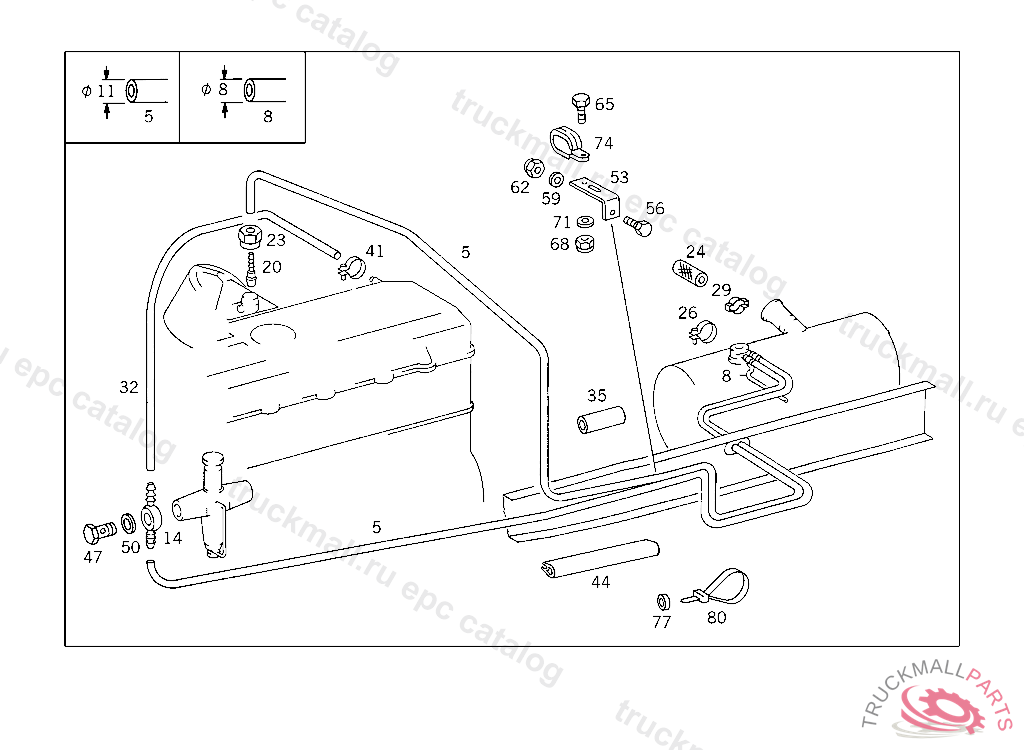

Поз.
Артикул
Описание
5
HOSE FEED & RETURN 8X11MM, ORDER BY THE METER
8
PLASTIC PIPE8X6 MM, ORDER BY THE METER
8
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
14
BANJO UNION
14
BANJO UNION FEED
14
BANJO UNION FROM HOSE TO FEED PUMP
20
LINE RETURN LINE
20
FITTING RETURN
23
NUT. UNION NUT RETURN
24
HOSE FEED LINE AND RETURN LINE
26
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
26
CLAMP , Replaced By: N916017011001
26
LOOM TIE. CLAMP HOSE TO HEATING PIPE
29
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
29
CLAMP , Replaced By: N916017011001
29
CLAMP , Replaced By: N916017011000
32
HOSE , ORDER BY THE METER
32
HOSE , Replaced By: A3849977082, +001A3829907088
35
INSULATING HOSE , ORDER BY THE METER
35
INSULATING HOSE CHECK VALVE,CONNECTION "2"
41
CLAMP LINE MOUNTING
44
EDGE GUARD SECTION AT LEFT SIDE MEMBER 85 MM
44
RUBBER SECTION AT LEFT SIDE MEMBER 85 MM
44
EDGE GUARD SECTION AT LEFT SIDE MEMBER 85 MM
47
HOLLOW SCREW
47
HOLLOW SCREW
53
BRACKET COMPRESSED AIR LINE TO SIDE MEMBER
56
SCREW LINES TO BRACKET
62
NUT BRACKET TO SIDE MEMBER
65
SCREW CLAMP TO BRACKET
68
NUT , Replaced By: N913004006001
71
WASHER PLUG SOCKET TO BRACKET
77
WASHER , Replaced By: A3609902340
77
WASHER BRACKET TO LEFT SIDE MEMBER
80
LOOM TIE , Replaced By: A0019978390
80
LOOM TIE ELECTRIC CABLE MOUNTING
80
LOOM TIE , Replaced By: A3459977390
80
LOOM TIE LINE MOUNTING
999
LOOM TIE LINE MOUNTING
999
LOOM TIE AIR INTAKE HOSE TO CLAMP
999
BRACKET , Replaced By: A3812952440
999
WASHER BRACKET TO CAB REAR PANEL
