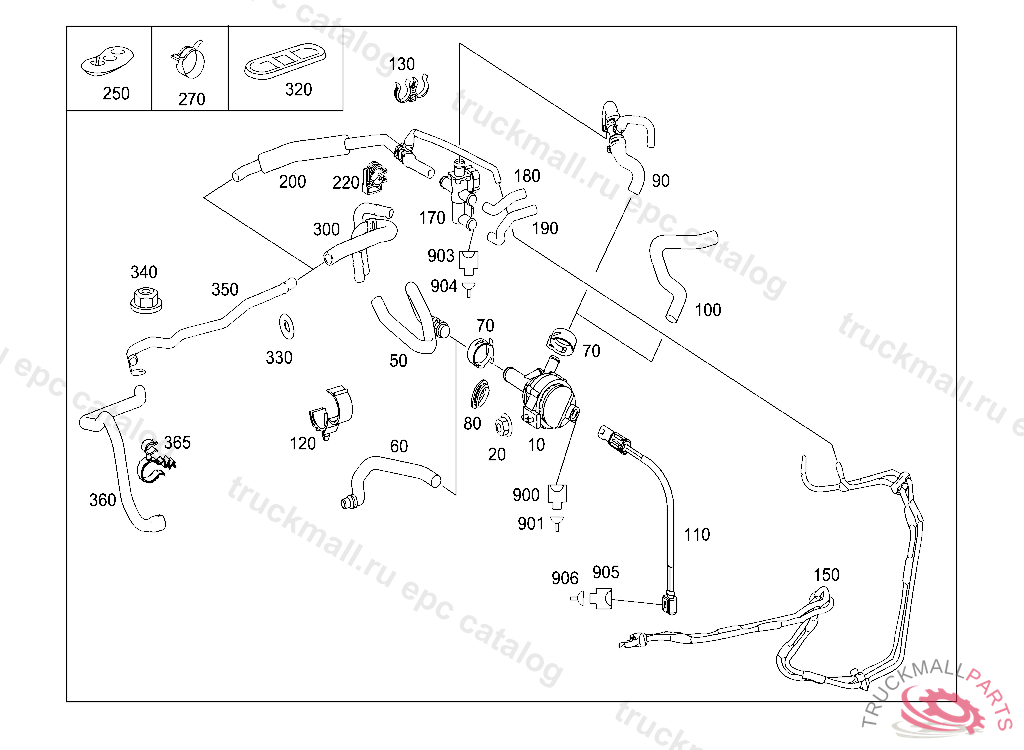

Поз.
Артикул
Описание
10
PUMP
20
HEXAGON NUT. NUT ELECTRIC CABLE TO ALTERNATOR
50
HOSE FEED,BETWEEN ENGINE AND RECIRCULATING PUMP
70
CLAMP14 MM
70
CLAMP25 MM
70
HOSE CLAMP HOSE ATTACHMENT 27 MM
80
GROMMET AT RECIRCULATING PUMP
90
HOSE PUMP TO VALVE WITH T-TYPE DISTRIBUTOR
90
HOSE T-PIECE JUNCTION TO WASHER FLUID HEATER, TO BE ADAPTED DURING ASSEMBLY
90
HOSE PUMP TO THE VALVE
90
HOSE FEED LINE TO CIRCULATION PUMP
110
WIRING HARNESS TO PUMP
120
BRACKET AT BRACKET
130
BRACKET HOSE
150
PIPELINE TO WASHER FLUID HEATER, A 01175020070731808
150
PIPELINE TO WASHER FLUID HEATER
150
PIPELINE TO WASHER FLUID HEATER, A 02041220080626809
170
VALVE CHANGE-OVER VALVE
180
HOSE FROM VALVE TO HEAT EXCHANGER
180
HOSE FROM VALVE TO HEAT EXCHANGER
190
HOSE FROM VALVE TO HEAT EXCHANGER
190
HOSE FROM VALVE TO HEAT EXCHANGER
200
HOSE INTERMEDIATE PIECE TO VALVE
200
HOSE INTERMEDIATE PIECE TO VALVE
200
PIPELINE TO VALVE
200
HOSE INTERMEDIATE PIECE TO VALVE, TO BE ADAPTED DURING ASSEMBLY
200
HOSE INTERMEDIATE PIECE TO VALVE
220
BRACKET HOSE ATTACHMENT
250
GROMMET PIPE LINE TO WHEELHOUSE
250
STOP PLUG BLIND PLUG
270
LOOM TIE HOSE TO RADIATOR AND TO EXPANSION TANK
270
CLAMP14 MM
270
CLAMP25 MM
320
STOP PLUG PRESSURE LINE TO SOLENOID VALVE, A 22780320080331 L 00369520080430
320
PLUG PRESSURE LINE TO SOLENOID VALVE, A 22780420080331 L 00369620080430
330
GROMMET RETURN LINE
340
NUT COVERING TO CAB FIRE WALL
350
PIPELINE RETURN
350
PIPELINE RETURN, Replaced By: A2218305715
360
HOSE RETURN LINE INTERMEDIATE PIECE TO ENGINE
900
RECEPTACLE HOUSING RIGHT POWER WINDOW MOTOR 2-PIN SLK2.8,M10/2
901
GASKET
901
CONTACT SPRING. PLUG SOCKET0,5-1,0
903
PIN BUSHING HOUSING OUTBOARD TEMPERATURE FEELER 2-PIN CODE A,B4,126373
904
CONTACT BUSHING WITH SINGLE-WIRE SEAL 0.5MM2,126373
905
HOUSING. PLUG PLUG, CONNECTOR, DIFFUSOR HEATER
906
SEAL. GASKET YELLOW,V 215932
906
CONTACT PIN WITH SINGLE-WIRE SEAL 0.75-1.0MM2 MLK1.2
