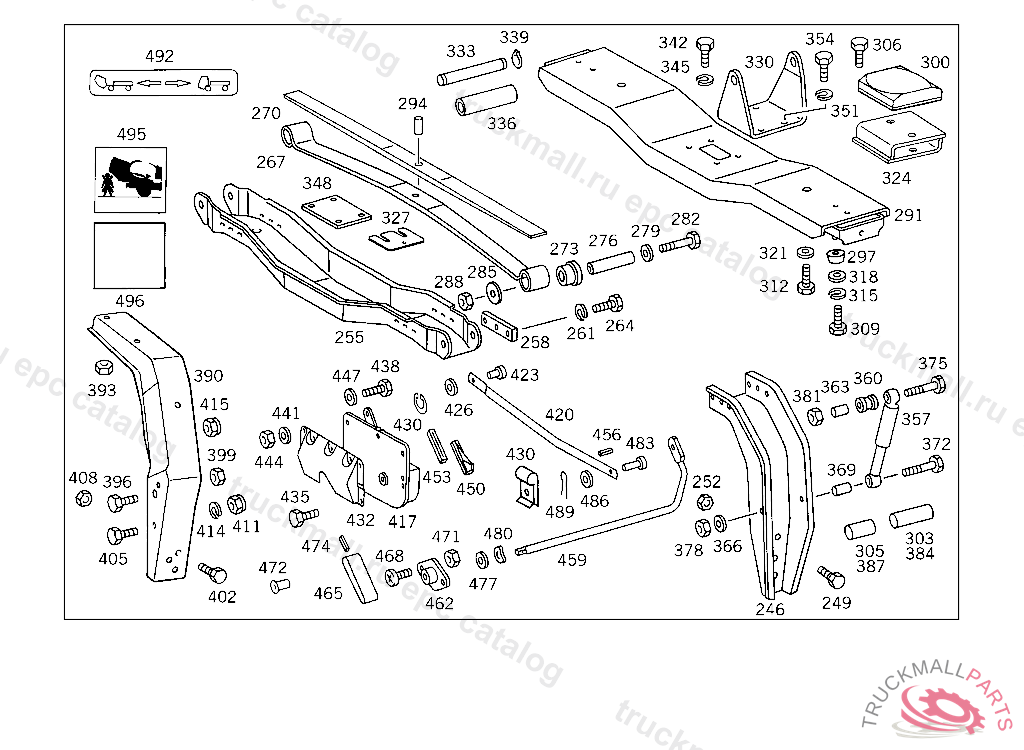

Поз.
Артикул
Описание
246
CONSOLE CONSOLE TO FRAME,4 330046
246
CONSOLE CAB SUSPENSION,REAR
249
SCREW , Replaced By: N308676014020
249
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
252
NUT BRACKET TO SIDE MEMBER
252
NUT , Replaced By: N910113014001
255
STRUT , Replaced By: A6558910224, +002A6558910118
255
STRUT CAB MOUNTING,REAR (LEAF SPRING SUSPENSION)
258
SHIM STRUT TO CONSOLE
261
LOCK WASHER FITTING TO BRACKET
264
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
264
SCREW , Replaced By: N308676012012
267
SPRING , Replaced By: A3878911051
267
SPRING (LEAF SPRING),CAB SUSPENSION
267
SPRING (SPRING LEAF),BOTTOM,CAB REAR SUSPENSION
267
SPRING (LEAF SPRING),CAB SUSPENSION
270
SPRING (SPRING LEAF),TOP,CAB REAR SUSPENSION
273
BUSHING LEAF SPRING
276
TUBE LEAF SPRING, TO BE ADAPTED DURING ASSEMBLY
279
WASHER LEAF SPRING TO STRUT, DISCONTINUED,PART IS NO LONGER REQUIRED
282
SCREW SPRING TO STRUT, MODEL 416,417 FOR USE WITH MEDIUM-LENGTH MERCEDES-BENZ CAB5 215244
285
WASHER COVER PLATE TO FRAME
288
NUT SUPPORT TO SIDE MEMBER
291
RAIL , Replaced By: A6558900122
291
RAIL CAB SUSPENSION,REAR
291
RAIL , Replaced By: A6558900322
291
RAIL CAB SUSPENSION,REAR
291
RAIL (CONNECTING RAIL),4 330046
294
CYLINDRICAL PIN CONNECTING RAIL,4 330046
294
CYLINDRICAL PIN RIGHT FRONT
297
BUFFER , Replaced By: A3878910323
297
BUFFER RAIL STOP
300
MOUNTING CAB SUSPENSION,REAR
303
SPACER TUBE SHOCK ABSORBER TO RAIL
305
SPACER TUBE MOUNTING TO CONSOLE
305
SPACER TUBE SHOCK ABSORBER TO RAIL
306
SCREW BEARING BRACKET TO LEAF SPRING
309
SCREW BUFFER AND MOUNTING TO RAIL
309
SCREW BUFFER AND MOUNTING TO RAIL M 8X20
312
SCREW PIPE CLAMP
312
SCREW , Replaced By: N304017008028
312
SCREW , Replaced By: N304017008021
312
SCREW FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR
315
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
318
WASHER BRACKET TO CROSS MEMBER
321
WASHER EXHAUST MUFFLER TO STRAP
321
WASHER , Replaced By: N000125008443
324
SHIM BUFFER AND MOUNTING TO RAIL
327
SHIM ,4 330046
330
MOUNTING MOUNTING TO CONNECTING RAIL
330
MOUNTING CAB LOCKING MECHANISM
330
MOUNTING CAB MOUNTING,REAR,4 972621
330
MOUNTING , Replaced By: A3878918120
333
PIN BEARING BRACKET,4 972621
333
PIN BEARING BRACKET,4 972621
336
SPACER TUBE BEARING BRACKET
336
SPACER TUBE MOUNTING TO CONNECTING RAIL,4 972622
339
LOCK RING BEARING BRACKET,4 972621
342
SCREW , Replaced By: N000960016251
342
SCREW SPACER TUBE TO MOUNTING
345
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
345
NUT COMBINATION CYLINDER TO BEARING BRACKET
348
PLATE MOUNTING AND RAIL TO LEAF SPRING
351
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
354
SCREW MOUNTING AND RAIL TO LEAF SPRING
354
SCREW , Replaced By: N000933010192
354
SCREW SHIFTING ROD TO SHIFT LEVER
357
SHOCK ABSORBER (VIBRATION ABSORBER),CAB REAR SUSPENSION
357
SHOCK ABSORBER , Replaced By: A0008911805
357
SHOCK ABSORBER CAB SUSPENSION,REAR,4 330046
357
SHOCK ABSORBER (VIBRATION ABSORBER),CAB REAR SUSPENSION
357
SHOCK ABSORBER CAB SUSPENSION,REAR,4 330046
360
RUBBER MOUNTING ,4 330046
360
RUBBER MOUNTING
360
RUBBER MOUNTING , Replaced By: A0008910501
360
RUBBER MOUNTING , Replaced By: A0008910001
363
BUSHING ,4 330046
363
BUSHING , Replaced By: A0008910617
363
BUSHING , Replaced By: A0008910117
363
BUSHING
366
WASHER VIBRATION ABSORBER,4 330046
369
SPACER TUBE VIBRATION ABSORBER TO CONSOLE
372
SCREW VIBRATION ABSORBER TO CONSOLE
372
SCREW14X1.5X148,4 330046
372
SCREW SHOCK ABSORBER TO CONSOLE M 14X130,4 330046
372
SCREW , Replaced By: N000960018072
372
SCREW SHOCK ABSORBER TO CONSOLE
375
SCREW , Replaced By: N000960018142
375
SCREW SHOCK ABSORBER TO CONSOLE M 14X55,4 330046
375
SCREW SHOCK ABSORBER TO RAIL
375
SCREW VIBRATION ABSORBER TO CONNECTOR
378
NUT BRACKET TO SIDE MEMBER
378
NUT , Replaced By: N910113018004
378
NUT INTERMEDIATE LEVER TO STEERING SUPPORT
378
NUT , Replaced By: N910113014001
381
NUT BRACKET TO SIDE MEMBER
381
NUT , Replaced By: N910113014001
384
SPACER TUBE SHOCK ABSORBER TO RAIL
387
SPACER TUBE SHOCK ABSORBER TO RAIL
387
SPACER TUBE MOUNTING TO CONSOLE
390
CONSOLE , Replaced By: A3815000727
390
SUPPORT EXPANSION TANK,4 330046
390
SUPPORT EXPANSION TANK
393
NUT STRAP TO BRACKET
393
NUT , Replaced By: N910113010000
396
SCREW SHOCK ABSORBER TO CONSOLE
396
SCREW VIBRATION ABSORBER TO CONSOLE
399
NUT , Replaced By: N910113018004
399
NUT INTERMEDIATE LEVER TO STEERING SUPPORT
402
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
402
SCREW , Replaced By: N308676014020
405
SCREW CONSOLE TO SIDE MEMBER
408
NUT , Replaced By: N910113014001
408
NUT BRACKET TO SIDE MEMBER
411
NUT SUPPORT TO SIDE MEMBER
414
LOCK WASHER FITTING TO BRACKET
415
NUT STRAP TO BRACKET
415
NUT , Replaced By: N910113010000
417
FASTENER , Replaced By: A0008902389
417
FASTENER , Replaced By: A0008902389
417
FASTENER (CENTRAL LOCK) CAB LOCKING MECHANISM
420
ROD CENTRAL LOCK
420
ROD CENTRAL LOCK,5 002668
420
ROD CENTRAL LOCK
423
PIN PULL TO FASTENER, MODEL 416,417 FOR USE WITH MEDIUM-LENGTH MERCEDES-BENZ CAB DISCONTINUED,PART IS NO LONGER REQUIRED
423
PIN PULL TO FASTENER
426
WASHER BRACKET TO CROSS MEMBER
430
LOCK PULL TO FASTENER
430
LOCK , Replaced By: N912002008003
432
CONSOLE CENTRAL LOCK
435
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
438
SCREW END PIECE TO EXHAUST PIPE M 10X25
441
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
444
NUT , Replaced By: N910113010000
444
NUT STRAP TO BRACKET
447
WASHER , Replaced By: N000125010532
447
WASHER RADIATOR TO RUBBER MOUNTING
450
BRACKET ROD THRU CAB
453
SEAL ROD THRU CAB
456
CLAMPING SLEEVE ROD TO BRACKET
459
LEVER CAB LOCKING MECHANISM,5 132082
459
LEVER CAB LOCKING MECHANISM
459
LEVER CAB LOCKING MECHANISM,5 002668
459
LEVER CAB LOCKING MECHANISM,5 002669
462
BUSHING LEVER TO CAB
465
HANDLE , USED WITH MEDIUM-LENGTH AND LONG MERCEDES-BENZ CABS, Replaced By: A6208910073
465
HANDLE CAB LOCKING MECHANISM
468
SCREW BUSHING AND LEVER TO CAB
471
NUT , Replaced By: N913004008001
471
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
472
RIVET BUSHING AND LEVER TO CAB
474
CLAMPING SLEEVE , Replaced By: N001481005039
474
CLAMPING SLEEVE LEVER MOUNTING
477
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
477
WASHER , Replaced By: N000125015019
480
RETAINING RING LEVER MOUNTING, MODEL 416,417 FOR USE WITH MEDIUM-LENGTH MERCEDES-BENZ CAB5 287988
480
RETAINING RING CAB LOCKING MECHANISM
483
PIN ROD TO LEVER
483
PIN LEVER TO ROD
486
WASHER BRACKET TO CROSS MEMBER
489
COTTER PIN LEVER TO ROD
489
COTTER PIN PULL ROD TO LEVER
489
COTTER PIN ROD TO LEVER
489
COTTER PIN LEVER TO ROD, Replaced By: N000094002060
492
GUMMED LABEL CAB LOCKING MECHANISM
495
GUIDE SIGN DANGER AREA IN FRONT OF TILTED CAB
496
ADHESIVE FOIL GUIDE SIGN
999
PIN , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT
999
MOUNTING SPRING AND STABILIZER,RIGHT
999
MOUNTING SPRING AND STABILIZER,LEFT
999
STABILIZER , Replaced By: A6528900104
999
BUSHING ON TOGGLE LEVER,FOR HYDRAULIC CYLINDER
999
MOUNTING CAB TILTING LEVER
999
WASHER VIBRATION ABSORBER TO BEARING AND TO CAB
999
BUSHING TILTING LEVER
999
MOUNTING CAB
999
MOUNTING CAB, RIGHT
999
MOUNTING CAB,LEFT
999
MOUNTING , Replaced By: A6558910420
999
MOUNTING , Replaced By: A6558910320
999
MOUNTING CAB SUSPENSION,FRONT RIGHT, ON VEHICLES LESS DB CAB 10/20 UP TO IDENT NO. 4 358957, 50/60 UP TO IDENT NO. 4 362764
999
MOUNTING CAB SUSPENSION,FRONT LEFT, ON VEHICLES LESS DB CAB4 358957
999
MOUNTING CAB, RIGHT
999
MOUNTING LEFT SIDE MEMBER
999
LEVER (TILTING LEVER),CAB
999
LEVER (TILTING LEVER),CAB
999
LEVER (TILTING LEVER),CAB
999
LEVER , Replaced By: A3878912756, +002A6208910017
999
WASHER , Replaced By: A4432610076
999
WASHER SHOCK ABSORBER MOUNTING
999
WASHER STABILIZER TO BEARING
999
PIN , NO LONGER AVAILABLE, ORDER RANGE OF DELIVERY, Replaced By: A3875860531
999
CONSOLE , Replaced By: A6208910731
999
BRACKET BUFFER
999
CONSOLE , Replaced By: A6208910631
999
SHIM , Replaced By: A3878910498
999
SHIM CAB TO FRAME
999
SPRING CAB SUSPENSION,FRONT
999
RAIL CAB
999
SHIM , Replaced By: A3878910498
