Поз.
Артикул
Описание
5

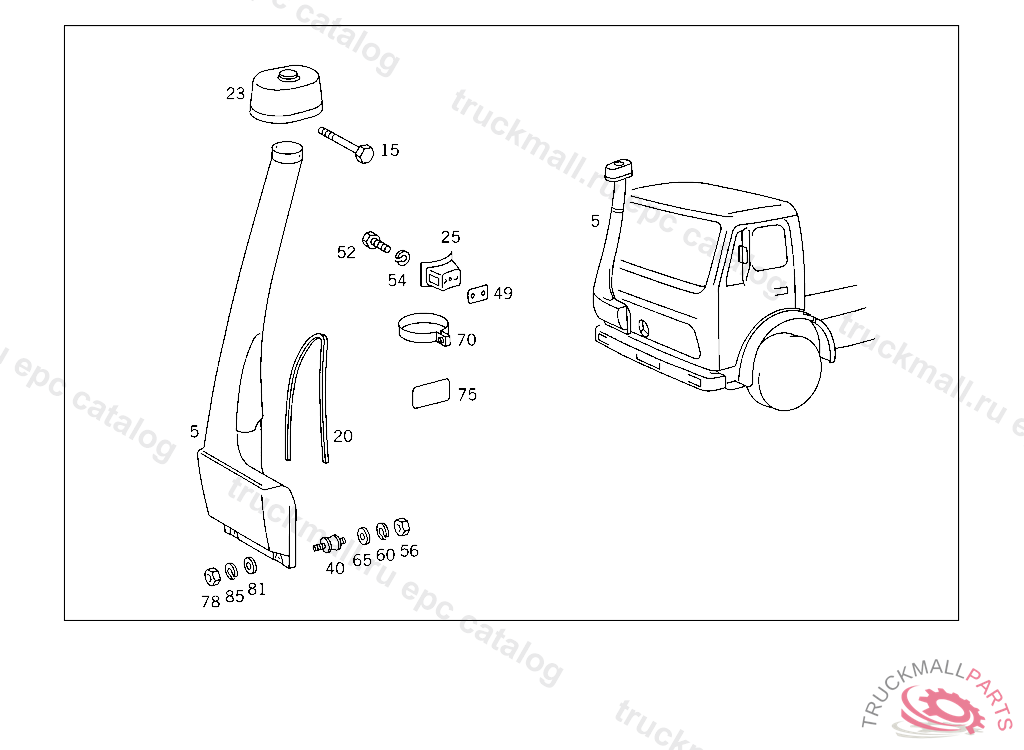

AIR INTAKE PIPE ,4 277318
5
AIR INTAKE PIPE ,4 277317, Replaced By: A3875200801, +001A3875200124, +004N000127006204, +004N000933006103
15
SCREW COVER PLATE TO COVER PLATE M 6 X 12
15
SCREW , Replaced By: N304017006018
20
SEALING RUBBER,. RUBBER SECTION
23
ANTINOISE CAPSULE
25
BRACKET AIR DUCT TO CAB
40
RUBBER MOUNTING AIR DUCT TO CAB
49
SHIM BRACKET TO CAB
52
SCREW COVER PLATE TO BRACKET
54
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
56
NUT
60
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
65
WASHER EXHAUST MUFFLER TO STRAP
65
WASHER , Replaced By: N000125008443
70
STRAP AIR INTAKE
75
SHIM AIR INTAKE
78
NUT
81
WASHER BRACKET TO LEFT SIDE MEMBER
81
WASHER , Replaced By: N009021008213
85
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
999
NUT RETAINER AIR INTAKE PIPE TO CAB, UP TO IDENT NO.4 872645, FROM IDENT NO. SEE GROUP 83
999
PLUG AIR DUCT TO CAB
999
INTERMEDIATE PIECE
999
AIR INTAKE PIPE ,4 277317, Replaced By: A3875200901, +001A3875200124, +004N000127006204, +004N000933006103
999
AIR INTAKE PIPE ,4 277318
999
GASKET , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 897760, Replaced By: A3818310028
999
SHIM , Replaced By: A0009872835
999
PIPE
999
BRACKET AIR DUCT TO CAB
999
BUFFER AIR INTAKE PIPE TO CAB, UP TO IDENT NO.4 872645, FROM IDENT NO. SEE GROUP 83
999
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
999
WASHER COMPRESSED AIR LINE TO BRACKET
