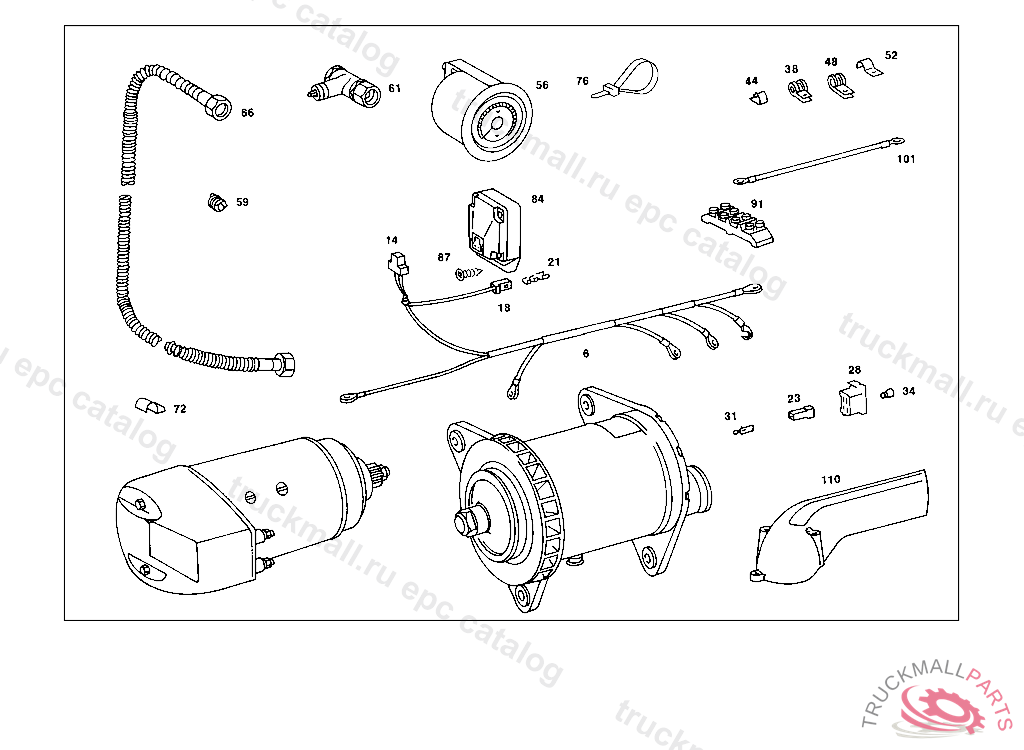

Поз.
Артикул
Описание
6
ELECTRIC CABLE FROM ALTERNATOR TO REGULATOR, FROM CHASSIS 4 486737,ALSO INSTALLED ON 546483-599999
6
ELECTRIC CABLE FROM ALTERNATOR TO REGULATOR
6
ELECTRIC CABLE FROM ALTERNATOR TO REGULATOR
14
PIN BUSHING HOUSING 3-POLE,4 483482
18
PIN BUSHING HOUSING UNIPOLAR
21
SOCKET. PIN BUSHING LESS DETENT,BUT WITH CATCH FOR HOUSING 2,5 MM2
21
PIN BUSHING , Replaced By: A0075458226
23
PIN BUSHING HOUSING UNIPOLAR
28
PIN BUSHING HOUSING 4-POLE
31
PLUG FROM CHASSIS/CAB CONNECTION POINT TO TACHOGRAPH 2.5 MM2
34
CABLE CONNECTOR1.5-6.6 MM2
34
CABLE CONNECTOR6-10 MM2
38
CLAMP LINES TO BRACKET
44
CLIP STARTING MOTOR BRANCH-OFF
48
CLAMP BRAKE HOSE BRACKET
52
CLAMP FUEL LINE TO BRACKET
52
CLAMP , Replaced By: A3129952420
52
CLAMP , Replaced By: A1109950401
56
TACHOMETER , FROM CHASSIS 802404
59
SOCKET
61
ANGLE DRIVE , FROM CHASSIS 802404
66
FLEXIBLE SHAFT1950 MM, FROM CHASSIS 802404
72
CLAMP FLEXIBLE SHAFT MOUNTING, FROM CHASSIS 802404
76
LOOM TIE LINE MOUNTING
84
REGULATOR AND CUT-OUT TRANSISTOR,4 483482
87
SHEET METAL SCREW COVER PLATE TO COVER PLATE
91
CABLE CONNECTOR 4-POLE
101
ELECTRIC CABLE
110
AIR INTAKE PIPE
999
PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2,5 MM2
999
CLAMP , Replaced By: N916016015202
999
CLAMP , Replaced By: N916016018201
999
REGULATOR AND CUT-OUT , Replaced By: A0021540506
999
PIN BUSHING HOUSING 4-POLE
999
LOOM TIE LINE MOUNTING 280 MM
999
AIR INTAKE PIPE AIR INTAKE TO ALTERNATOR
999
AIR INTAKE PIPE
999
AIR INTAKE PIPE
999
ELECTRIC CABLE FROM REGULATOR TO PLUG CONNECTION AT CAB,4 483482
999
BRACKET ALTERNATOR BRANCH-OFF
999
CLAMP CABLE HARNESS MOUNTING
999
SCREW CLAMP MOUNTING M 6X16
999
SCREW , Replaced By: N007985005175
999
SCREW BATTERY CABLE MOUNTING AND MAIN CABLE HARNESS MOUNTING M 6X60
999
SCREW , Replaced By: N304017006020
999
SCREW , Replaced By: N304017008021
999
SHEET METAL SCREW GEAR INDICATOR TO INSTRUMENT PANEL
999
SCREW
999
SCREW HOOK TO BRACKET
999
SCREW , Replaced By: N000000001146
999
BULB TELL-TALE LAMP
999
SCREW LICENSE PLATE TO BRACKET
999
SCREW PIPE CLAMP
999
NUT , Replaced By: N304032005005
999
NUT IN CASE OF SUBSEQUENT INSTALLATION
999
NUT
999
LOCK WASHER BRACKET TO STEERING COLUMN END
999
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
999
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
999
NUT PUMP TO BRACKET
999
NUT , Replaced By: N913004006001
999
CLAMP , Replaced By: N916016010211
999
CLAMP , Replaced By: N000000001045
999
CLAMP LINE MOUNTING
