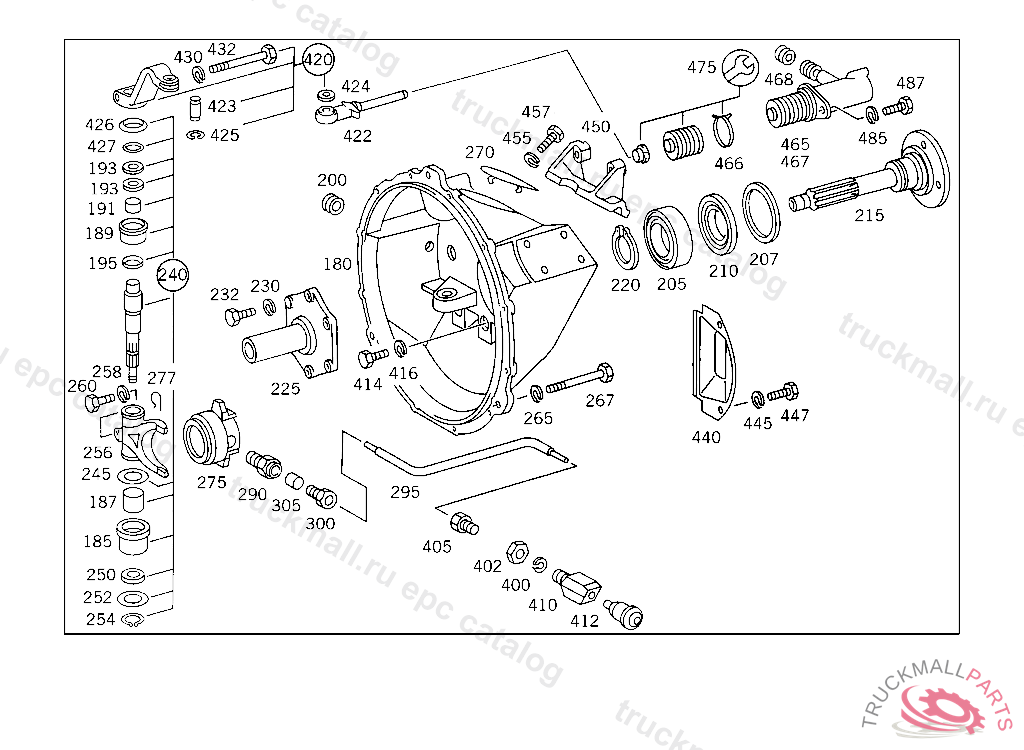

Поз.
Артикул
Описание
180
HOUSING BELL HOUSING WITH BUSHINGS
180
HOUSING , THE OLD ENGINE SUPPORTS CAB STILL BE USED WHEN REBORTED FROM 17 MM TO 19 MM4 743985, Replaced By: A3972500305, +001A6202420601, +001A6202420701, +004N000960018027, +004N000960018107
180
HOUSING ,4 7439865 285575, Replaced By: A6202501205, +001A6202500155
185
BUSHING RELEASE SHAFT,BOTTOM
187
BUSHING RELEASE SHAFT,BOTTOM 24X27 MM
189
BUSHING ,4 401411, Replaced By: A3852510450, +001A0119978846
189
BUSHING ,5 285575, Replaced By: A6202510050, +001A6202500155, +001A0099971547
189
BUSHING RELEASE SHAFT,TOP
191
BUSHING RELEASE SHAFT,TOP 35X39 MM
193
SEAL RING RELEASE SHAFT,TOP 40X52X7 MM
193
SEAL RING RELEASE SHAFT,BOTTOM 40X52X11 MM
193
SEAL RING RELEASE SHAFT,TOP
195
COVER PLATE RELEASE SHAFT,TOP
200
PLUG BELL HOUSING
200
PLUG BELL HOUSING
240
SHAFT , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IM REPAIR KIT, Replaced By: A3895860025
240
SHAFT , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 285575, Replaced By: A3852500014
240
REPAIR KIT , Replaced By: A3892500014
240
SHAFT (PARTS KIT),RELEASE SHAFT
245
WASHER AS REQUIRED 1.3 MM
245
WASHER AS REQUIRED 1.00 MM
245
WASHER AS REQUIRED 1.20 MM
245
WASHER AS REQUIRED 0.80 MM
250
SEAL RING BOTTOM
252
SPACER WASHER RELEASE SHAFT,BOTTOM
254
LOCK RING RELEASE SHAFT,BOTTOM
256
RELEASE LEVER CLUTCH ACTUATION
256
RELEASE LEVER , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 758189, Replaced By: A6202540108
258
LOCK WASHER FITTING TO BRACKET
260
SCREW , Replaced By: N000933012102
260
SCREW , Replaced By: N304017012018
265
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
267
SCREW RADIATOR M 10X45
270
COVER BELL HOUSING,4 743985
275
RELEASE BEARING CLUTCH ACTUATION
275
RELEASE BEARING CLUTCH ACTUATION
275
RELEASE BEARING , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 758189, Replaced By: A0002507415
275
RELEASE BEARING , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 758189, Replaced By: A0002507415
277
SPRING RELEASE BEARING TO RELEASE LEVER
290
SCREW-IN FITTING RELEASE COLLAR LUBRICATION
295
HOSE RELEASE COLLAR LUBRICATION 220 MM
295
HOSE , Replaced By: A3205730036
300
UNION SCREW RELEASE COLLAR LUBRICATION
305
DOUBLE TAPER RING RELEASE COLLAR LUBRICATION
400
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
402
NUT RELEASE BEARING LUBRICATION
402
NUT , Replaced By: N308675014000
402
NUT , Replaced By: N308675014002
405
SCREW-IN FITTING RELEASE COLLAR LUBRICATION
410
GREASE NIPPLE RELEASE COLLAR LUBRICATION
410
INTERMEDIATE PIECE , 4 117172, Replaced By: A3872510108, +001N003411002001
410
INTERMEDIATE PIECE ,5 190179, Replaced By: A6209970088, +001A6209880135
412
GREASE CUP ,5 190179, Replaced By: A6209880135, +001A6209970088
412
GREASE CUP RELEASE BEARING LUBRICATION, 4 117172
412
CAP RELEASE BEARING LUBRICATION
414
SCREW , Replaced By: N308676018010
416
LOCK WASHER BELL HOUSING TO TRANSMISSION
420
LEVER ,4 601609, Replaced By: A6202900534, +001A0009966440
420
LEVER (PARTS KIT),CLUTCH ACTUATION
422
ROD END CLUTCH ACTUATION
423
PIN CLUTCH ACTUATION
424
SEAL RING CLUTCH ACTUATION
424
SEAL RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0019972141
425
LOCK RINGTO 000 553 37 01,000 553 39 01,
426
WASHER , Replaced By: A3852540576, +002A0029972948
426
WASHER , Replaced By: A6202540176
426
WASHER LEVER TO RELEASE SHAFT,5 285575
427
SEAL RING LEVER TO RELEASE SHAFT,5 285575
430
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
432
SCREW , Replaced By: N304017010030
432
SCREW , Replaced By: N304017010053
440
PLUG BELL HOUSING
440
COVER PLATE , Replaced By: A3852510210
440
COVER PLATE , THE OLD PART MUST NO LONGER BE INSTALLED THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A3972510083, +002A0002510183
440
PLUG BELL HOUSING
445
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
447
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
447
SCREW , Replaced By: N304017008016
450
BRACKET , Replaced By: A3072950840
450
BRACKET , Replaced By: A3072950840
450
BRACKET CLUTCH ACTUATION
455
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
457
SCREW , Replaced By: N304017010002
457
SCREW BRACKET TO SIDE MEMBER
465
SLAVE CYLINDER CLUTCH ACTUATION
465
SLAVE CYLINDER ,4 601609, Replaced By: A0012950307, +001A6202900534, +001A0009966440
465
SLAVE CYLINDER , Replaced By: A0012955307
465
SLAVE CYLINDER CLUTCH ACTUATION
465
SLAVE CYLINDER , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 669429, Replaced By: A0022950407
466
LOCK
467
VALVE CLUTCH SLAVE CYLINDER
467
VALVE , Replaced By: A3075530107
468
PROTECTIVE CAP , Replaced By: A0004210887
468
PROTECTIVE CAP ,5 962906
468
PROTECTIVE CAP , Replaced By: A0004210887
468
PROTECTIVE CAP , Replaced By: A0004217187
475
REPAIR KIT , Replaced By: A0002900911
475
REPAIR KIT CLUTCH SLAVE CYLINDER
485
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
487
SCREW , Replaced By: N304017010002
487
SCREW BRACKET TO SIDE MEMBER
999
HOUSING
999
PIN CLUTCH SLAVE CYLINDER
999
BOOT , Replaced By: A0005863129
999
BALL PIVOT CLUTCH ACTUATION,4 601609
999
COVER RELEASE SHAFT,TOP
999
GREASE NIPPLE (PARTS KIT) RELEASE BEARING LUBRICATION
999
WASHER , Replaced By: N000125010532
999
WASHER RADIATOR TO RUBBER MOUNTING
999
SNAP RING LEVER TO RELEASE SHAFT,4 601609
999
SECURING CLIP CLUTCH SLAVE CYLINDER TO LEVER,4 601609
